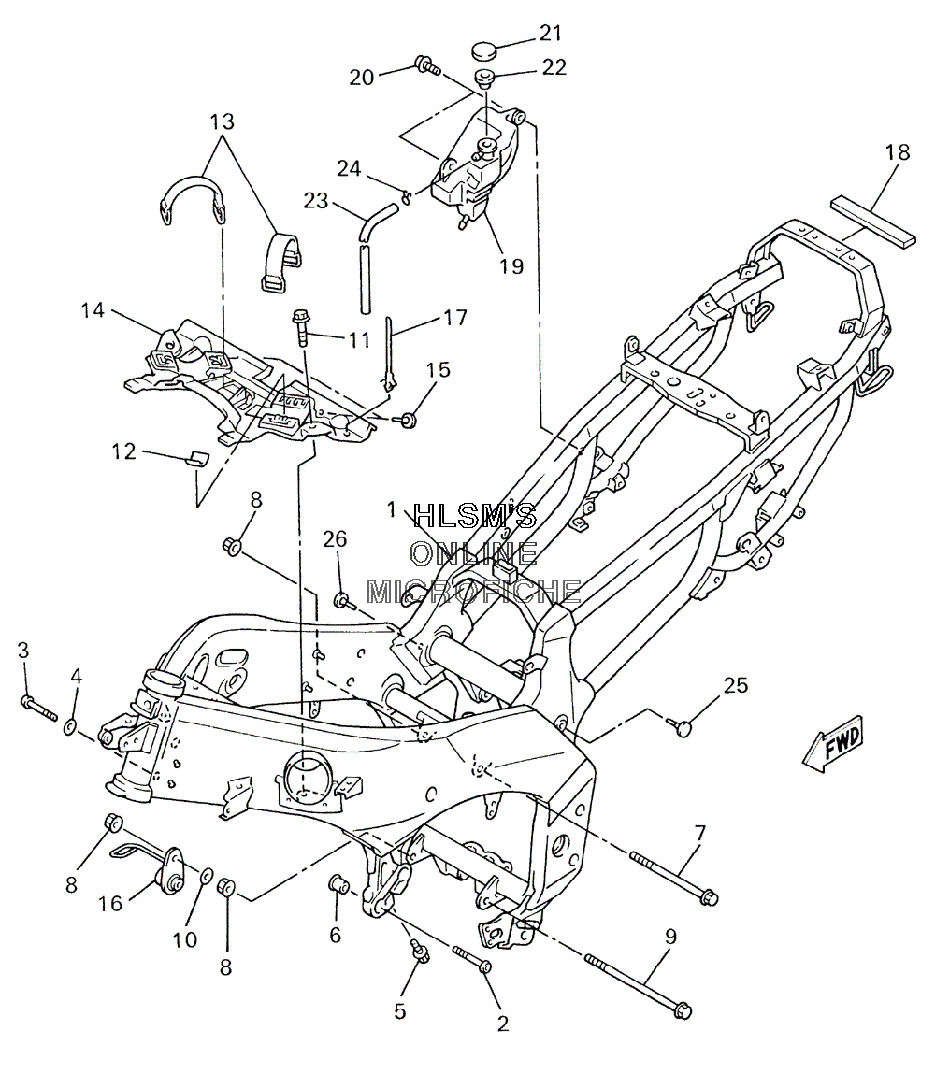

FRAME для Yamaha YZF 600 - 2000 года выпуска
-
№АртикулНазвание
-
14TV-21110-01-35 FRAME COMP. (SILVER)FRAME COMP. (SILVER)
-
291314-10045-00 BOLTBOLT
-
391314-10050-00 BOLTBOLT
-
490201-110T8-00 WASHER, PLATEWASHER, PLATE
-
595814-10025-00 BOLT, FLANGEBOLT, FLANGE
-
690387-115V8-00 COLLARCOLLAR
-
790105-10731-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
895707-10500-00 NUT, FLANGENUT, FLANGE
-
995827-10175-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10774-00 WASHER, PLATEWASHER, PLATE
-
1190119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1231A-28217-00-00 DAMPER 1DAMPER 1
-
1336X-2811G-00-00 BANDBAND
-
144TV-2117M-00-00 COVER 2COVER 2
-
1536Y-21639-00-00 DAMPER 2DAMPER 2
-
164JH-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
1790464-12089-00 CLAMPCLAMP
-
184TV-21486-00-00 DAMPER 2DAMPER 2
-
194FM-21871-02-00 TANK, RECOVERYTANK, RECOVERY
-
2090159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
214L0-21875-00-00 CAPCAP
-
221AA-21874-00-00 GASKETGASKET
-
2390445-08786-00 HOSEHOSE
-
2490467-08003-00 CLIPCLIP
-
2536Y-21639-00-00 DAMPER 2DAMPER 2
-
2636Y-21639-00-00 DAMPER 2DAMPER 2
