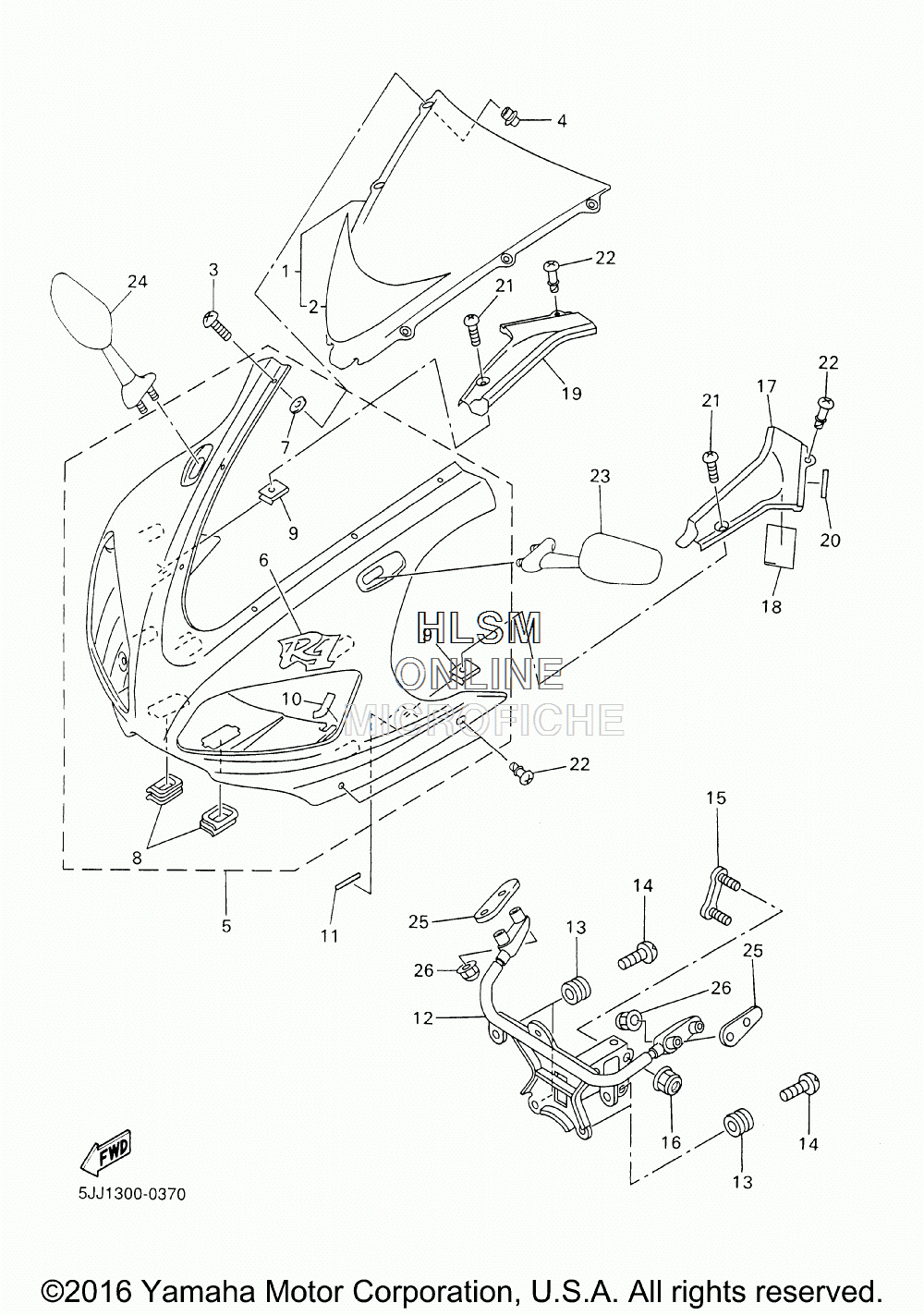

COWLING для Yamaha YZF-R1 CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15JJ-Y2881-30-00 WINDSHIELDWINDSHIELD
-
25JJ-2832P-01-00 ...GRAPHIC 18...GRAPHIC 18
-
390150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
490179-05523-00 NUTNUT
-
55JJ-Y283G-00-1X BODY, FRONT UPPER 1 (OPT)BODY, FRONT UPPER 1 (OPT)
-
55JJ-Y283G-10-0X BODY, FRONT UPPER 1 (OPT)BODY, FRONT UPPER 1 (OPT)
-
64XV-28315-30-00 ...EMBLEM (OPT)...EMBLEM (OPT)
-
64XV-28315-20-00 ...EMBLEM (OPT)...EMBLEM (OPT)
-
75JJ-2834W-00-00 ...PROTECTOR 2...PROTECTOR 2
-
84XV-28349-00-00 ...CAP...CAP
-
990183-05074-00 ...NUT, SPRING...NUT, SPRING
-
101LJ-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
114XV-2834E-00-00 DAMPER 3DAMPER 3
-
125JJ-28356-01-00 STAY 1STAY 1
-
134XV-83513-00-00 DAMPERDAMPER
-
1490164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
154XV-28336-00-00 PLATEPLATE
-
1695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
174XV-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
181TX-28371-00-00 DAMPERDAMPER
-
194XV-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
204EU-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2190154-05013-00 SCREW, BINDINGSCREW, BINDING
-
223XV-28386-00-00 HEADHEAD
-
235JJ-26280-00-00 REAR VIEW MIRROR ASSY(LEFT)REAR VIEW MIRROR ASSY(LEFT)
-
245JJ-26290-00-00 REAR VIEW MIRROR ASSY(RIGHT)REAR VIEW MIRROR ASSY(RIGHT)
-
254SV-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
2690176-06055-00 NUT, CROWNNUT, CROWN
