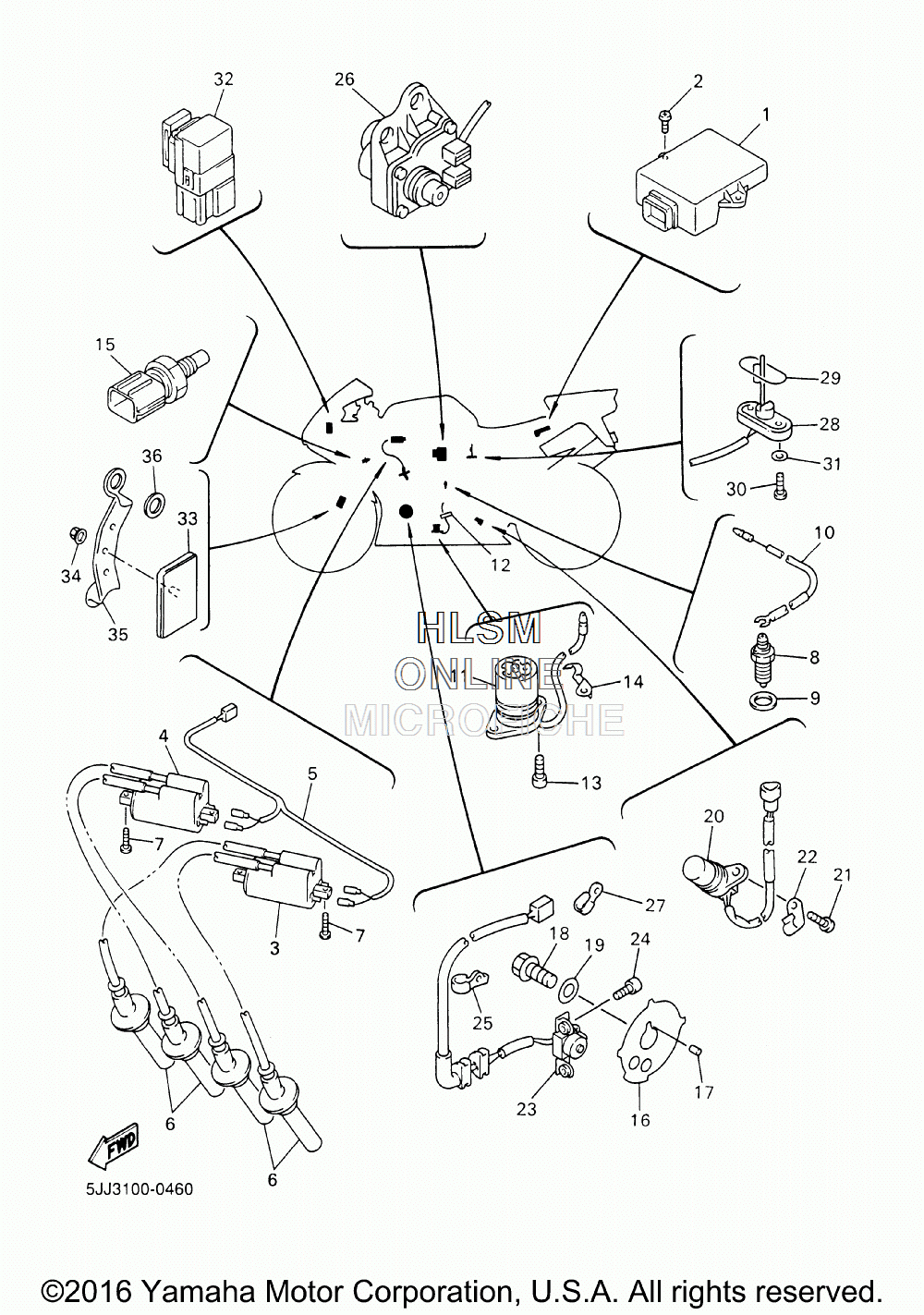

ELECTRICAL для Yamaha YZF-R1 CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
15JJ-82305-40-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
15JJ-82305-30-00 IGNITOR UNIT ASSY (5JJ4)IGNITOR UNIT ASSY (5JJ4)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
34XV-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
44XV-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
54XV-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
64XV-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
797707-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
83GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
105JJ-82541-00-00 WIRE, LEADWIRE, LEAD
-
114XV-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
125Y9-12491-00-00 CLAMP 1CLAMP 1
-
1391317-06014-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
1490465-08013-00 CLAMPCLAMP
-
155JJ-83591-00-00 THERMO UNITTHERMO UNIT
-
164XV-81673-00-00 ROTORROTOR
-
1793604-29151-00 PIN, DOWELPIN, DOWEL
-
1890105-10290-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-107K6-00 WASHER, PLATEWASHER, PLATE
-
204XV-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
2191317-06014-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
2290465-08028-00 CLAMPCLAMP
-
234XV-81670-10-00 PICK-UP ASSYPICK-UP ASSY
-
2491317-06012-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
2590465-08191-00 CLAMPCLAMP
-
264FM-85820-01-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
2790462-08225-00 CLAMPCLAMP
-
281UF-85752-02-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
2942X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
3090149-06011-00 SCREWSCREW
-
3190202-05193-00 WASHER, PLATEWASHER, PLATE
-
325JJ-81950-10-00 RELAY ASSY (G8HN-1C4T-DJ-Y51)RELAY ASSY (G8HN-1C4T-DJ-Y51)
-
3320G-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
3495707-05500-00 NUT, FLANGENUT, FLANGE
-
354XV-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3690201-08759-00 WASHER, PLATEWASHER, PLATE
