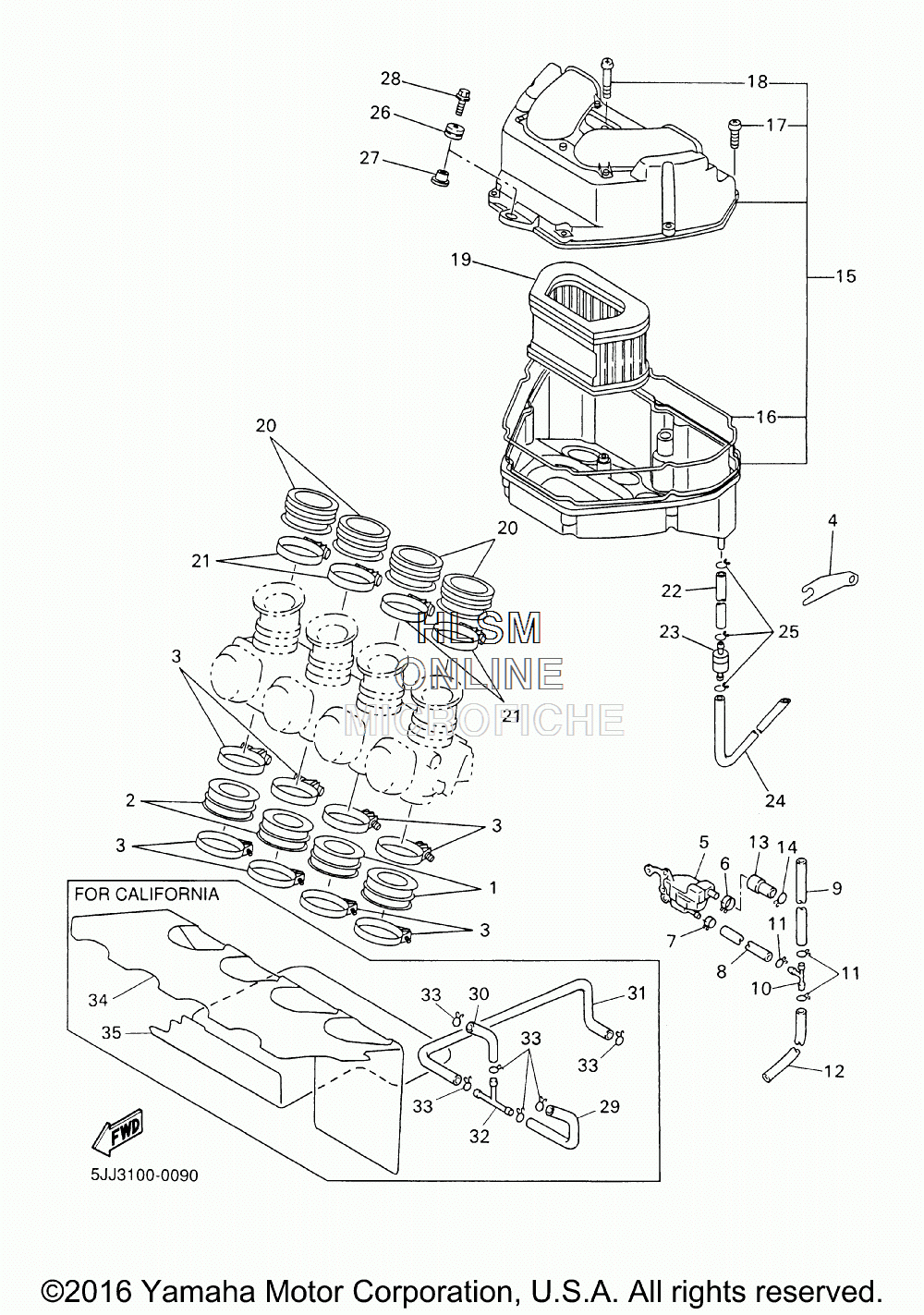

INTAKE для Yamaha YZF-R1 CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14XV-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
24XV-13598-00-00 JOINT, CARBURETOR 4JOINT, CARBURETOR 4
-
390450-57044-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
45JJ-14414-00-00 STAY 2STAY 2
-
55JJ-1446A-00-00 SURGE TANK ASSYSURGE TANK ASSY
-
690467-16098-00 CLIPCLIP
-
790467-11090-00 CLIPCLIP
-
890445-11730-00 HOSE (L280)HOSE (L280)
-
990445-10143-00 HOSEHOSE
-
1090413-07007-00 WAY 3WAY 3
-
1190467-10041-00 CLIPCLIP
-
1290445-117K0-00 HOSE (L590)HOSE (L590)
-
135JJ-14294-00-00 HOSEHOSE
-
1490467-13042-00 CLIPCLIP
-
155JJ-14401-00-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
164XV-14452-00-00 ...SEAL...SEAL
-
1798507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1898507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
194XV-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
205JJ-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
2190450-75083-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290445-11452-00 HOSE (L125)HOSE (L125)
-
234X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
2490445-11013-00 HOSE (L410)HOSE (L410)
-
2590467-10041-00 CLIPCLIP
-
2690480-12314-00 GROMMETGROMMET
-
2790387-065J6-00 COLLARCOLLAR
-
2895817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
294XV-14465-00-00 PIPE (5JJ4)PIPE (5JJ4)
-
304XV-14466-00-00 PIPE (5JJ4)PIPE (5JJ4)
-
314XV-1443J-00-00 PIPE (5JJ4)PIPE (5JJ4)
-
3290413-08012-00 WAY 3 (5JJ4)WAY 3 (5JJ4)
-
3390467-10008-00 CLIP (5JJ4)CLIP (5JJ4)
-
345JJ-12682-00-00 PROTECTOR, HEAT (5JJ4)PROTECTOR, HEAT (5JJ4)
-
355JJ-12683-00-00 PROTECTOR, HEAT (5JJ4)PROTECTOR, HEAT (5JJ4)
