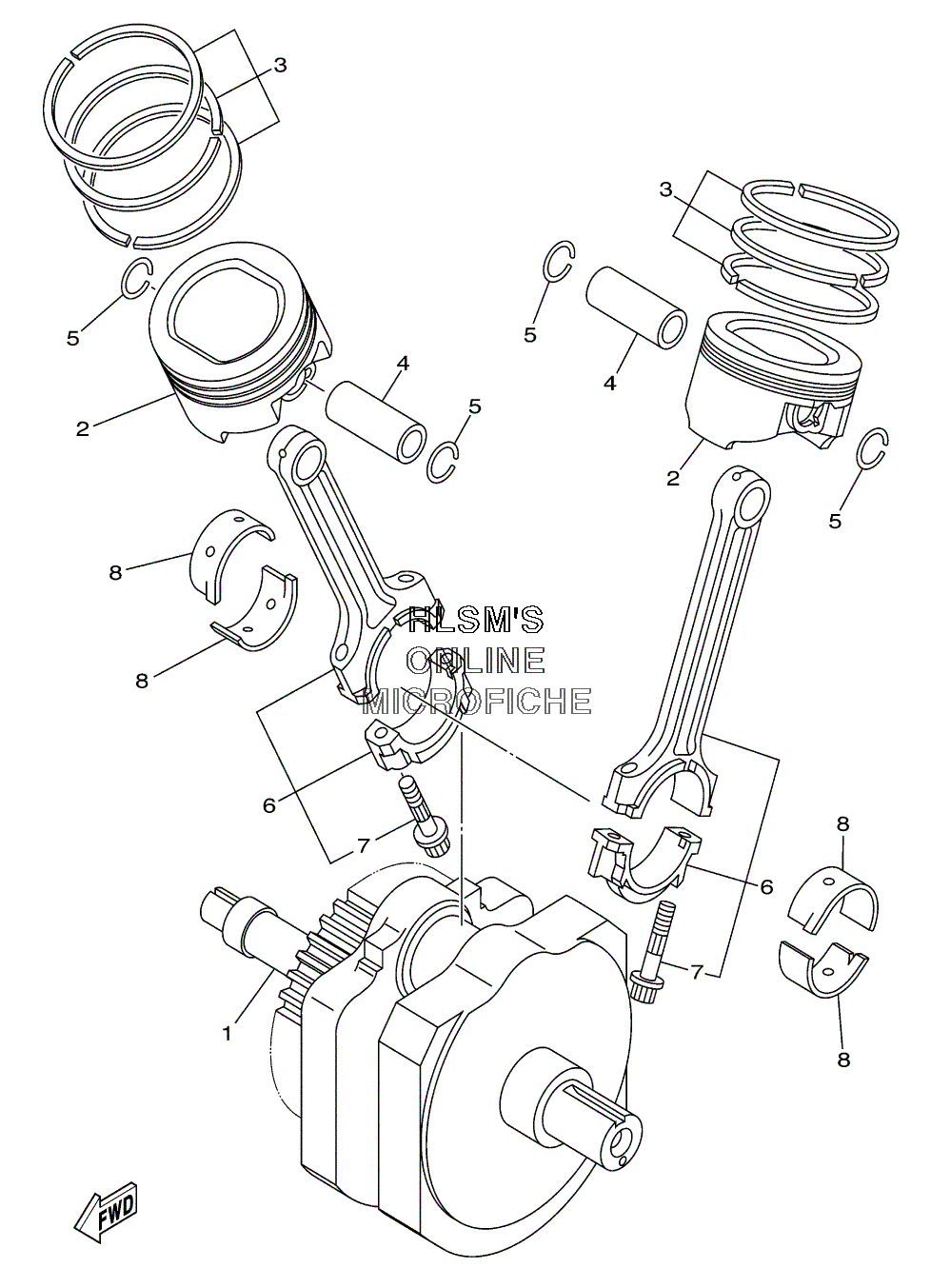

CRANKSHAFT - PISTON для Yamaha XV 1600 A ROAD STAR - 2001 года выпуска
-
№АртикулНазвание
-
14WM-11400-00-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
24WM-11631-00-00 PISTON (STD)PISTON (STD)
-
334L-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
44WM-11633-00-00 PIN, PISTONPIN, PISTON
-
593450-24028-00 CIRCLIPCIRCLIP
-
64WM-11650-00-00 CONNECTING ROD ASSY.CONNECTING ROD ASSY.
-
74WM-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
84WM-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
84WM-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
84WM-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
84WM-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
84WM-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
