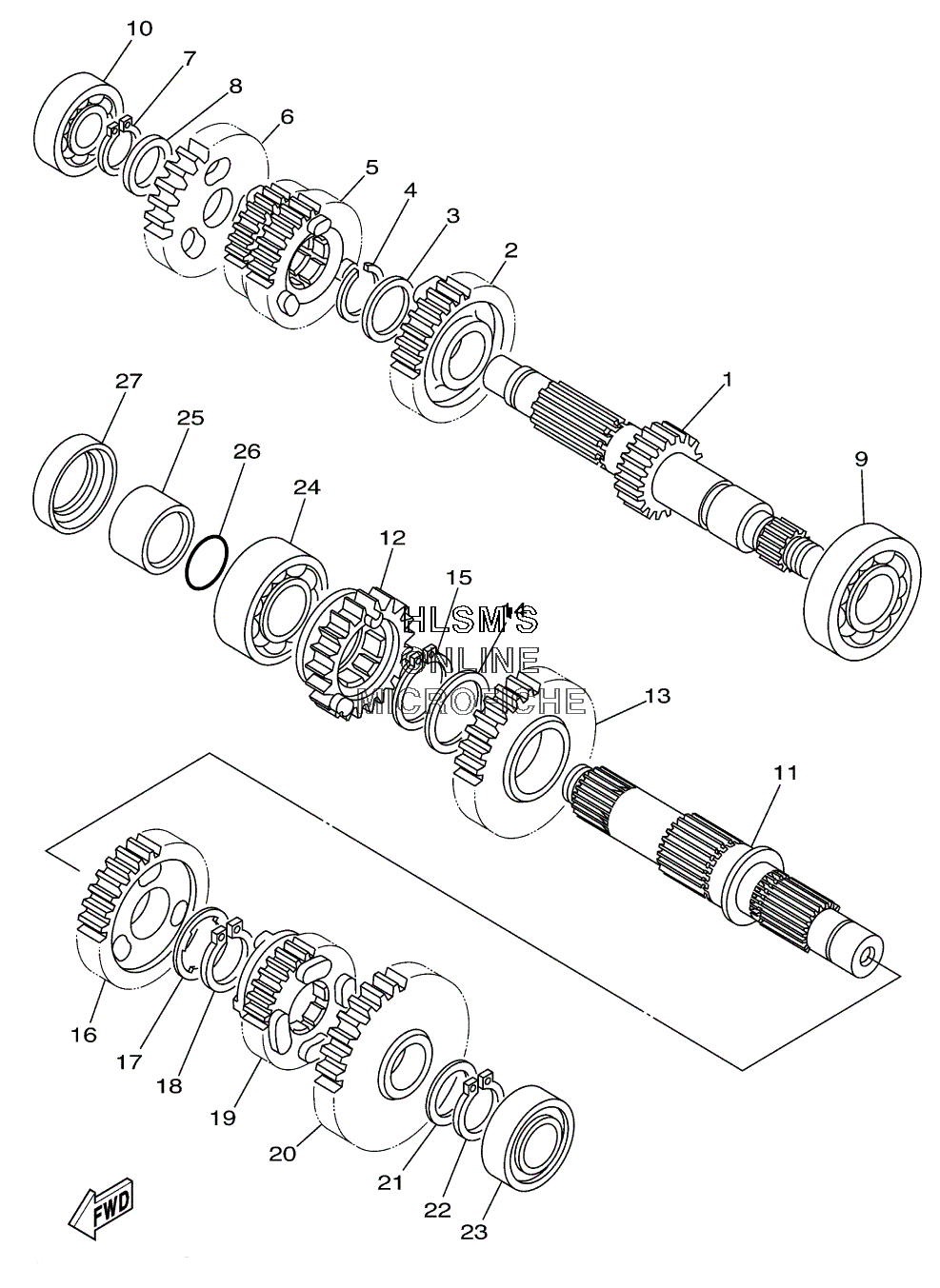

TRANSMISSION для Yamaha XV 1600 A ROAD STAR - 2001 года выпуска
-
№АртикулНазвание
-
14WM-17411-00-00 AXLE, MAINAXLE, MAIN
-
24NK-17141-01-00 GEAR, 4TH PINION (32 TEETH)GEAR, 4TH PINION (32 TEETH)
-
390209-25196-00 WASHERWASHER
-
493440-28062-00 CIRCLIPCIRCLIP
-
54NK-17121-01-00 GEAR, 2ND/3RD PINION (19/25 TEETH)GEAR, 2ND/3RD PINION (19/25 TEETH)
-
64NK-17151-00-00 GEAR, 5TH PINION (28 TEETH)GEAR, 5TH PINION (28 TEETH)
-
793410-23056-00 CIRCLIPCIRCLIP
-
890201-232K5-00 WASHER, PLATEWASHER, PLATE
-
993306-37806-00 BEARINGBEARING
-
1093306-30441-00 BEARINGBEARING
-
114WM-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
124NK-17251-00-00 GEAR, 5TH WHEEL (21 TEETH)GEAR, 5TH WHEEL (21 TEETH)
-
134NK-17221-01-00 GEAR, 2ND WHEEL (30 TEETH)GEAR, 2ND WHEEL (30 TEETH)
-
1490209-32231-00 WASHERWASHER
-
1593440-34025-00 CIRCLIPCIRCLIP
-
164NK-17231-01-00 GEAR, 3RD WHEEL (29 TEETH)GEAR, 3RD WHEEL (29 TEETH)
-
1790209-27192-00 WASHERWASHER
-
1893440-30077-00 CIRCLIPCIRCLIP
-
194NK-17241-01-00 GEAR, 4TH WHEEL (29 TEETH)GEAR, 4TH WHEEL (29 TEETH)
-
204NK-17211-01-00 GEAR, 1ST WHEEL (39 TEETH)GEAR, 1ST WHEEL (39 TEETH)
-
2190201-256K6-00 WASHER, PLATEWASHER, PLATE
-
2293410-25017-00 CIRCLIPCIRCLIP
-
2393306-20550-00 BEARINGBEARING
-
2493305-20607-00 BEARINGBEARING
-
2590387-3015P-00 COLLARCOLLAR
-
2693210-30660-00 O-RINGO-RING
-
2793103-38184-00 OIL SEALOIL SEAL
