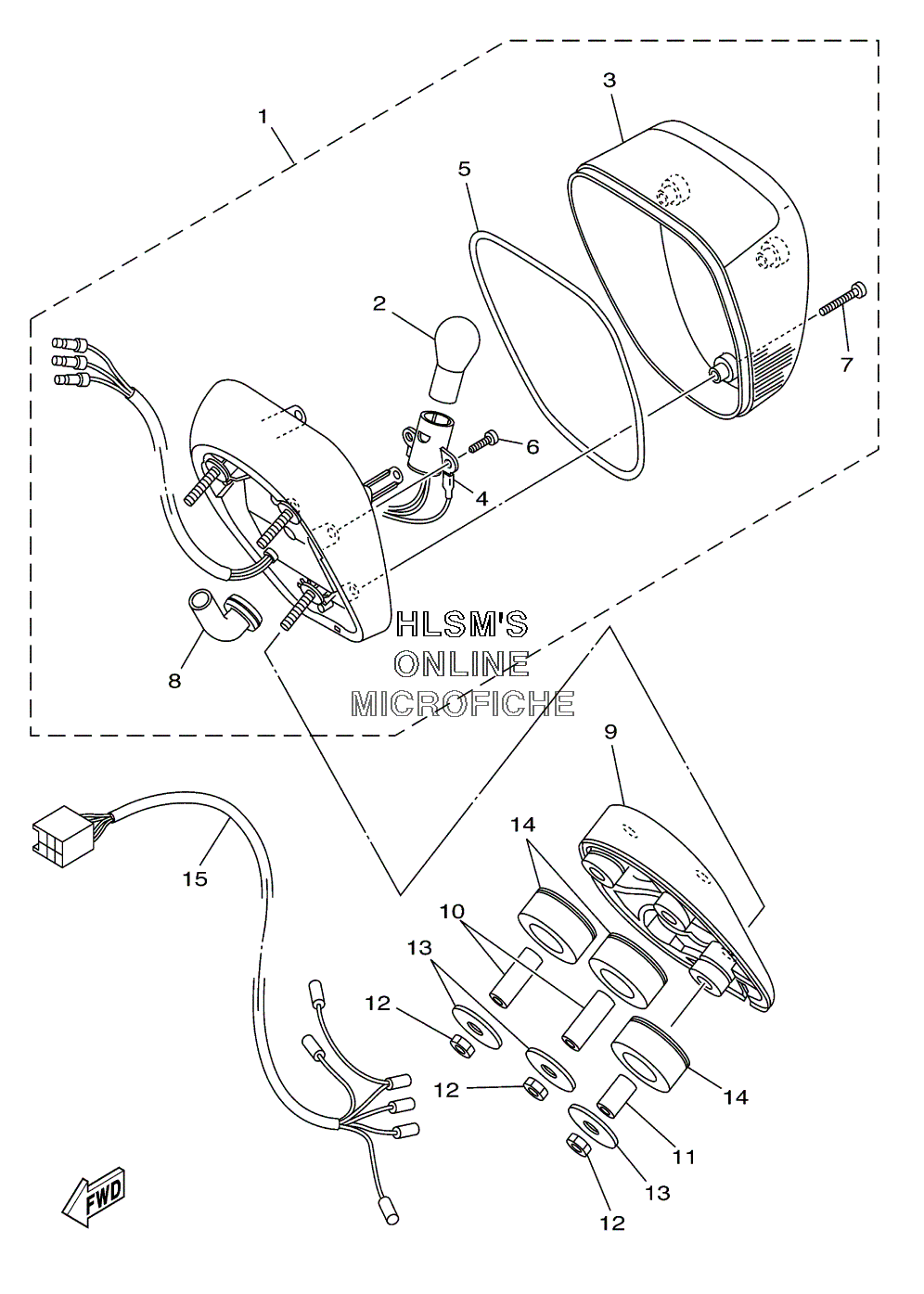

TAILLIGHT для Yamaha XV 1600 A ROAD STAR - 2001 года выпуска
-
№АртикулНазвание
-
14WM-84700-00-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
34NK-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
44WM-84735-00-00 ...CORD ASSY....CORD ASSY.
-
54NK-84702-00-00 ...GASKET, TAILLENS...GASKET, TAILLENS
-
697707-40516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
797780-40525-00 ...SCREW, TAPPING...SCREW, TAPPING
-
85BN-84154-00-00 ...GROMMET...GROMMET
-
94WM-84527-00-00 DAMPERDAMPER
-
1090387-060X8-00 COLLARCOLLAR
-
1190387-06028-00 COLLARCOLLAR
-
1295317-06600-00 NUTNUT
-
1390201-065G8-00 WASHER, PLATEWASHER, PLATE
-
145BN-84553-00-00 DAMPERDAMPER
-
154WM-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
