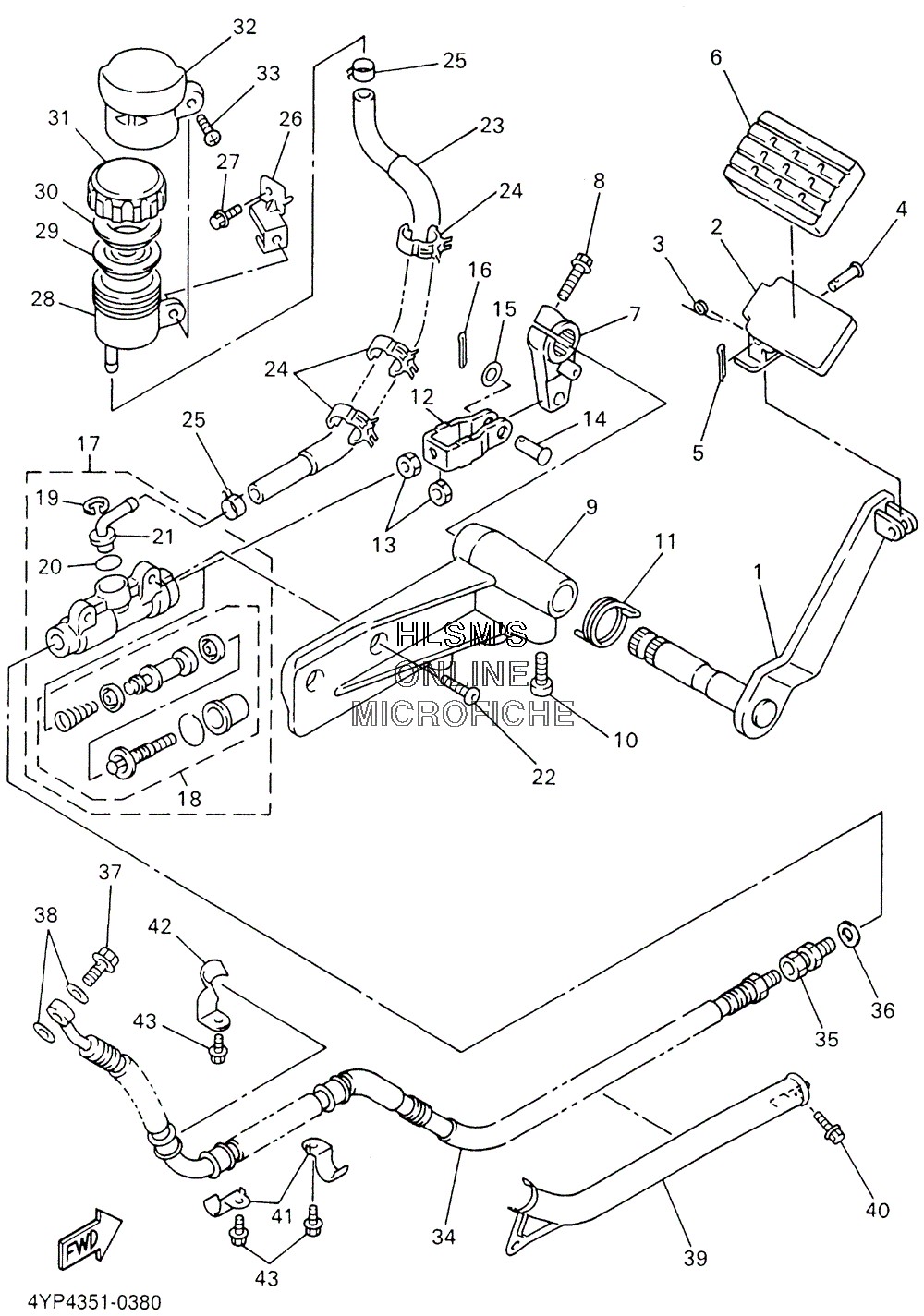

BRAKE - REAR MASTER CYLINDER для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD - 2001 года выпуска
-
№АртикулНазвание
-
14NK-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
24NK-27242-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
390508-186B1-00 SPRING, TORSIONSPRING, TORSION
-
491701-06022-00 PIN, CLEVISPIN, CLEVIS
-
591401-20012-00 PIN, COTTERPIN, COTTER
-
64NK-27285-00-00 CAPCAP
-
74NK-27262-00-00 LEVERLEVER
-
895027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
94NK-2741L-00-00 BRACKET 4BRACKET 4
-
1091317-08014-00 BOLTBOLT
-
114NK-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
-
124NK-27222-00-00 JOINTJOINT
-
1395307-08700-00 NUTNUT
-
1490240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1590201-08083-00 WASHER, PLATEWASHER, PLATE
-
1691401-16012-00 PIN, COTTERPIN, COTTER
-
174NK-2583V-00-00 RR. MASTER CYL ASSY.RR. MASTER CYL ASSY.
-
181FK-W0042-50-00 ...CYL KIT, MASTER...CYL KIT, MASTER
-
192VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
2093210-15620-00 ...O-RING...O-RING
-
213LD-2582A-00-00 ...JOINT...JOINT
-
2292014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234NK-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2490464-20191-00 CLAMPCLAMP
-
2590467-14057-00 CLIPCLIP
-
264NK-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2795027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2831A-25894-01-00 TANK, RESERVOIRTANK, RESERVOIR
-
29360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
302GU-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
312KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
324NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3392014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
344NK-2581J-02-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
353LC-25885-00-00 JOINTJOINT
-
3690201-10118-00 WASHER, PLATEWASHER, PLATE
-
3790401-10159-00 BOLT, UNIONBOLT, UNION
-
3890201-10118-00 WASHER, PLATEWASHER, PLATE
-
394NK-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4095024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
413XV-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
424NK-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4395027-06016-00 BOLT, FLANGEBOLT, FLANGE
