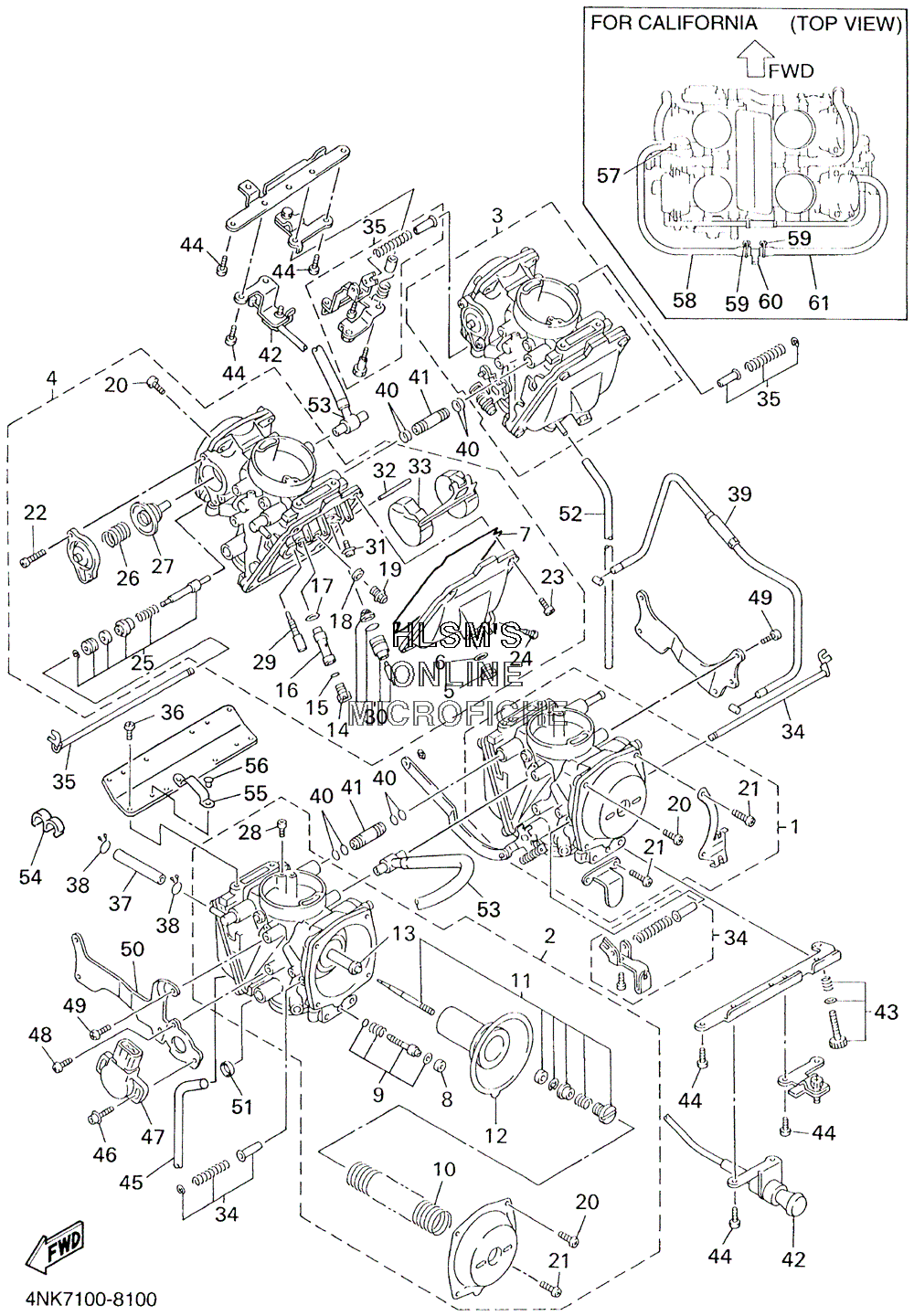

CARBURETOR для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD - 2001 года выпуска
-
№АртикулНазвание
-
14NK-14901-01-00 CARBURETOR ASSY 1 (EXCEPT CALIF)CARBURETOR ASSY 1 (EXCEPT CALIF)
-
14NK-14901-11-00 CARBURETOR ASSY 1 (CALIF ONLY)CARBURETOR ASSY 1 (CALIF ONLY)
-
24NK-14902-01-00 CARBURETOR ASSY 2 (EXCEPT CALIF)CARBURETOR ASSY 2 (EXCEPT CALIF)
-
24NK-14902-11-00 CARBURETOR ASSY 2 (CALIF ONLY)CARBURETOR ASSY 2 (CALIF ONLY)
-
34NK-14903-01-00 CARBURETOR ASSY 3 (EXCEPT CALIF)CARBURETOR ASSY 3 (EXCEPT CALIF)
-
34NK-14903-11-00 CARBURETOR ASSY 3 (CALIF ONLY)CARBURETOR ASSY 3 (CALIF ONLY)
-
44NK-14904-01-00 CARBURETOR ASSY 4 (EXCEPT CALIF)CARBURETOR ASSY 4 (EXCEPT CALIF)
-
44NK-14904-11-00 CARBURETOR ASSY 4 (CALIF ONLY)CARBURETOR ASSY 4 (CALIF ONLY)
-
522U-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
622U-14561-00-00 ...O-RING...O-RING
-
71HX-14147-00-00 ...O-RING...O-RING
-
83F9-14118-00-00 ...CAP...CAP
-
93KW-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
104NK-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
114NK-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
124NK-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
133DM-14141-30-00 ...MAIN NOZZLE(0-0)...MAIN NOZZLE(0-0)
-
143G2-14231-19-00 ...JET, POWER ( 95)...JET, POWER ( 95)
-
151AE-14227-00-00 ...O-RING...O-RING
-
161AE-14261-00-00 ...HOLDER...HOLDER
-
171AE-14237-00-00 ...GASKET...GASKET
-
18137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
191HX-14565-00-00 ...SCREW...SCREW
-
2098580-04008-00 ...SCREW, PAN HEAD (OPT)...SCREW, PAN HEAD (OPT)
-
2197890-04010-00 ...SCREW, PAN HEAD (OPT)...SCREW, PAN HEAD (OPT)
-
221UY-14565-00-00 ...SCREW...SCREW
-
2398507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2412R-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
254DN-1410A-01-00 ...STARTER SET...STARTER SET
-
264NK-14935-00-00 ...SPRING...SPRING
-
2722V-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
281HX-14231-23-00 ...JET, MAIN (115)...JET, MAIN (115)
-
2922F-14142-20-00 ...JET, PILOT ( 20)...JET, PILOT ( 20)
-
303CF-14107-15-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
311FN-14565-00-00 ...SCREW...SCREW
-
32353-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
331HX-14985-00-00 ...FLOAT...FLOAT
-
344NK-1490L-00-00 STARTER LEVER SET, 1STARTER LEVER SET, 1
-
354NK-1490L-10-00 STARTER LEVER SET, 1STARTER LEVER SET, 1
-
3698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
374NK-14396-00-00 PIPEPIPE
-
384NK-14137-00-00 CLIPCLIP
-
394NK-14130-00-00 CABLECABLE
-
4036Y-14147-00-00 O-RINGO-RING
-
411WG-14251-00-00 NIPPLENIPPLE
-
424NK-14130-12-00 CABLECABLE
-
434NK-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
4498507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
453JD-14197-00-00 PIPEPIPE
-
464KM-24453-00-00 SCREWSCREW
-
474NK-85885-00-00 THROTTLE POSITION SENSOR ASSYTHROTTLE POSITION SENSOR ASSY
-
4898707-05008-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
4998507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
504NK-14867-00-00 BRACKETBRACKET
-
514HM-14239-00-00 SEALSEAL
-
524FU-14197-00-00 PIPEPIPE
-
534NK-14349-20-00 PIPEPIPE
-
5490464-10075-00 CLAMPCLAMP
-
554NK-14243-00-00 PLATEPLATE
-
564NK-14386-00-00 PIN, FLOATPIN, FLOAT
-
5755X-14937-00-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
584NK-14987-00-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
5990467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
603H3-24376-00-00 PIPE, JOINT 1 (CALIF ONLY)PIPE, JOINT 1 (CALIF ONLY)
-
614NK-14987-10-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
