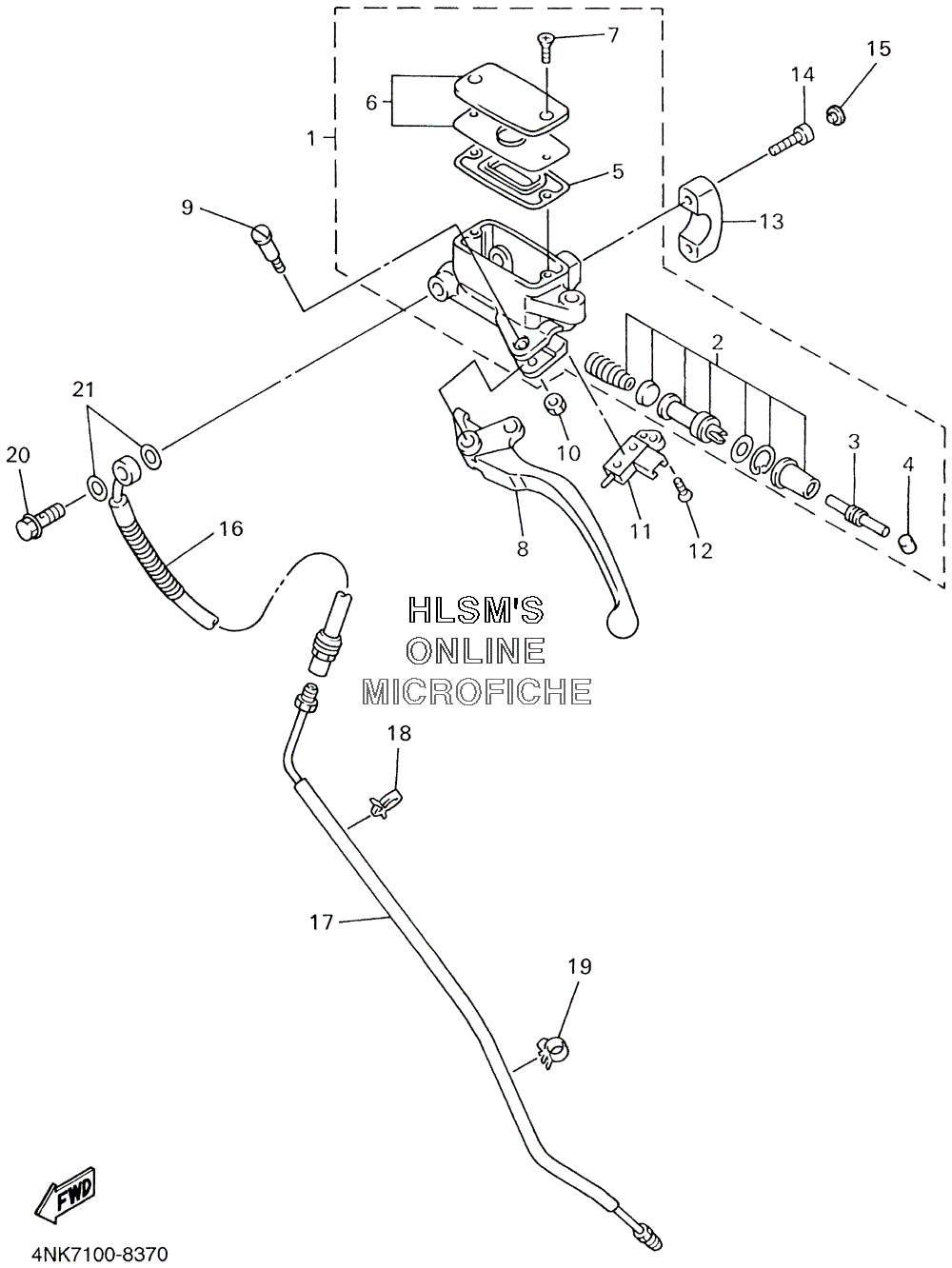

CLUTCH MASTER CYLINDER для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD - 2001 года выпуска
-
№АртикулНазвание
-
14NK-W2645-00-00 MASTER CYL SUB ASSYMASTER CYL SUB ASSY
-
23GM-W0099-00-00 ...CYL KIT, MASTER (CLUTCH)...CYL KIT, MASTER (CLUTCH)
-
33GM-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
54NK-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
64NK-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
74NK-2589H-00-00 ...SCREW...SCREW
-
84XY-83912-00-00 LEVER 1LEVER 1
-
94NK-83945-00-00 BOLT, LEVERBOLT, LEVER
-
1095604-06100-00 NUT, UNUT, U
-
113GM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1298706-04016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
134NK-25867-00-00 BRACKET, MASTER CYLBRACKET, MASTER CYL
-
1491314-06025-00 BOLTBOLT
-
1590338-06162-00 PLUGPLUG
-
164NK-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
174NK-26471-00-00 PIPEPIPE
-
1890464-13133-00 CLAMPCLAMP
-
1990464-10190-00 CLAMPCLAMP
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
