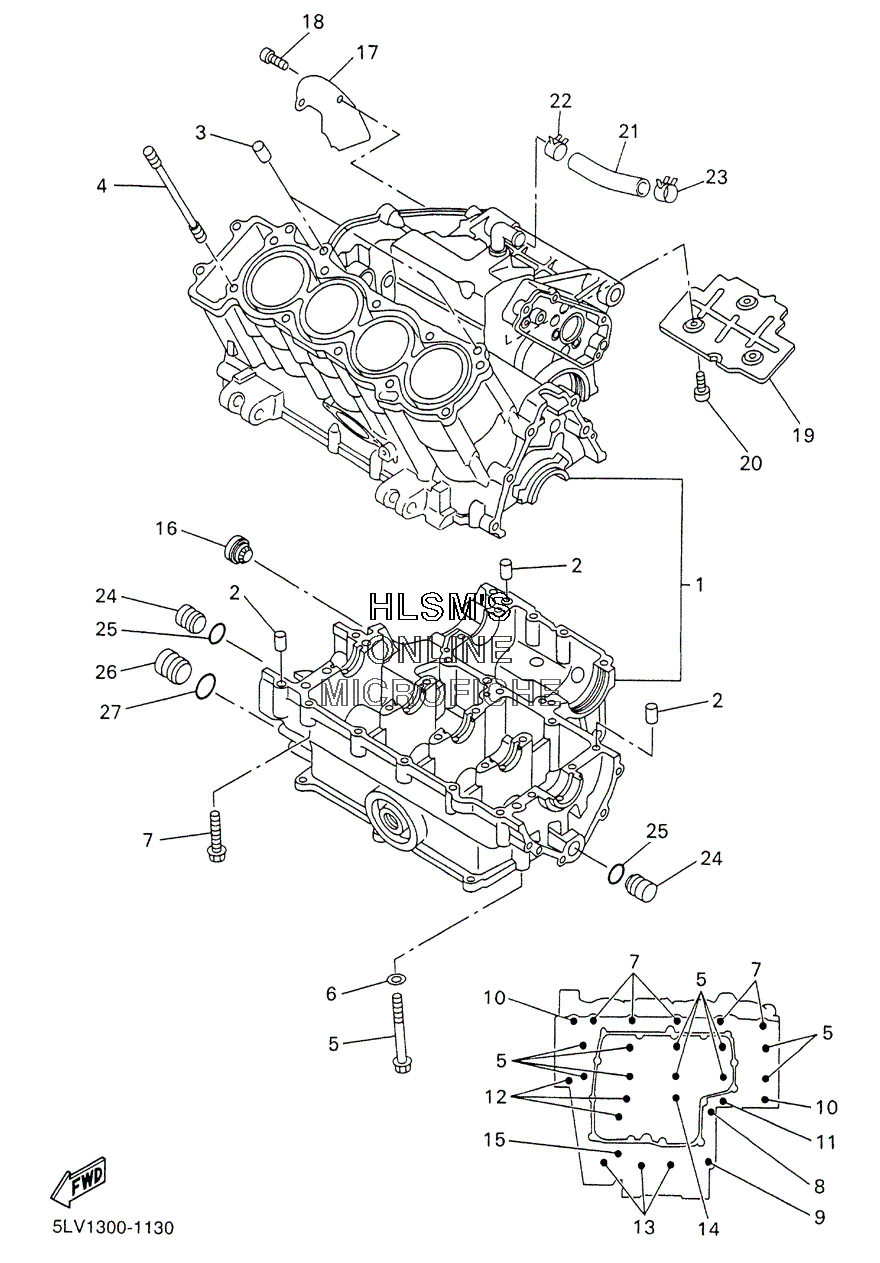

CRANKCASE для Yamaha FZS 1000 FZ-1 - 2003 года выпуска
-
№АртикулНазвание
-
15LV-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 PIN, DOWELPIN, DOWEL
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
490116-10619-00 BOLT, STUDBOLT, STUD
-
590105-093A5-00 BOLT, FLANGEBOLT, FLANGE
-
690201-096J9-00 WASHER, PLATEWASHER, PLATE
-
795817-06055-00 BOLT, FLANGEBOLT, FLANGE
-
890105-08015-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
995817-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1090109-065G3-00 BOLTBOLT
-
1195817-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1295817-06070-00 BOLT, FLANGEBOLT, FLANGE
-
1395817-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1495814-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1595817-06065-00 BOLT, FLANGEBOLT, FLANGE
-
162H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
174XV-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1890110-06018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
194XV-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
2090110-06018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
215LV-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2290468-08104-00 CLIPCLIP
-
2390467-16009-00 CLIPCLIP
-
2490338-16262-00 PLUGPLUG
-
2593210-12790-00 O-RINGO-RING
-
2690338-20263-00 PLUGPLUG
-
2793210-16314-00 O-RINGO-RING
