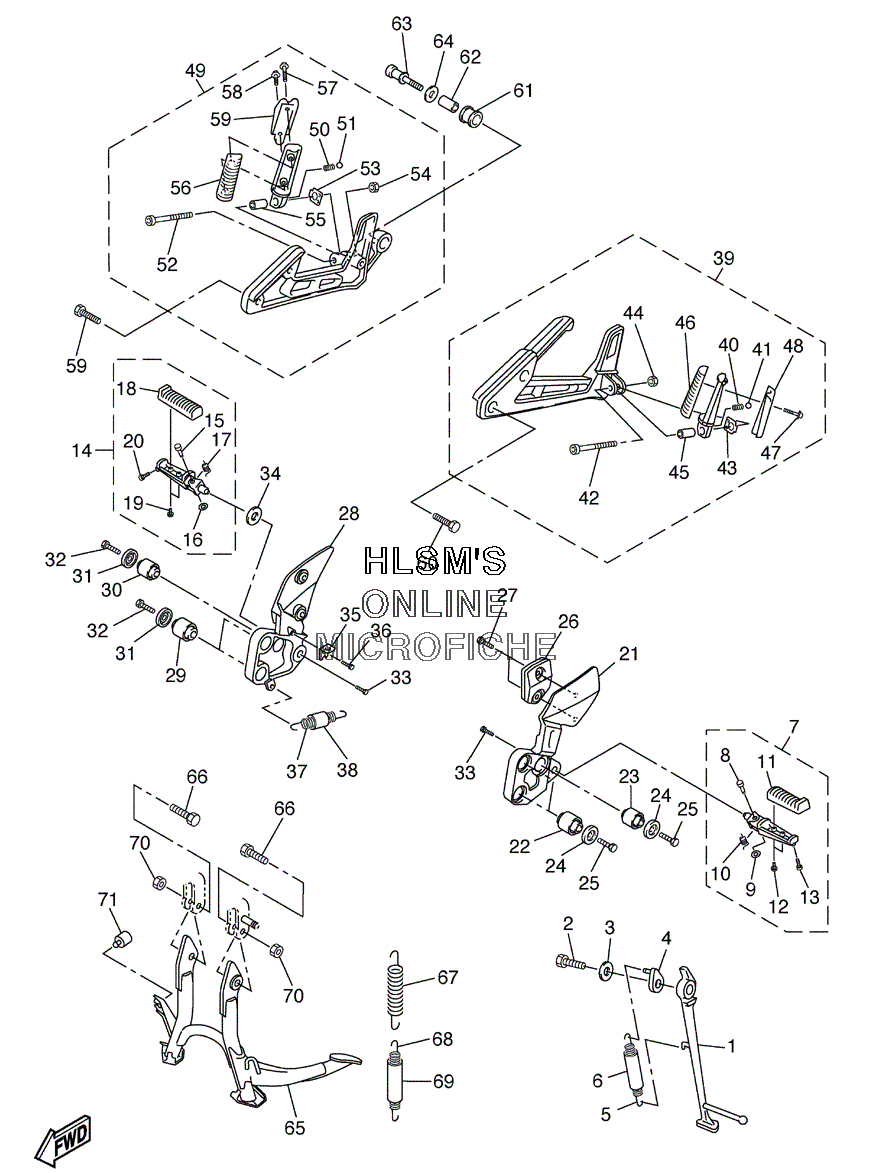

STAND W/ FOOTREST для Yamaha FZS 1000 FZ-1 - 2003 года выпуска
-
№АртикулНазвание
-
15LV-27311-00-00 STAND, SIDESTAND, SIDE
-
290101-08662-00 BOLTBOLT
-
390201-081R9-00 WASHER, PLATEWASHER, PLATE
-
436Y-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
590506-20006-00 SPRING, TENSIONSPRING, TENSION
-
690445-197J2-00 HOSE (L60)HOSE (L60)
-
75LV-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
890243-08029-00 ...PIN...PIN
-
990201-06042-00 ...WASHER, PLATE...WASHER, PLATE
-
1090508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
114BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1290157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1390109-083E0-00 ...BOLT...BOLT
-
145LV-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
1590243-08029-00 ...PIN...PIN
-
1690201-06042-00 ...WASHER, PLATE...WASHER, PLATE
-
1790508-20572-00 ...SPRING, TORSION...SPRING, TORSION
-
184BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
1990157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2090109-083E0-00 ...BOLT...BOLT
-
215LV-27442-00-00 BRACKET 2BRACKET 2
-
221NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
233KJ-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2490209-08295-00 WASHERWASHER
-
2590110-08220-00 SCREWSCREW
-
265LV-2622H-00-00 WEIGHTWEIGHT
-
2790111-06005-00 BOLTBOLT
-
285LV-27443-01-00 BRACKET 3BRACKET 3
-
291NL-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
303KJ-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
3190209-08295-00 WASHERWASHER
-
3290110-08220-00 SCREWSCREW
-
3390109-103A9-00 BOLTBOLT
-
3490206-17084-00 WASHER, WAVEWASHER, WAVE
-
354DN-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3698507-06008-00 SCREWSCREW
-
3790506-20377-00 SPRING, TENSIONSPRING, TENSION
-
3890446-17346-00 HOSEHOSE
-
395LV-27430-01-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
4090501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4193501-04011-00 ...BALL...BALL
-
4291314-06040-00 ...BOLT, SOCKET...BOLT, SOCKET
-
435JJ-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4495604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
4590387-06014-00 ...COLLAR...COLLAR
-
464BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
4790159-05187-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
485LV-2741A-00-00 ...ARM 1...ARM 1
-
495LV-27440-01-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
5090501-15001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
5193501-04011-00 ...BALL...BALL
-
5291314-06040-00 ...BOLT, SOCKET...BOLT, SOCKET
-
535JJ-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5495604-06200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
5590387-06014-00 ...COLLAR...COLLAR
-
564BP-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
5790159-05187-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
5890159-05004-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
595LV-2741E-01-00 ...ARM 2...ARM 2
-
6090109-087F1-00 BOLTBOLT
-
6136Y-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
6290387-10636-00 COLLARCOLLAR
-
635LV-27217-00-00 BOLTBOLT
-
6490201-10669-00 WASHER, PLATEWASHER, PLATE
-
655LV-27111-00-00 STAND, MAINSTAND, MAIN
-
6690109-100E6-00 BOLTBOLT
-
6790506-40508-00 SPRING, TENSIONSPRING, TENSION
-
6890506-23509-00 SPRING, TENSIONSPRING, TENSION
-
6990445-170K9-00 HOSE (L60)HOSE (L60)
-
7090185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
711A0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
