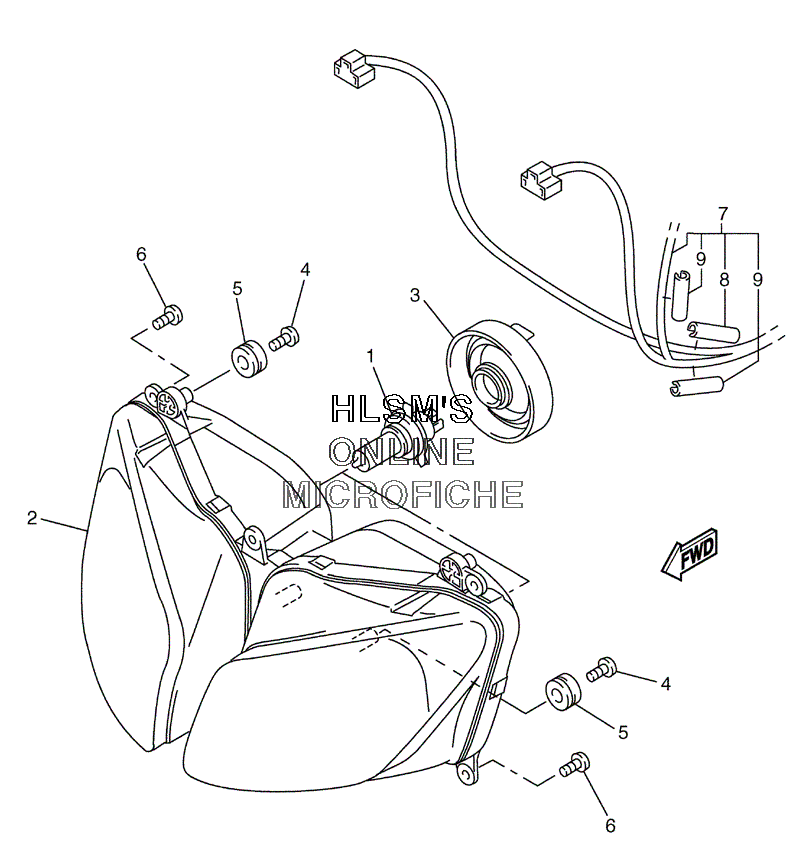

HEADLIGHT для Yamaha FZS 1000 FZ-1 - 2003 года выпуска
-
№АртикулНазвание
-
18V0-84314-10-00 BULB, HEADLIGHT (12V-60/55W)BULB, HEADLIGHT (12V-60/55W)
-
25LV-84310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
35LV-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
490164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
590480-14229-00 GROMMETGROMMET
-
697707-50016-00 SCREW, TRUSSSCREW, TRUSS
-
75LV-84359-11-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
85LV-84559-00-00 ...DAMPER...DAMPER
-
95LV-84553-00-00 ...DAMPER...DAMPER
