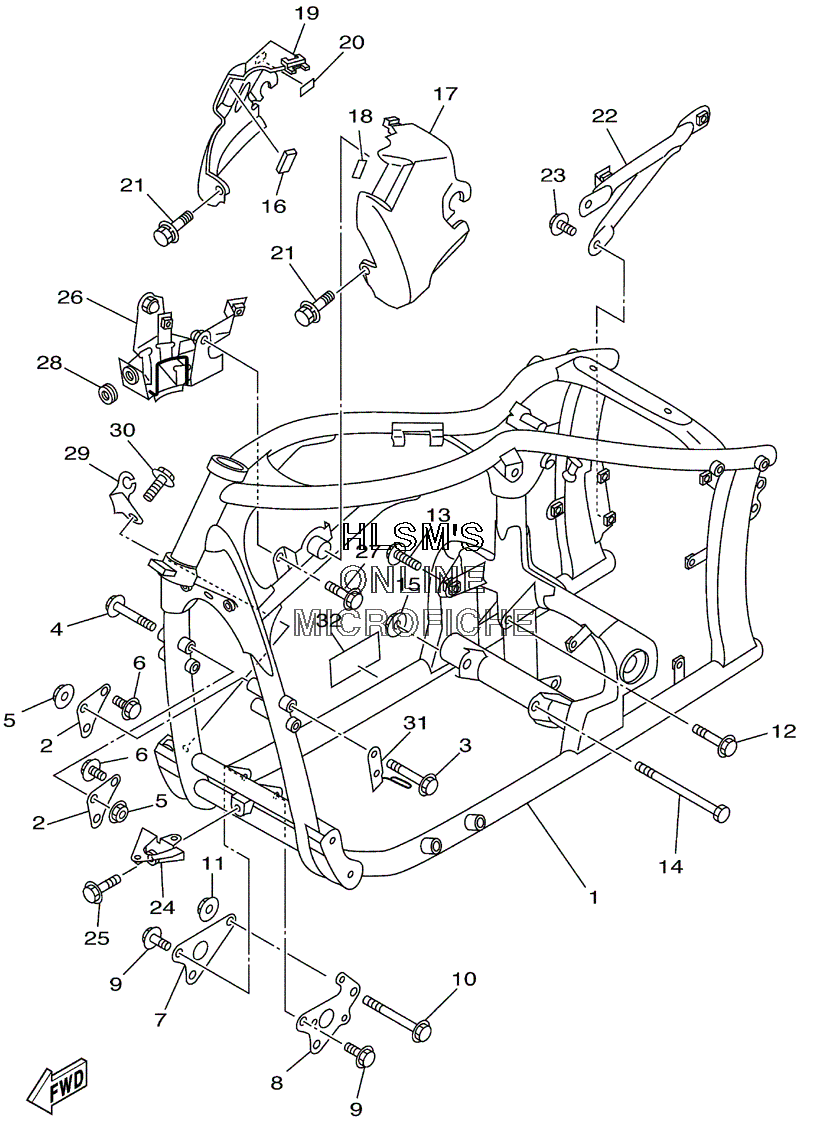

FRAME для Yamaha XVS 650 AT V STAR SILVERADO - 2003 года выпуска
-
№АртикулНазвание
-
14VR-21110-20-00 FRAME COMP. (EXCEPT CALIF)FRAME COMP. (EXCEPT CALIF)
-
15BN-21110-10-00 FRAME COMP. (CALIF ONLY)FRAME COMP. (CALIF ONLY)
-
24VR-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
390105-082A4-00 BOLT, FLANGEBOLT, FLANGE
-
490105-08721-00 BOLT, FLANGEBOLT, FLANGE
-
590179-08684-00 NUTNUT
-
695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
74VR-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
85BN-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
995814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1095814-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1195704-10500-00 NUTNUT
-
1290105-10788-00 BOLT, FLANGEBOLT, FLANGE
-
1395817-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1490101-12694-00 BOLTBOLT
-
1590179-12657-00 NUTNUT
-
164SV-28372-00-00 DAMPERDAMPER
-
174TR-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
183TB-28217-00-00 DAMPERDAMPER
-
194TR-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
203TB-28217-00-00 DAMPERDAMPER
-
2190119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224TR-21460-01-00 STAY, MUFFLERSTAY, MUFFLER
-
2395817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
244VR-28356-01-00 STAY 1STAY 1
-
2590105-062A2-00 BOLT, FLANGEBOLT, FLANGE
-
264TR-24491-02-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2795817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2890480-12320-00 GROMMETGROMMET
-
294TR-2144G-01-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
314VR-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
325FB-2179V-20-00 PLATE, EPA 1 (NON CALIFORNIA)PLATE, EPA 1 (NON CALIFORNIA)
-
325FB-2179R-20-00 PLATE, EPA 2 (CALIFORNIA)PLATE, EPA 2 (CALIFORNIA)
