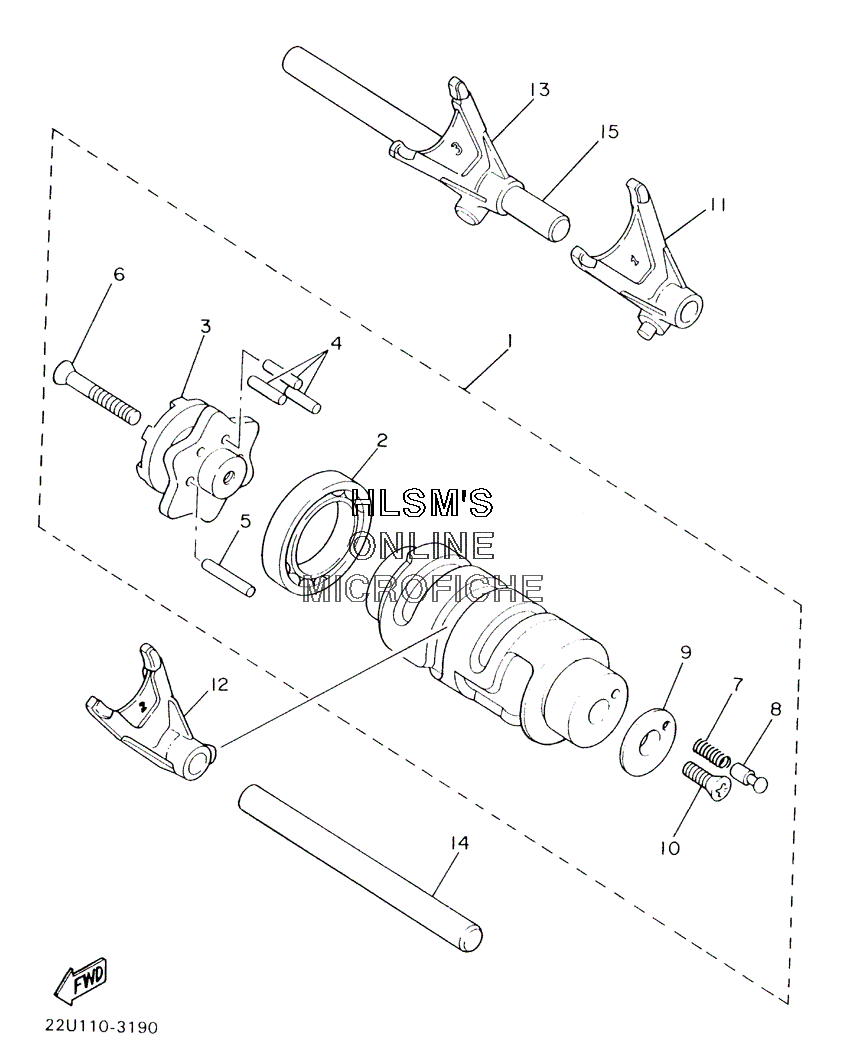

SHIFT CAM W/ FORK для Yamaha XVS 650 AT V STAR SILVERADO - 2003 года выпуска
-
№АртикулНазвание
-
14TR-18540-02-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-90602-00 ...BEARING...BEARING
-
316G-18185-00-00 ......SEGMENT......SEGMENT
-
493604-16092-00 ...PIN, DOWEL...PIN, DOWEL
-
593604-20156-00 ...PIN, DOWEL...PIN, DOWEL
-
698707-05035-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
790501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
84UN-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
94UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
1090149-05321-00 ...SCREW...SCREW
-
114TR-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
124TR-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
134TR-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
143YF-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
154TR-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
