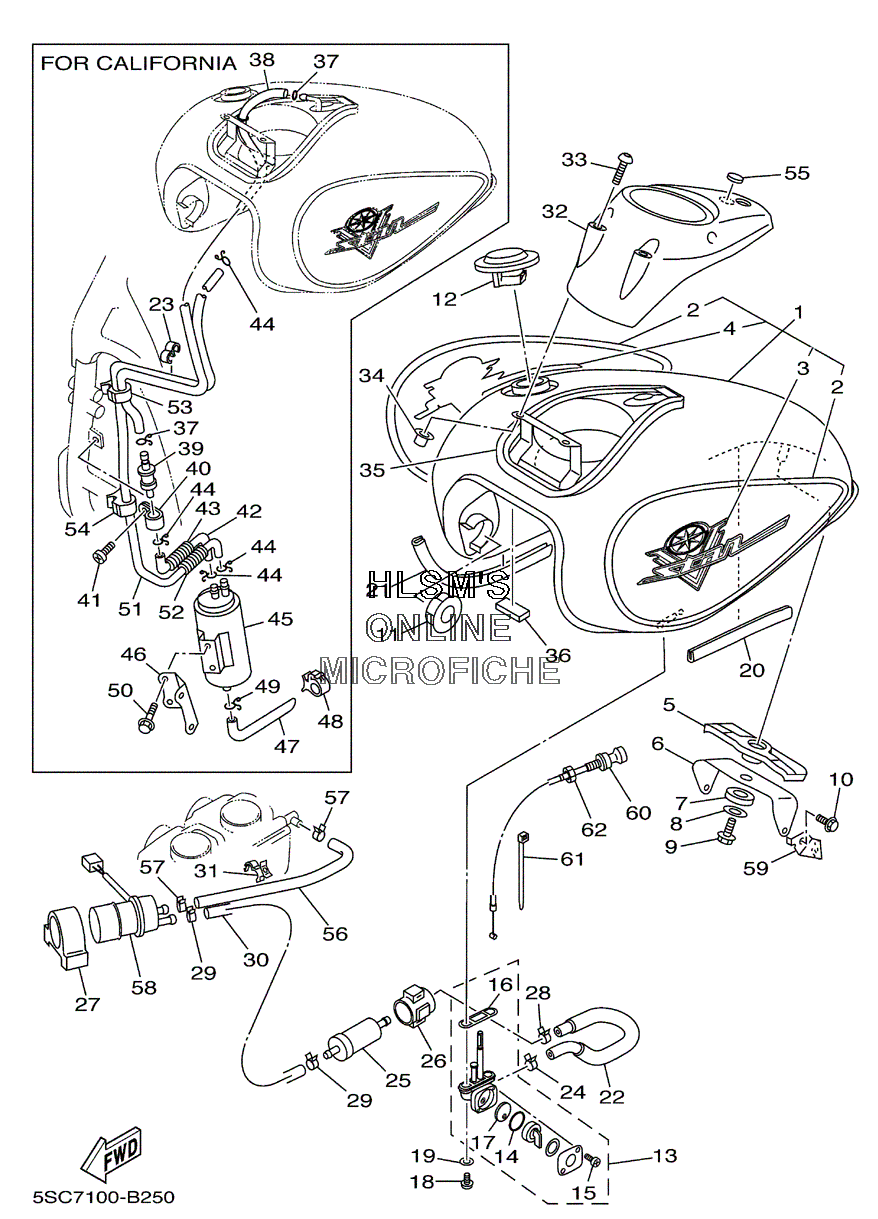

FUEL TANK для Yamaha XVS 650 AT V STAR SILVERADO - 2003 года выпуска
-
№АртикулНазвание
-
14TR-Y2410-U1-X1 FUEL TANK COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9)) (EXCEPT CALIF)FUEL TANK COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9)) (EXCEPT CALIF)
-
14TR-Y2410-T2-04 FUEL TANK COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9)) (CALIF ONLY)FUEL TANK COMP. (DEEP SCARLET (DPS) / LIGHT YELLOWISH GRAY METALLIC (LYNM9)) (CALIF ONLY)
-
25BN-24240-V0-00 ...GRAPHIC SET...GRAPHIC SET
-
35SC-24161-10-00 ...EMBLEM 1...EMBLEM 1
-
45SC-24162-10-00 ...EMBLEM 2...EMBLEM 2
-
54TR-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
64TR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
74TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
890201-060S9-00 WASHER, PLATEWASHER, PLATE
-
992017-06012-00 SCREW, (3GG)SCREW, (3GG)
-
1095817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
114H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
124NK-24602-10-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
125BN-24602-00-00 CAP ASSY (EXCEPT CALIF)CAP ASSY (EXCEPT CALIF)
-
133JN-24500-01-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
143AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1598580-03008-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
164X8-24512-00-00 ...GASKET...GASKET
-
173AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1890149-06011-00 SCREWSCREW
-
1990202-05187-00 WASHER, PLATEWASHER, PLATE
-
201FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
211HX-24188-01-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
224TR-24313-00-00 PIPE 3PIPE 3
-
2390464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
2490467-10038-00 CLIPCLIP
-
251FK-24560-10-00 FILTER ASSYFILTER ASSY
-
261FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
274EB-24398-00-00 BAND 1BAND 1
-
2890467-11044-00 CLIPCLIP
-
2990467-11044-00 CLIPCLIP
-
304TR-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3190464-15192-00 CLAMPCLAMP
-
324TR-2171A-00-00 COVER, TOPCOVER, TOP
-
3390149-05299-00 SCREWSCREW
-
3490179-05523-00 NUTNUT
-
354TR-2414G-00-00 SEALSEAL
-
363XV-21717-00-00 DAMPERDAMPER
-
3790467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
385BN-24312-01-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
395PX-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
4090461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4198907-05010-00 SCREW, BIND (CALIF ONLY)SCREW, BIND (CALIF ONLY)
-
425BN-24314-01-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
435BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
4490467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
452JU-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
465BN-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
475BN-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
4890464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4990467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5095817-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
515BN-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
525BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
5390464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5490464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
554TR-2413B-00-00 EMBLEMEMBLEM
-
564TR-14294-00-00 HOSEHOSE
-
5790467-11044-00 CLIPCLIP
-
583YX-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
594TR-2637G-00-00 HOLDER, WIREHOLDER, WIRE
-
604TR-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
611UA-82591-00-00 BANDBAND
-
621VJ-26333-00-00 NUTNUT
