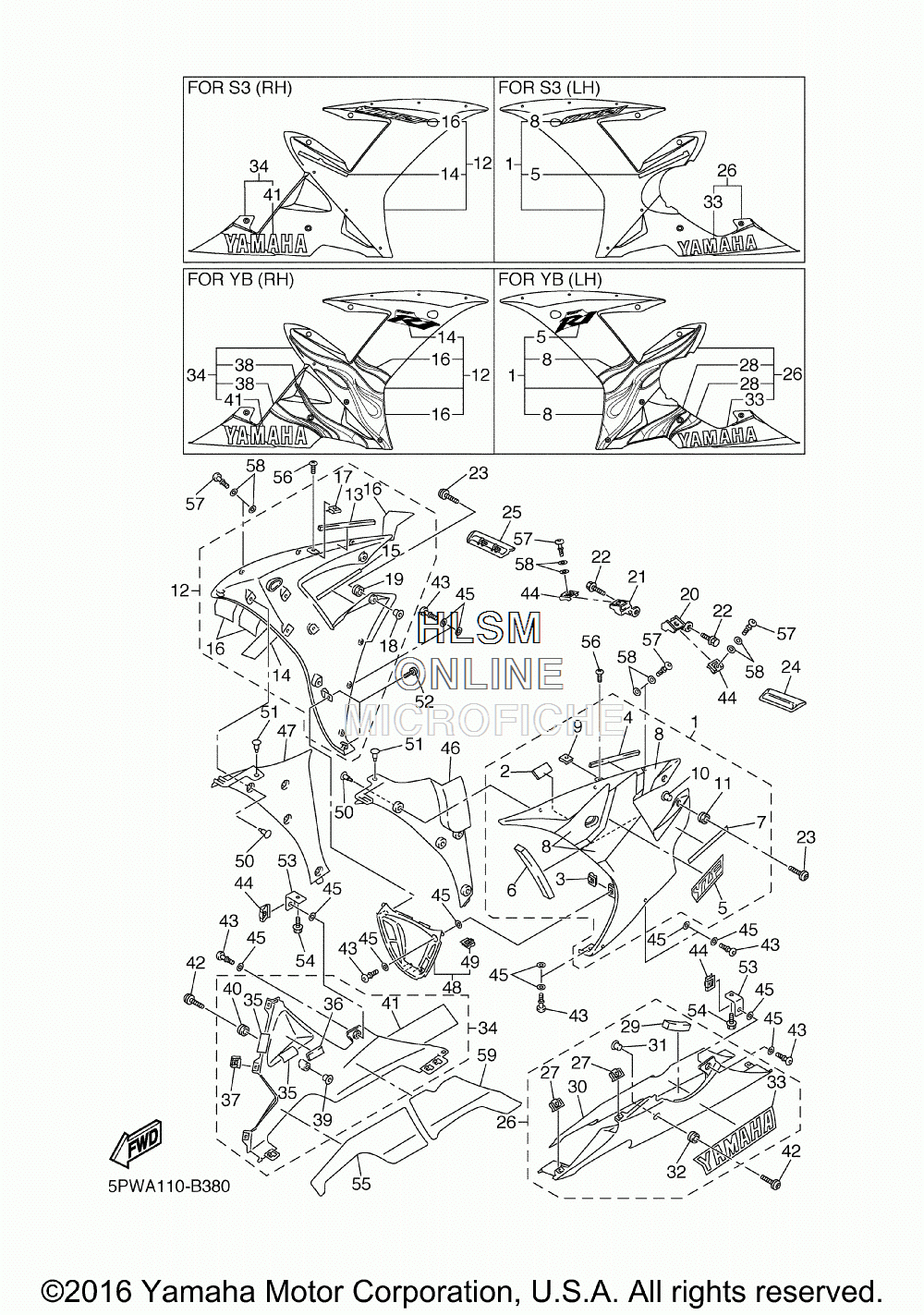

COWLING 2 для Yamaha YZF-R1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15PW-Y283U-80-P1 PANEL ASSEMBLY 1 (FOR DPBMC)PANEL ASSEMBLY 1 (FOR DPBMC)
-
15PW-Y283U-70-P2 PANEL ASSEMBLY 1PANEL ASSEMBLY 1
-
15PW-Y283U-90-0X PANEL ASSEMBLY 1PANEL ASSEMBLY 1
-
21TX-28371-00-00 ...DAMPER...DAMPER
-
35PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
45PW-28307-00-00 ...SEAL...SEAL
-
55PW-2839H-00-00 ...EMBLEM 1 (FOR DPBMC)...EMBLEM 1 (FOR DPBMC)
-
55PW-2834C-A0-00 ...EMBLEM 1...EMBLEM 1
-
55PW-28328-21-00 ...EMBLEM...EMBLEM
-
65PW-28371-00-00 ...DAMPER...DAMPER
-
75PW-28328-50-00 ...EMBLEM (FOR DPBMC)...EMBLEM (FOR DPBMC)
-
85PW-2836C-01-00 ...EMBLEM...EMBLEM
-
85PW-28301-00-00 ...GRAPHIC SET, LOWER COVER 1 (FOR DPBMC)...GRAPHIC SET, LOWER COVER 1 (FOR DPBMC)
-
85PW-283B1-A0-00 ...GRAPHIC SET...GRAPHIC SET
-
990183-05074-00 ...NUT, SPRING...NUT, SPRING
-
1090387-065J6-00 ...COLLAR...COLLAR
-
1190480-12596-00 ...GROMMET...GROMMET
-
125PW-Y283V-80-P1 PANEL ASSEMBLY 2 (FOR DPBMC)PANEL ASSEMBLY 2 (FOR DPBMC)
-
125PW-Y283V-70-P2 PANEL ASSEMBLY 2 (FOR S3)PANEL ASSEMBLY 2 (FOR S3)
-
125PW-Y283V-90-0X PANEL ASSEMBLY 2 (FOR YB)PANEL ASSEMBLY 2 (FOR YB)
-
135PW-28307-00-00 ...SEAL...SEAL
-
145PW-2839H-00-00 ...EMBLEM 1 (FOR DPBMC)...EMBLEM 1 (FOR DPBMC)
-
145PW-28338-21-00 ...EMBLEM (FOR S3)...EMBLEM (FOR S3)
-
145PW-2835C-A0-00 ...EMBLEM 2 (FOR YB)...EMBLEM 2 (FOR YB)
-
155PW-28338-50-00 ...EMBLEM (FOR DPBMC)...EMBLEM (FOR DPBMC)
-
165PW-2836C-01-00 ...EMBLEM (FOR S3)...EMBLEM (FOR S3)
-
165PW-28303-00-00 ...GRAPHIC SET, LOWER COVER 2 (FOR DPBMC)...GRAPHIC SET, LOWER COVER 2 (FOR DPBMC)
-
165PW-283B2-A0-00 ...GRAPHIC SET (FOR YB)...GRAPHIC SET (FOR YB)
-
1790183-05074-00 ...NUT, SPRING...NUT, SPRING
-
1890387-065J6-00 ...COLLAR...COLLAR
-
1990480-12596-00 ...GROMMET...GROMMET
-
205PW-2836A-00-00 BRACKET 1BRACKET 1
-
215PW-2836E-00-00 BRACKET 2BRACKET 2
-
2290119-06052-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390149-06302-00 SCREWSCREW
-
245PW-2832M-00-00 PROTECTOR 1PROTECTOR 1
-
255PW-2832N-00-00 PROTECTOR 2PROTECTOR 2
-
265PW-Y2808-20-P2 COVER ASSY, UNDER (FOR DPBMC)COVER ASSY, UNDER (FOR DPBMC)
-
265PW-Y2808-10-P1 COVER, LOWER (FOR S3)COVER, LOWER (FOR S3)
-
265PW-Y2808-30-0X COVER ASSY, UNDER (FOR YB)COVER ASSY, UNDER (FOR YB)
-
275PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
285PW-28301-A0-00 ...GRAPHIC SET, LOWER COVER 1 (FOR YB)...GRAPHIC SET, LOWER COVER 1 (FOR YB)
-
295PW-2834E-00-00 ...DAMPER 1...DAMPER 1
-
305PW-2848L-00-00 ...SEAT 3...SEAT 3
-
3190387-065J6-00 ...COLLAR...COLLAR
-
3290480-12596-00 ...GROMMET...GROMMET
-
3399241-00320-00 ...EMBLEM, YAMAHA (FOR DPBMC)...EMBLEM, YAMAHA (FOR DPBMC)
-
3399244-00320-00 ...EMBLEM, YAMAHA (FOR YB)...EMBLEM, YAMAHA (FOR YB)
-
3399247-00320-00 ...EMBLEM, YAMAHA (FOR S3)...EMBLEM, YAMAHA (FOR S3)
-
345PW-Y2809-21-P2 COVER ASSY 2, UNDER (FOR DPBMC)COVER ASSY 2, UNDER (FOR DPBMC)
-
345PW-Y2809-11-P1 COVER ASSY 2, UNDER (FOR S3)COVER ASSY 2, UNDER (FOR S3)
-
345PW-Y2809-31-0X COVER ASSY 2, UNDER (FOR YB)COVER ASSY 2, UNDER (FOR YB)
-
351JK-21735-00-00 ...SEAL 2...SEAL 2
-
361TX-28371-00-00 ...DAMPER...DAMPER
-
375PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
385PW-28303-A0-00 ...GRAPHIC SET, LOWER COVER 2 (FOR YB)...GRAPHIC SET, LOWER COVER 2 (FOR YB)
-
3990387-065J6-00 ...COLLAR...COLLAR
-
4090480-12596-00 ...GROMMET...GROMMET
-
4199241-00320-00 ...EMBLEM, YAMAHA (FOR DPBMC)...EMBLEM, YAMAHA (FOR DPBMC)
-
4199247-00320-00 ...EMBLEM, YAMAHA (FOR S3)...EMBLEM, YAMAHA (FOR S3)
-
4199244-00320-00 ...EMBLEM, YAMAHA (FOR YB)...EMBLEM, YAMAHA (FOR YB)
-
4290149-06302-00 SCREWSCREW
-
435PW-28386-00-00 HEADHEAD
-
445PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
452TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
465PW-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
475PW-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
485PW-Y283S-00-00 PANEL, INNER 3PANEL, INNER 3
-
495PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
5090269-06081-00 RIVETRIVET
-
5190269-07077-00 RIVETRIVET
-
5297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
535PW-2836F-00-00 BRACKET 3BRACKET 3
-
5495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
555PW-2848M-00-00 SEAT 4SEAT 4
-
5690154-05013-00 SCREW, BINDINGSCREW, BINDING
-
575PW-28386-00-00 HEADHEAD
-
582TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
595PW-2848N-00-00 SEAT 5SEAT 5
