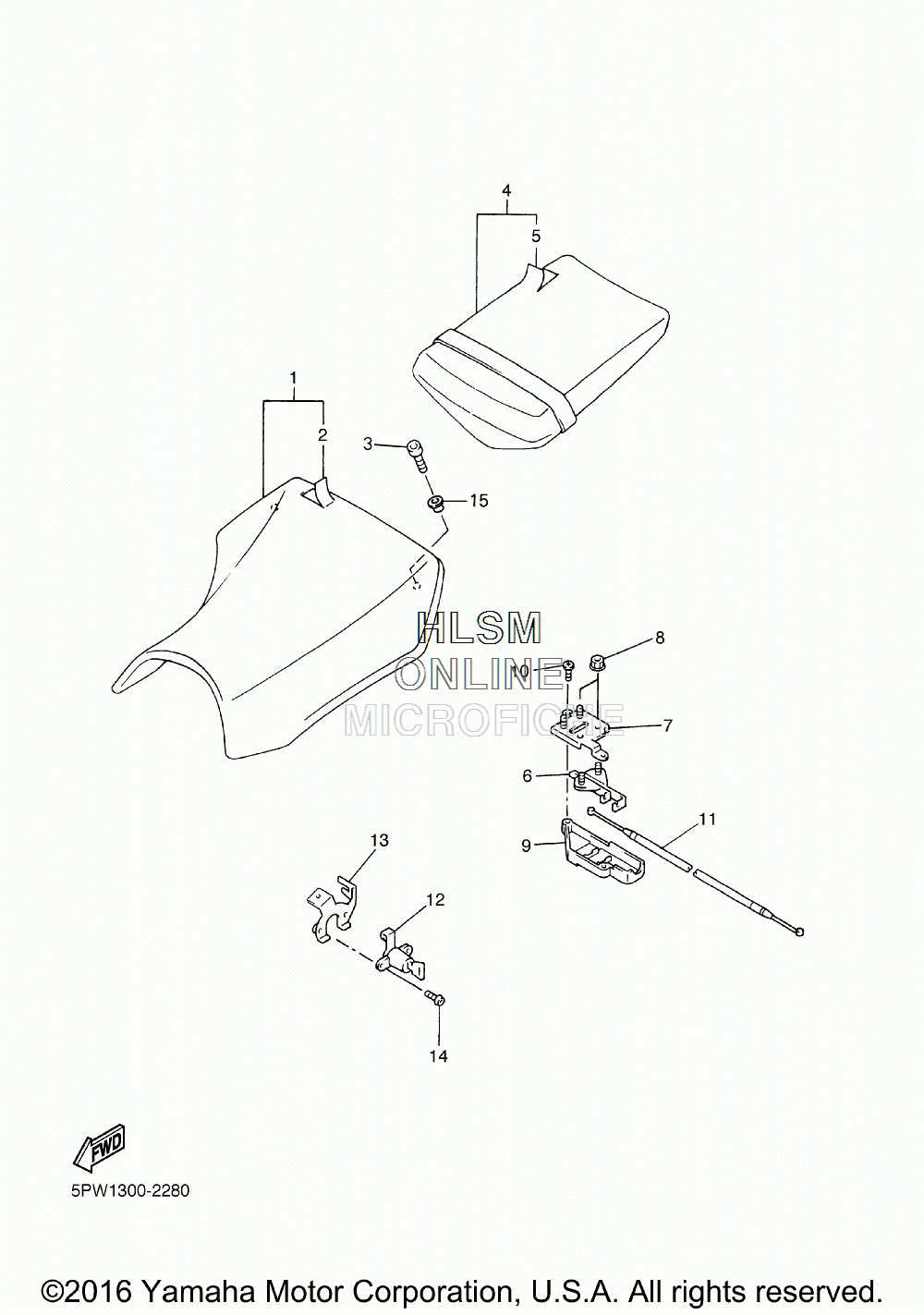

SEAT для Yamaha YZF-R1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15PW-24710-01-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25PW-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45PW-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55PW-24751-00-00 ...COVER, TANDEM SEAT...COVER, TANDEM SEAT
-
64BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
75JJ-24792-01-00 PLATEPLATE
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
95JJ-2475X-01-00 COVER, 2COVER, 2
-
1097707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
115JJ-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
122TV-W2470-00-00 ROTOR SETROTOR SET
-
135PW-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1490149-06308-00 SCREWSCREW
-
1590387-06066-00 COLLARCOLLAR
