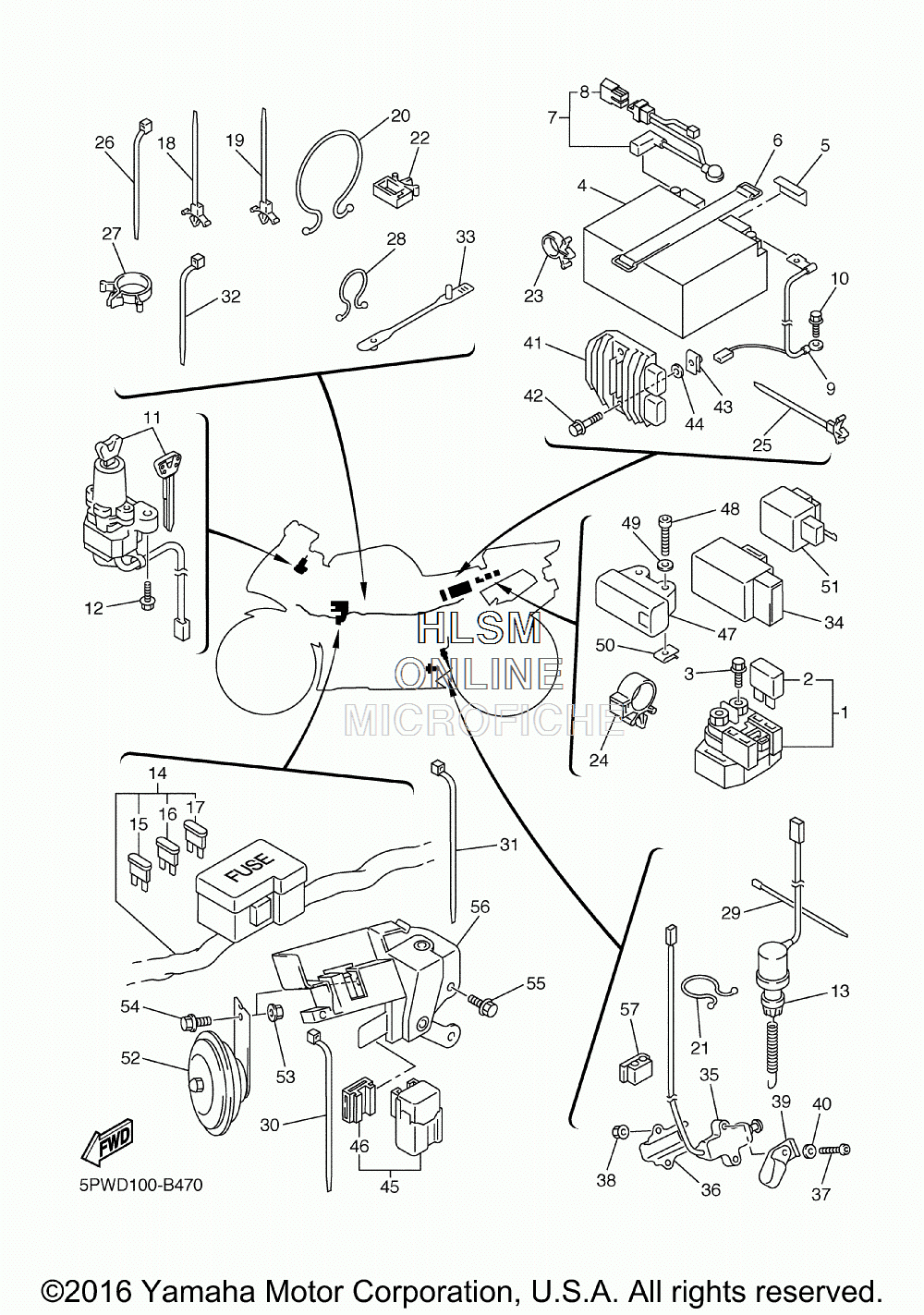

ELECTRICAL 2 для Yamaha YZF-R1 CALIFORNIA - 2003 года выпуска
-
№АртикулНазвание
-
15JW-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
236Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
44TX-82100-02-00 BATTERY ASSY (GS GT12B-4)BATTERY ASSY (GS GT12B-4)
-
52AL-84553-00-00 DAMPERDAMPER
-
65JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
75PW-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
85JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
95PW-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
114BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
115PW-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
1290109-080G5-00 BOLTBOLT
-
135PW-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
145PW-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
155JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
165JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
175JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
1890464-12036-00 CLAMPCLAMP
-
1990464-12036-00 CLAMPCLAMP
-
2090464-37257-00 CLAMPCLAMP
-
2190464-16039-00 CLAMPCLAMP
-
2290464-07004-00 CLAMPCLAMP
-
2390464-13133-00 CLAMPCLAMP
-
2490464-16006-00 CLAMPCLAMP
-
2590464-12036-00 CLAMPCLAMP
-
2690464-13073-00 CLAMPCLAMP
-
2790464-15157-00 CLAMPCLAMP
-
2890464-16039-00 CLAMPCLAMP
-
295Y9-12491-00-00 CLAMP 1CLAMP 1
-
3090464-13073-00 CLAMPCLAMP
-
3190464-13073-00 CLAMPCLAMP
-
3290464-13077-00 CLAMPCLAMP
-
3390464-17001-00 CLAMPCLAMP
-
345PW-81950-00-00 RELAY ASSY (5PW-00)RELAY ASSY (5PW-00)
-
355PX-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
365JJ-82388-00-00 PLATEPLATE
-
3792017-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
3990461-10002-00 CLAMPCLAMP
-
4090201-057H5-00 WASHER, PLATEWASHER, PLATE
-
415JW-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
4295827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
4390183-06053-00 NUT, SPRINGNUT, SPRING
-
4490202-06001-00 WASHER, PLATEWASHER, PLATE
-
455JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
465JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
475PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4891317-04025-00 BOLTBOLT
-
4990201-047A2-00 WASHER, PLATEWASHER, PLATE
-
5090183-04039-00 NUT, SPRINGNUT, SPRING
-
514MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
523TB-83371-01-00 HORNHORN
-
5395707-06500-00 NUT, FLANGENUT, FLANGE
-
5495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
565PW-2134K-00-00 BRACKET, HORNBRACKET, HORN
-
5790464-06004-00 CLAMPCLAMP
