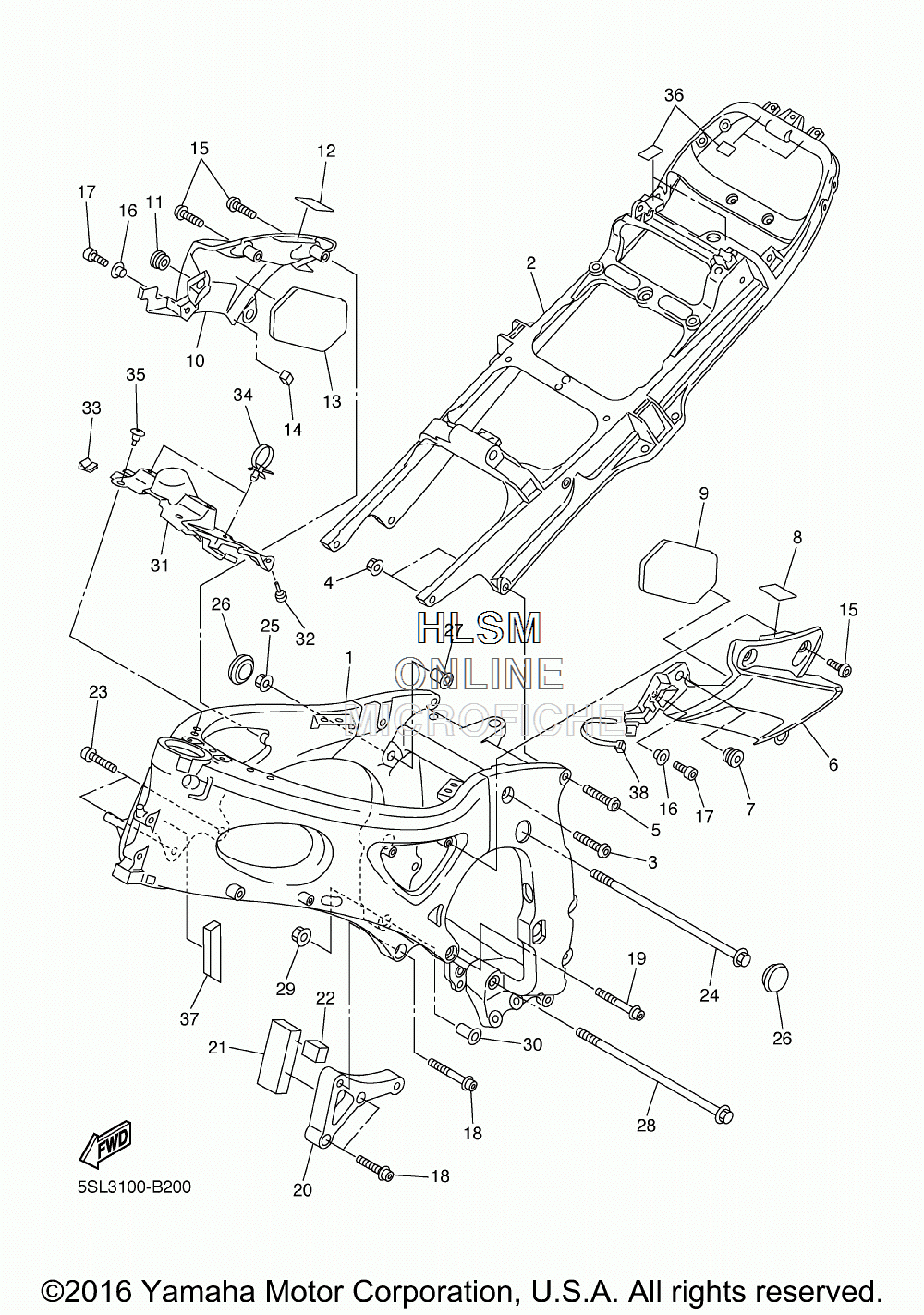

FRAME для Yamaha YZF-R6 - 2003 года выпуска
-
№АртикулНазвание
-
15SL-21110-00-00 FRAME COMP.FRAME COMP.
-
25SL-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10007-00 SCREWSCREW
-
490185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590149-10006-00 SCREWSCREW
-
65SL-2117V-00-00 COVER 7COVER 7
-
790480-13398-00 GROMMETGROMMET
-
83KJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
95SL-28415-00-00 DAMPER 1DAMPER 1
-
105SL-2117W-00-00 COVER 8COVER 8
-
1190480-13398-00 GROMMETGROMMET
-
123KJ-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
135SL-28415-00-00 DAMPER 1DAMPER 1
-
145SL-21649-00-00 DAMPERDAMPER
-
1590111-05006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1690387-050X4-00 COLLARCOLLAR
-
1791317-05012-00 BOLTBOLT
-
1890110-10008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990110-10007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205SL-21283-00-00 SUPPORT, ENGINESUPPORT, ENGINE
-
215SL-21488-00-00 DAMPERDAMPER
-
225SL-21486-00-00 DAMPER 2DAMPER 2
-
2390110-10008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490105-10042-00 BOLT, FLANGEBOLT, FLANGE
-
2590179-10696-00 NUTNUT
-
2690338-27007-00 PLUGPLUG
-
275EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2890105-106A2-00 BOLT, FLANGEBOLT, FLANGE
-
2990179-10696-00 NUTNUT
-
305EB-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
315SL-2117M-00-00 COVER 2COVER 2
-
3236Y-21639-00-00 DAMPER 2DAMPER 2
-
335SL-21208-00-00 SEAL SET, 1SEAL SET, 1
-
3490464-12036-00 CLAMPCLAMP
-
3590269-07077-00 RIVETRIVET
-
365SL-21268-00-00 SEALSEAL
-
375SL-2139X-00-00 DAMPERDAMPER
-
3890464-15195-00 CLAMPCLAMP
