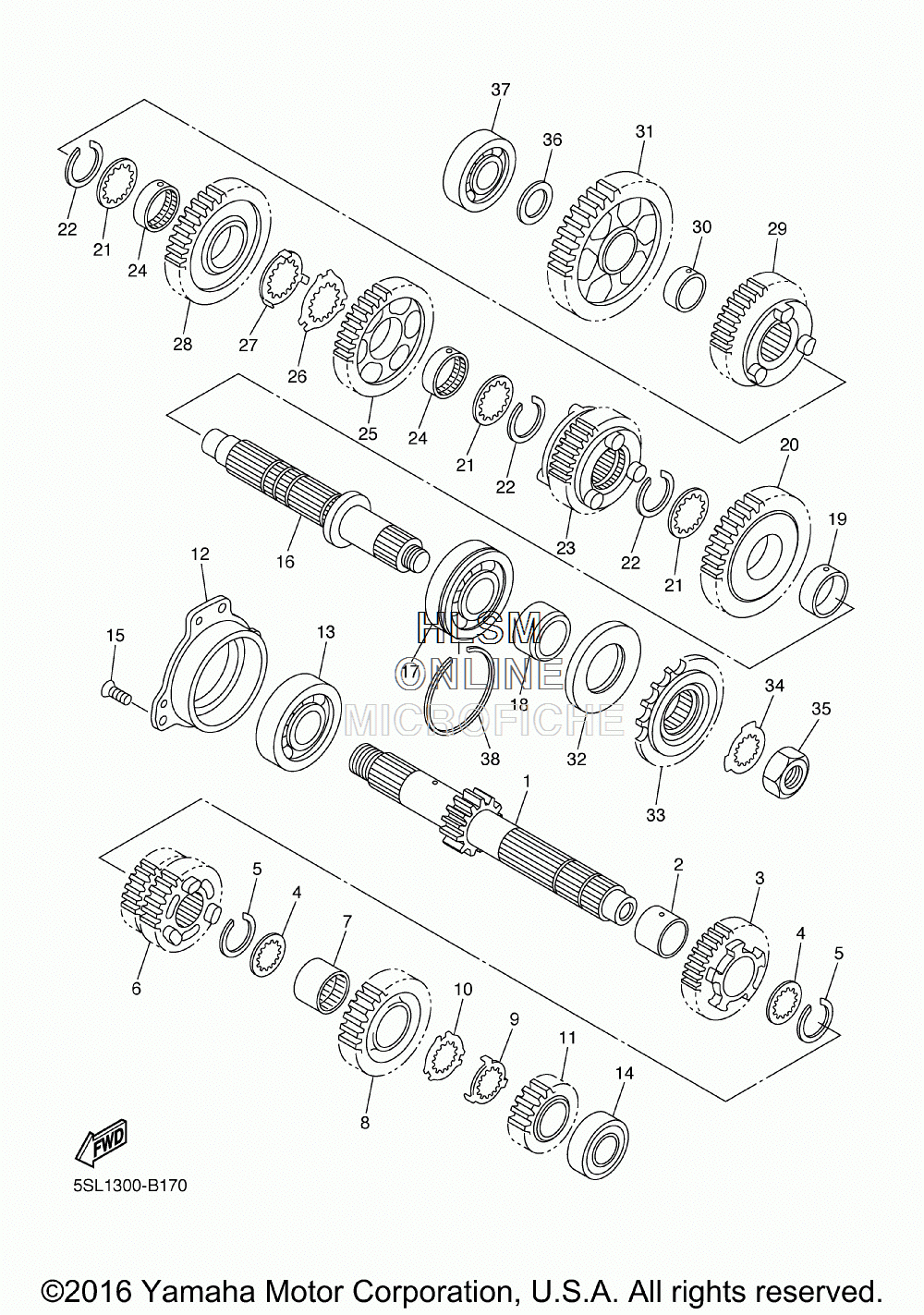

TRANSMISSION для Yamaha YZF-R6 - 2003 года выпуска
-
№АртикулНазвание
-
15SL-17411-00-00 AXLE, MAIN (13T)AXLE, MAIN (13T)
-
290387-253M6-00 COLLARCOLLAR
-
35SL-17151-20-00 GEAR, 5TH PINION (21T)GEAR, 5TH PINION (21T)
-
490209-21332-00 WASHERWASHER
-
593440-25185-00 CIRCLIPCIRCLIP
-
65SL-17131-20-00 GEAR, 3RD PINION (18T/24T)GEAR, 3RD PINION (18T/24T)
-
790387-2513E-00 COLLARCOLLAR
-
85SL-17161-00-00 GEAR, 6TH PINION (24T)GEAR, 6TH PINION (24T)
-
990209-22352-00 WASHERWASHER
-
1090209-21351-00 WASHERWASHER
-
115SL-17121-00-00 GEAR, 2ND PINION (19T)GEAR, 2ND PINION (19T)
-
125EB-15163-01-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1393306-30525-00 BEARINGBEARING
-
1493306-20464-00 BEARINGBEARING
-
1590151-06008-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
165SL-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1793306-30546-00 BEARINGBEARING
-
1890387-2504A-00 COLLARCOLLAR
-
1990387-2813C-00 COLLARCOLLAR
-
205SL-17221-10-00 GEAR, 2ND WHEEL (37T)GEAR, 2ND WHEEL (37T)
-
2190209-25342-00 WASHERWASHER
-
2293440-28062-00 CIRCLIPCIRCLIP
-
235SL-17261-10-00 GEAR, 6TH WHEEL (26T)GEAR, 6TH WHEEL (26T)
-
2490387-2813D-00 COLLARCOLLAR
-
255SL-17241-00-00 GEAR, 4TH WHEEL (32T)GEAR, 4TH WHEEL (32T)
-
2690209-25349-00 WASHERWASHER
-
2790209-25350-00 WASHERWASHER
-
285SL-17231-00-00 GEAR, 3RD WHEEL (28T)GEAR, 3RD WHEEL (28T)
-
295SL-17251-00-00 GEAR, 5TH WHEEL (25T)GEAR, 5TH WHEEL (25T)
-
3090387-2202V-00 COLLARCOLLAR
-
315SL-17211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
3293102-35423-00 OIL SEALOIL SEAL
-
335SL-17460-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
3490215-21290-00 WASHER, LOCKWASHER, LOCK
-
3590179-18667-00 NUTNUT
-
3690201-20278-00 WASHER, PLATEWASHER, PLATE
-
3793306-20464-00 BEARINGBEARING
-
38278-17424-01-00 CIRCLIP 1CIRCLIP 1
