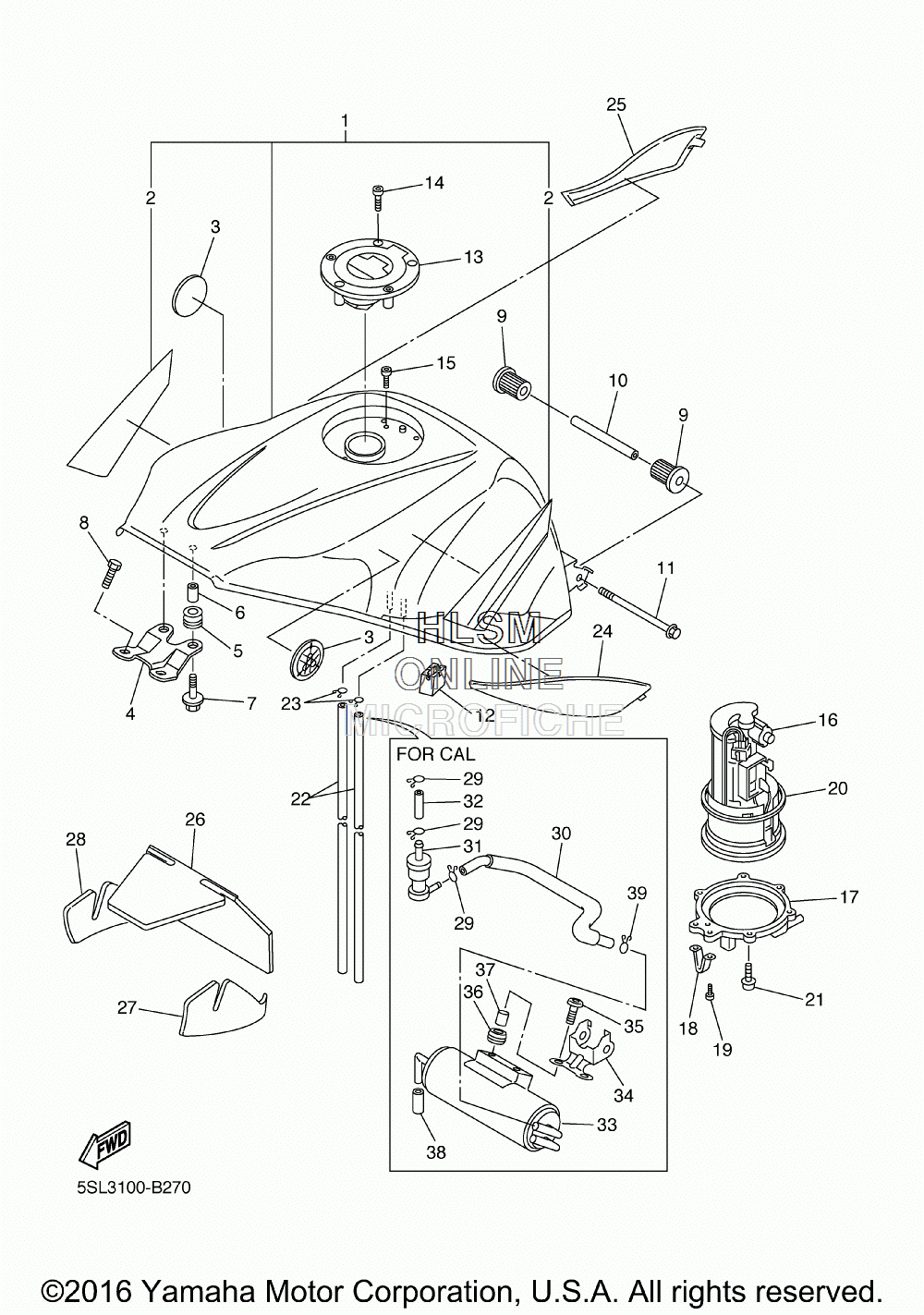

FUEL TANK для Yamaha YZF-R6 - 2003 года выпуска
-
№АртикулНазвание
-
15SL-Y2410-30-02 FUEL TANK COMP. (OPT) (DPBMC)FUEL TANK COMP. (OPT) (DPBMC)
-
15SL-YK241-M0-P0 FUEL TANK COMP. (OPT) (S3)FUEL TANK COMP. (OPT) (S3)
-
25SL-24240-10-00 ...GRAPHIC SET (DPBMC)...GRAPHIC SET (DPBMC)
-
35SL-2413B-00-00 EMBLEMEMBLEM
-
45SL-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
590480-15483-00 GROMMETGROMMET
-
690387-06054-00 COLLARCOLLAR
-
790119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890110-06079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1090387-06055-00 COLLARCOLLAR
-
1195827-06090-00 BOLT, FLANGEBOLT, FLANGE
-
125SL-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
135JJ-24602-00-00 CAP ASSYCAP ASSY
-
1490110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1591317-05010-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
165PW-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
175SL-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
185PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1998907-05008-00 SCREW, BINDSCREW, BIND
-
205JW-24486-00-00 O-RINGO-RING
-
2190110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290445-102G9-00 HOSE (L650)HOSE (L650)
-
2390467-10008-00 CLIPCLIP
-
245SL-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
255SL-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
265SL-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
275SL-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
285SL-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
2990467-10008-00 CLIPCLIP
-
305SL-24314-00-00 PIPE 4PIPE 4
-
315RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3290445-11732-00 HOSE (L30)HOSE (L30)
-
335SL-24170-00-00 CANISTER ASSYCANISTER ASSY
-
345SL-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
3590110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3690480-13018-00 GROMMETGROMMET
-
3790387-062L2-00 COLLARCOLLAR
-
3890445-11418-00 HOSE (L18)HOSE (L18)
-
3990467-10008-00 CLIPCLIP
