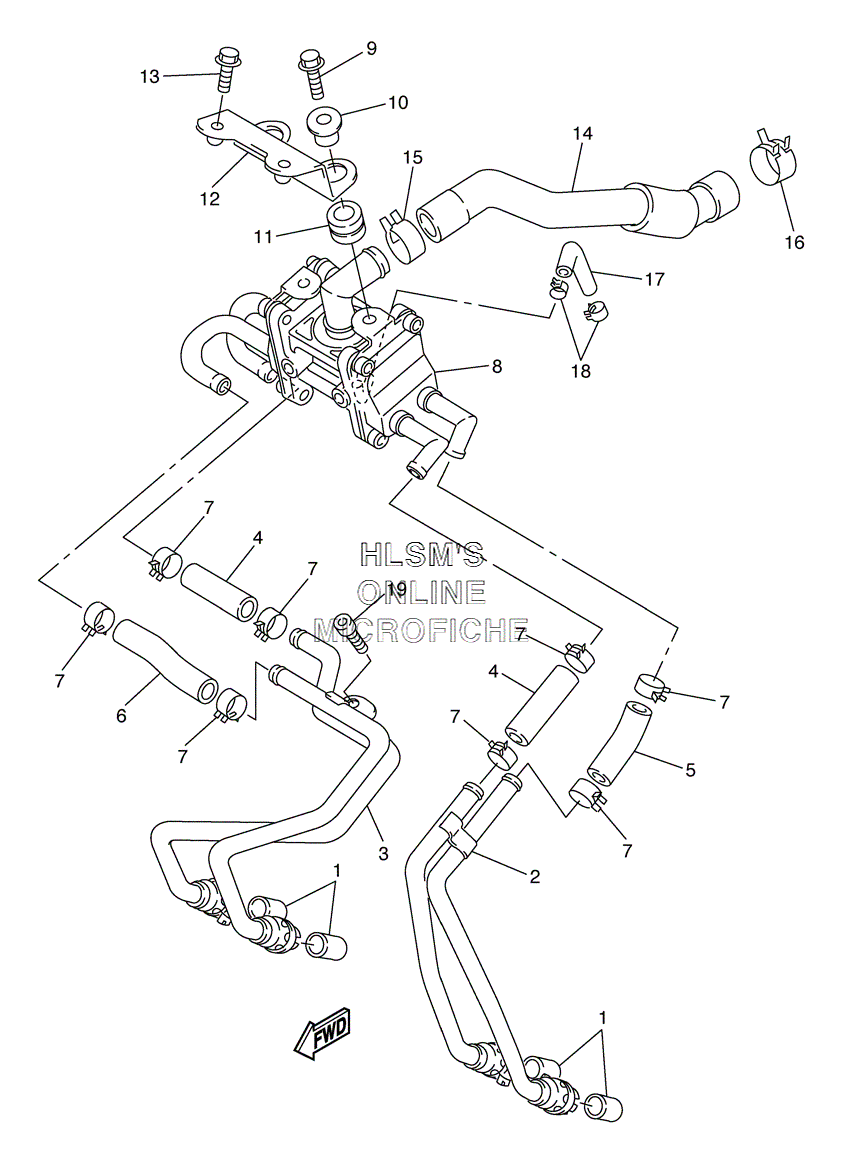

AIR INDUCTION SYSTEM для Yamaha FZ 1000 FZ1 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
14KM-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
25LV-14872-00-00 PIPE 2PIPE 2
-
35LV-14873-00-00 PIPE 3PIPE 3
-
45JJ-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
55LV-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
65LV-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
790467-15054-00 CLIPCLIP
-
85LV-14803-00-00 AIR INDUCTION SYSTEM ASSY.AIR INDUCTION SYSTEM ASSY.
-
995827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-07391-00 COLLARCOLLAR
-
1190480-15316-00 GROMMETGROMMET
-
125LV-14867-00-00 BRACKETBRACKET
-
1395827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
145LV-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
1590467-22100-00 CLIPCLIP
-
1690467-23177-00 CLIPCLIP
-
1790445-09007-00 HOSEHOSE
-
1890467-08092-00 CLIPCLIP
-
1991314-06012-00 BOLTBOLT
