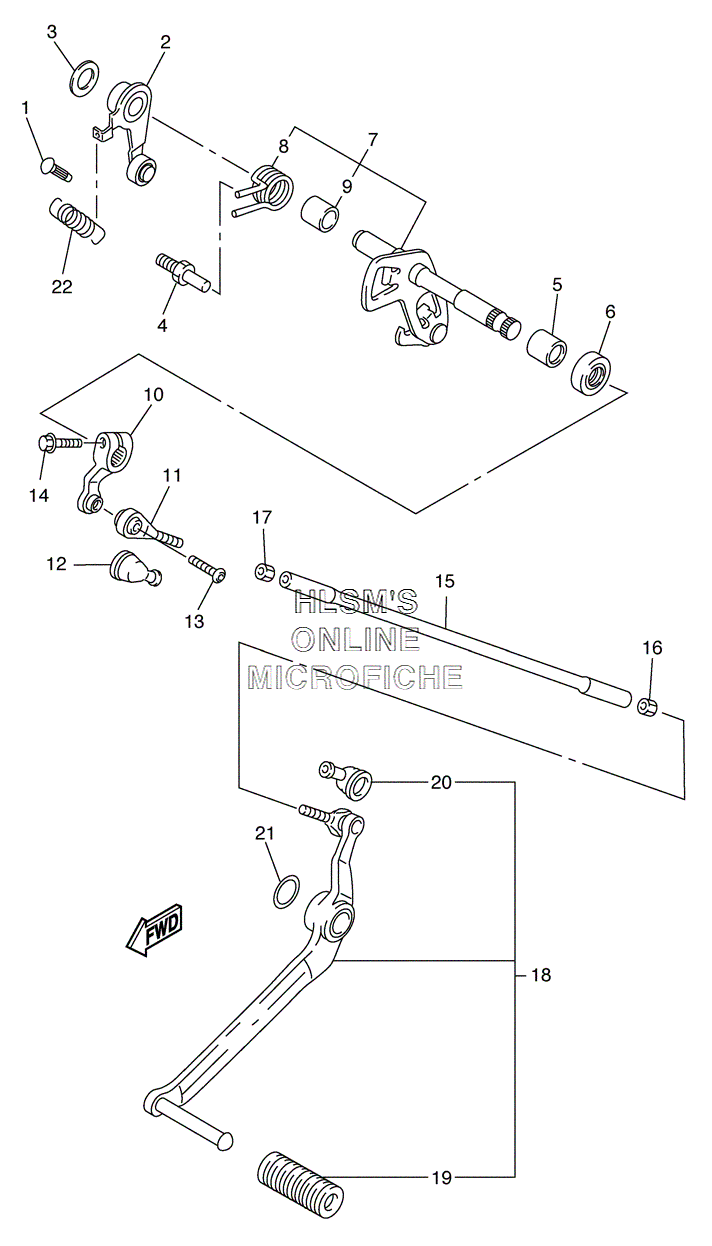

SHIFT SHAFT для Yamaha FZ 1000 FZ1 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
25JJ-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
390201-120K4-00 WASHER, PLATEWASHER, PLATE
-
44XV-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
593317-11287-00 BEARINGBEARING
-
693101-12004-00 OIL SEALOIL SEAL
-
75LV-18101-00-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
890508-295B2-00 ...SPRING, TORSION...SPRING, TORSION
-
990387-1211D-00 ...COLLAR...COLLAR
-
105EB-18112-01-00 ARM, SHIFTARM, SHIFT
-
115LV-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
124XV-18154-00-00 COVER, DUSTCOVER, DUST
-
1390111-06019-00 BOLTBOLT
-
1495824-06020-00 BOLT, FLANGEBOLT, FLANGE
-
155LV-18115-00-00 ROD, SHIFTROD, SHIFT
-
1690170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1795304-06700-00 NUTNUT
-
185LV-18110-00-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
195EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
204XV-18154-00-00 ...COVER, DUST...COVER, DUST
-
2190206-17084-00 WASHER, WAVEWASHER, WAVE
-
2290506-14002-00 SPRING, TENSIONSPRING, TENSION
