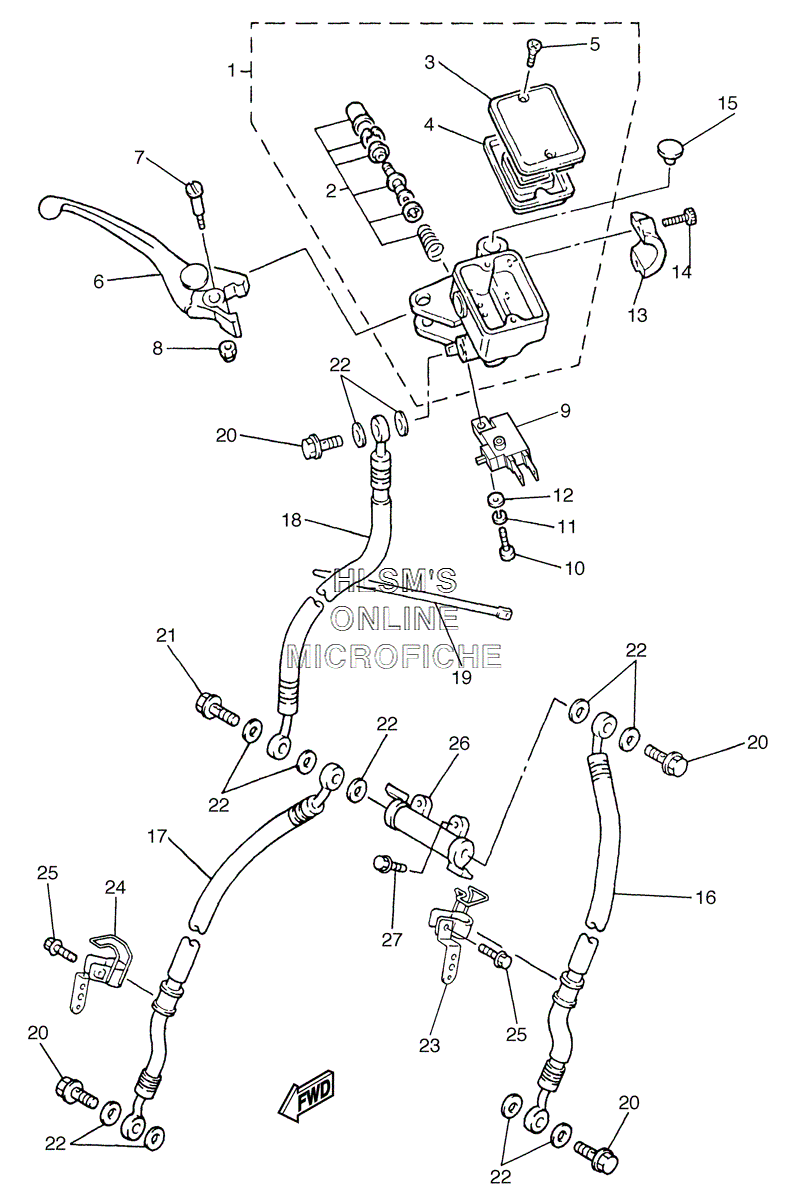

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ 1000 FZ1 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15DM-W2587-01-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
25DM-W0041-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34HM-W2585-01-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
44HM-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
598706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65EB-83922-01-00 LEVER 2LEVER 2
-
73FV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895606-06100-00 NUT, UNUT, U
-
94HM-83980-00-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
-
1098502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1292902-04600-00 WASHER, PLATEWASHER, PLATE
-
134HM-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1491316-06020-00 BOLTBOLT
-
1590338-09012-00 PLUGPLUG
-
165LV-25872-01-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
175LV-25873-01-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
185LV-25874-01-00 HOSE, BRAKEHOSE, BRAKE
-
191UA-82591-00-00 BANDBAND
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190401-10160-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
235LV-25875-20-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
245LV-25876-20-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2590105-060A0-00 BOLT, FLANGEBOLT, FLANGE
-
2642H-25885-01-00 JOINTJOINT
-
2795027-06020-00 BOLT, FLANGEBOLT, FLANGE
