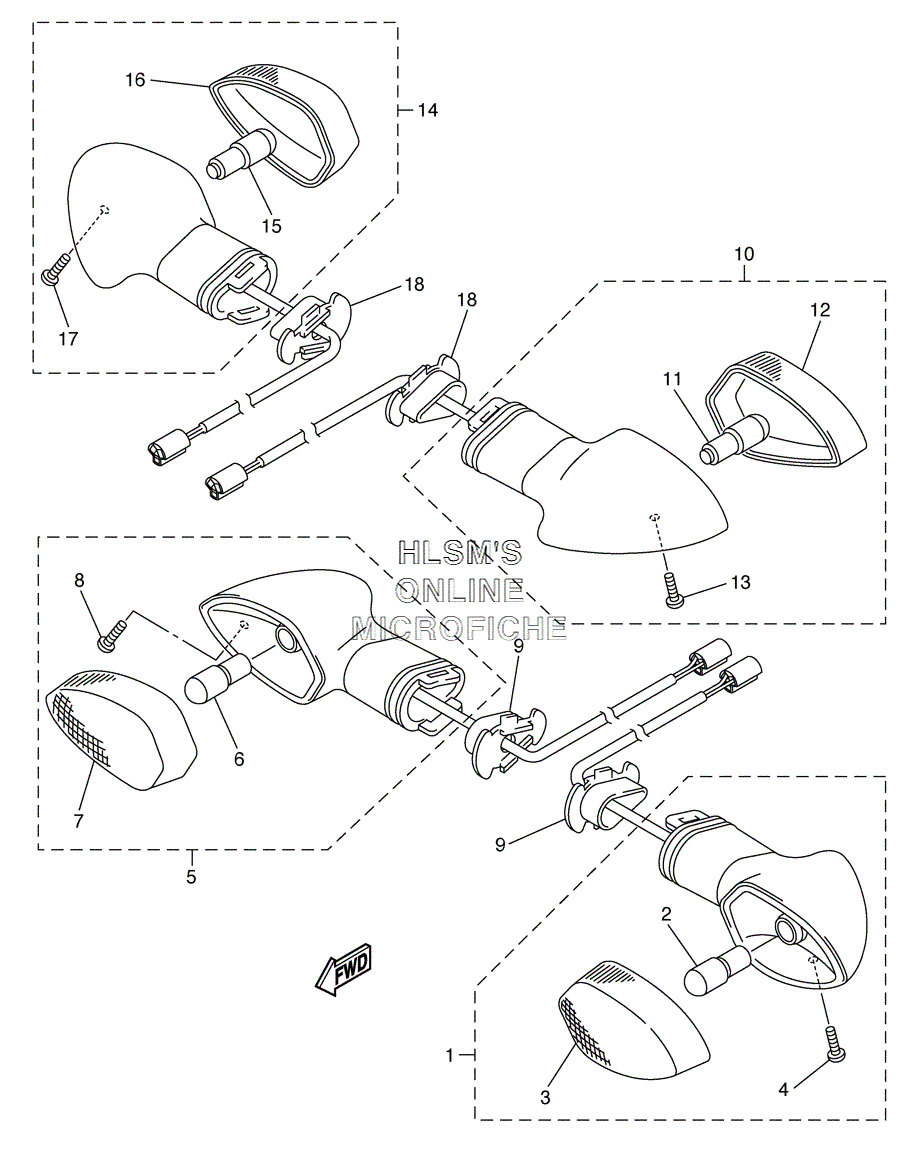

FLASHER LIGHT для Yamaha FZ 600 S FZ6 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15PW-83310-10-00 FRONT FLASHER LIGHT ASSY. 1FRONT FLASHER LIGHT ASSY. 1
-
25GJ-83331-00-00 ......BULB, FLASHER (12V-21/5W T2......BULB, FLASHER (12V-21/5W T2
-
35PW-8333A-10-00 ...LENS COMP...LENS COMP
-
497706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55PW-83320-10-00 FRONT FLASHER LIGHT ASSY. 2FRONT FLASHER LIGHT ASSY. 2
-
65GJ-83331-00-00 ......BULB, FLASHER (12V-21/5W T2......BULB, FLASHER (12V-21/5W T2
-
75PW-8334A-10-00 ...LENS COMP...LENS COMP
-
897706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
95PW-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
105VX-83330-10-00 REAR FLASHER LIGHT ASSY. 1REAR FLASHER LIGHT ASSY. 1
-
115PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
125PW-8334A-10-00 ...LENS COMP...LENS COMP
-
1397706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
145VX-83340-10-00 FLASHER LIGHT ASSY. 2FLASHER LIGHT ASSY. 2
-
155PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
165PW-8333A-10-00 ...LENS COMP...LENS COMP
-
1797706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
185PW-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
