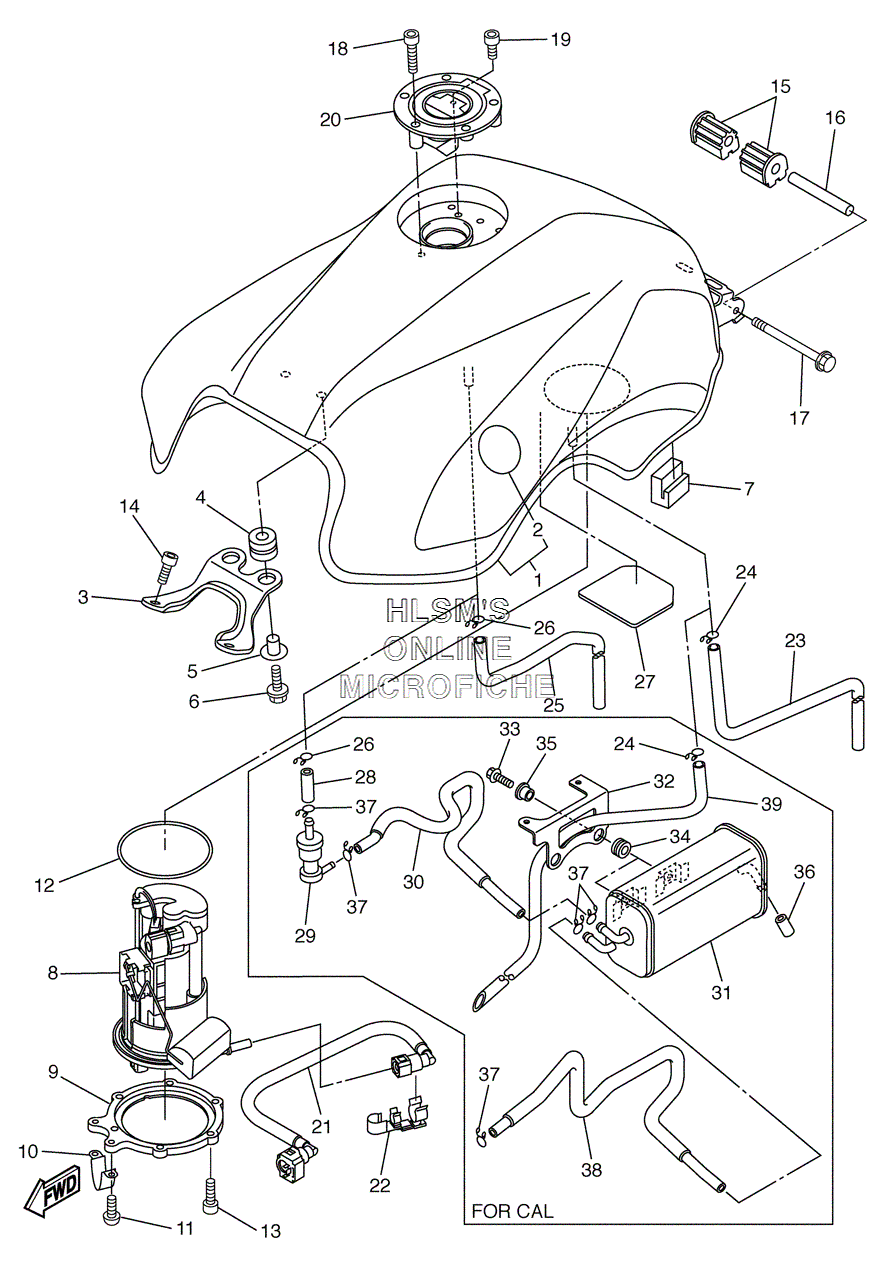

FUEL TANK для Yamaha FZ 600 S FZ6 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15VX-Y2410-30-01 FUEL TANK COMP. (LIQUID SILVER (S3)FUEL TANK COMP. (LIQUID SILVER (S3)
-
15VX-Y2410-30-02 FUEL TANK COMP. (DEEP PURP. BLUE MET. (DPBML)FUEL TANK COMP. (DEEP PURP. BLUE MET. (DPBML)
-
25VX-2411B-00-00 ...TUNING FORK MARK...TUNING FORK MARK
-
35VX-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
490480-15005-00 GROMMETGROMMET
-
590387-06068-00 COLLARCOLLAR
-
690119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75VX-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
85VX-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
95SL-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
105PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1198907-05008-00 SCREW, BINDSCREW, BIND
-
125JW-24486-00-00 O-RINGO-RING
-
1390110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490110-06079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155VX-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1690387-061W6-00 COLLARCOLLAR
-
1795827-06090-00 BOLT, FLANGEBOLT, FLANGE
-
1890110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1991317-05010-00 BOLTBOLT
-
205JJ-24602-00-00 CAP ASSY.CAP ASSY.
-
215VX-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2290464-16005-00 CLAMPCLAMP
-
2390445-10033-00 HOSEHOSE
-
2490467-10008-00 CLIPCLIP
-
2590445-10032-00 HOSEHOSE
-
2690467-10008-00 CLIPCLIP
-
275VX-24141-00-00 PROTECTOR, FUEL TANK (CALIF. ONLY)PROTECTOR, FUEL TANK (CALIF. ONLY)
-
2890445-11732-00 HOSE (L30) (CALIF. ONLY)HOSE (L30) (CALIF. ONLY)
-
295RB-24180-00-00 ROLL OVER VALVE ASSY. (CALIF. ONLY)ROLL OVER VALVE ASSY. (CALIF. ONLY)
-
305VX-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
315VX-24170-00-00 CANISTER ASSY. (CALIF ONLY)CANISTER ASSY. (CALIF ONLY)
-
325VX-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
3395807-06016-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
3490480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
3590387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
3690445-11418-00 HOSE (L18) (CALIF ONLY)HOSE (L18) (CALIF ONLY)
-
3790467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
385VX-14466-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
3990445-10034-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
