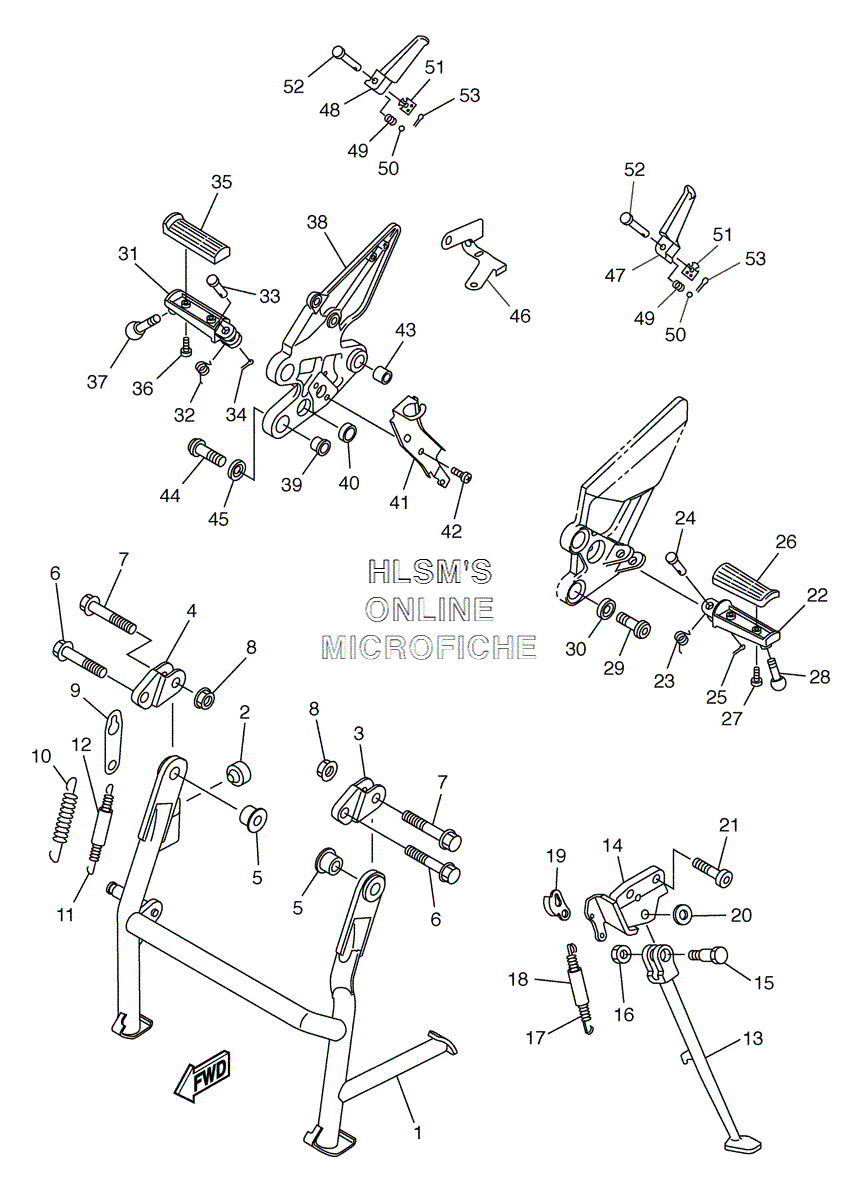

STAND W/ FOOTREST для Yamaha FZ 600 S FZ6 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15VX-27111-03-00 STAND, MAINSTAND, MAIN
-
24GL-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
35VX-27151-02-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
45VX-27152-02-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
55VX-27113-00-00 COLLAR, MAIN STANDCOLLAR, MAIN STAND
-
690105-10083-00 BOLT, FLANGEBOLT, FLANGE
-
790105-10091-00 BOLT, FLANGEBOLT, FLANGE
-
895707-10500-00 NUT, FLANGENUT, FLANGE
-
95VX-27115-00-00 LINK, MAIN STANDLINK, MAIN STAND
-
1090506-50001-00 SPRING, TENSIONSPRING, TENSION
-
1190506-26008-00 SPRING, TENSIONSPRING, TENSION
-
1290445-170K9-00 HOSE (L60)HOSE (L60)
-
135VX-27311-01-00 STAND, SIDESTAND, SIDE
-
145VX-27321-01-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
1590109-10011-00 BOLTBOLT
-
1690185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790506-23007-00 SPRING, TENSIONSPRING, TENSION
-
185VX-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
195VX-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
2090201-12021-00 WASHER, PLATEWASHER, PLATE
-
2190110-10010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
224BH-27451-01-00 FOOTRESTFOOTREST
-
2390508-20572-00 SPRING, TORSIONSPRING, TORSION
-
2491701-08040-00 PIN, CLEVISPIN, CLEVIS
-
2591401-25015-00 PIN, COTTERPIN, COTTER
-
263YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2790157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2890109-083E2-00 BOLTBOLT
-
2990110-08220-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090209-08295-00 WASHERWASHER
-
314BH-27461-01-00 FOOTRESTFOOTREST
-
3290508-20572-00 SPRING, TORSIONSPRING, TORSION
-
3391701-08040-00 PIN, CLEVISPIN, CLEVIS
-
3491401-25015-00 PIN, COTTERPIN, COTTER
-
353YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3690157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3790109-083E2-00 BOLTBOLT
-
385VX-27443-00-00 BRACKET 3BRACKET 3
-
395VX-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
405VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
415VX-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4298507-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4390383-14001-00 BUSH, FORMEDBUSH, FORMED
-
4490110-08220-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4590209-08295-00 WASHERWASHER
-
465VX-2587A-00-00 HOLDER, BREAK HOSEHOLDER, BREAK HOSE
-
473VR-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
483VR-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
4990501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5093501-04011-00 BALLBALL
-
515VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5290240-08063-00 PIN, CLEVISPIN, CLEVIS
-
5391401-25015-00 PIN, COTTERPIN, COTTER
