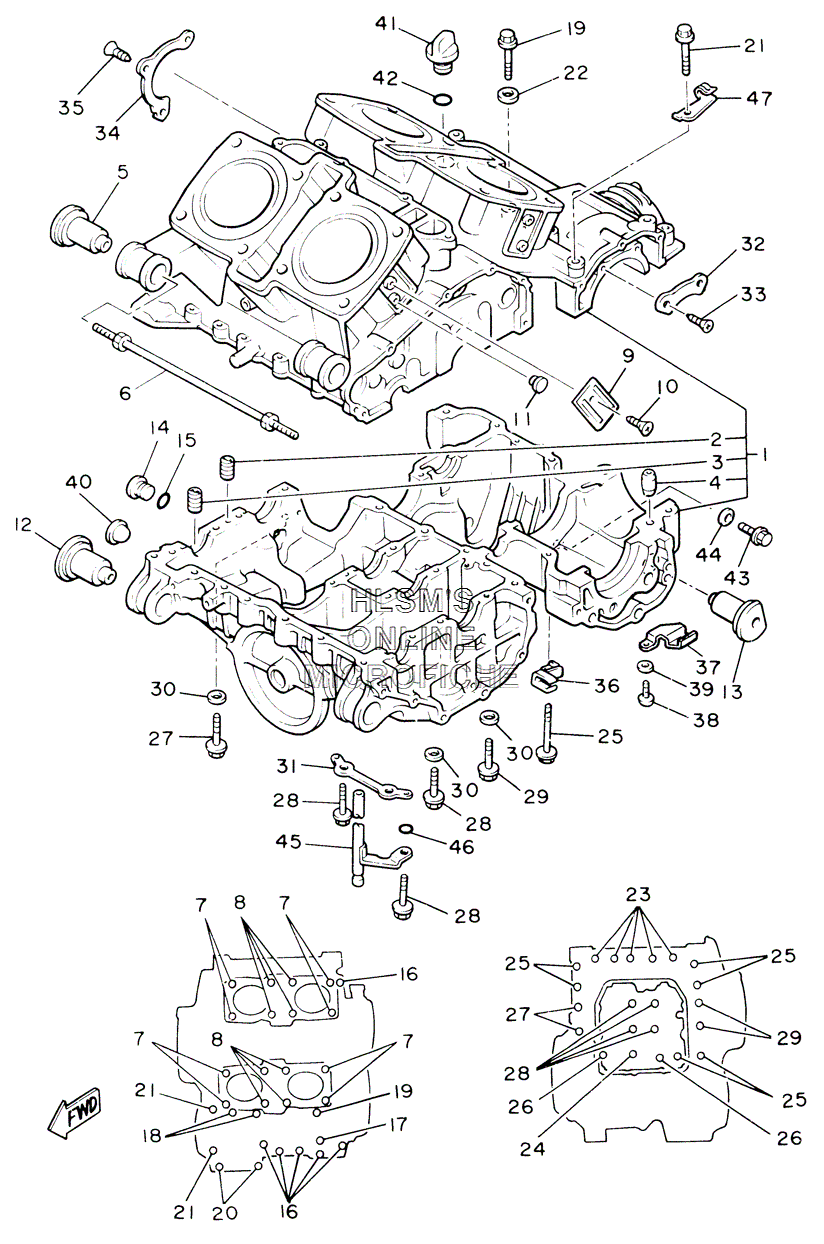

CRANKCASE для Yamaha VMX 1200 V-MAX CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
11FK-15100-10-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
226H-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
34G0-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
499530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
51AA-15336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
690109-106A1-00 BOLTBOLT
-
790116-10411-00 BOLT, STUDBOLT, STUD
-
890116-10429-00 BOLT, STUDBOLT, STUD
-
91FK-15417-10-00 COVER, CAPCOVER, CAP
-
1090151-06061-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1190338-11152-00 PLUGPLUG
-
121AA-15336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
131AA-15326-00-00 DAMPER, ENGINE MOUNT 2DAMPER, ENGINE MOUNT 2
-
144H7-15189-00-00 PLUGPLUG
-
1593210-22382-00 O-RINGO-RING
-
1695814-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1795814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
1895814-06090-00 BOLT, FLANGEBOLT, FLANGE
-
1995817-06095-00 BOLT, FLANGEBOLT, FLANGE
-
2095814-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2195814-08080-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06166-00 GASKETGASKET
-
2395817-08050-00 BOLT, FLANGEBOLT, FLANGE
-
2495817-08065-00 BOLT, FLANGEBOLT, FLANGE
-
2595814-08080-00 BOLT, FLANGEBOLT, FLANGE
-
2695817-08095-00 BOLT, FLANGEBOLT, FLANGE
-
2790109-103G0-00 BOLTBOLT
-
2890105-10248-00 BOLT, FLANGEBOLT, FLANGE
-
2990105-10249-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-11597-00 WASHER, PLATEWASHER, PLATE
-
3126H-15113-00-00 PLATEPLATE
-
3226H-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3390149-08152-00 SCREWSCREW
-
3426H-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3590151-06041-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
3690465-08233-00 CLAMPCLAMP
-
3790465-08287-00 CLAMPCLAMP
-
3898507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3992907-06600-00 WASHER, PLATEWASHER, PLATE
-
402H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
412H9-15363-00-00 PLUG, OILPLUG, OIL
-
4293210-27370-00 O-RINGO-RING
-
4395807-12016-00 BOLT, FLANGEBOLT, FLANGE
-
4490201-12790-00 WASHER, PLATEWASHER, PLATE
-
4526H-15373-00-00 PIPE, BREATHERPIPE, BREATHER
-
4693210-06667-00 O-RINGO-RING
-
471FK-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
