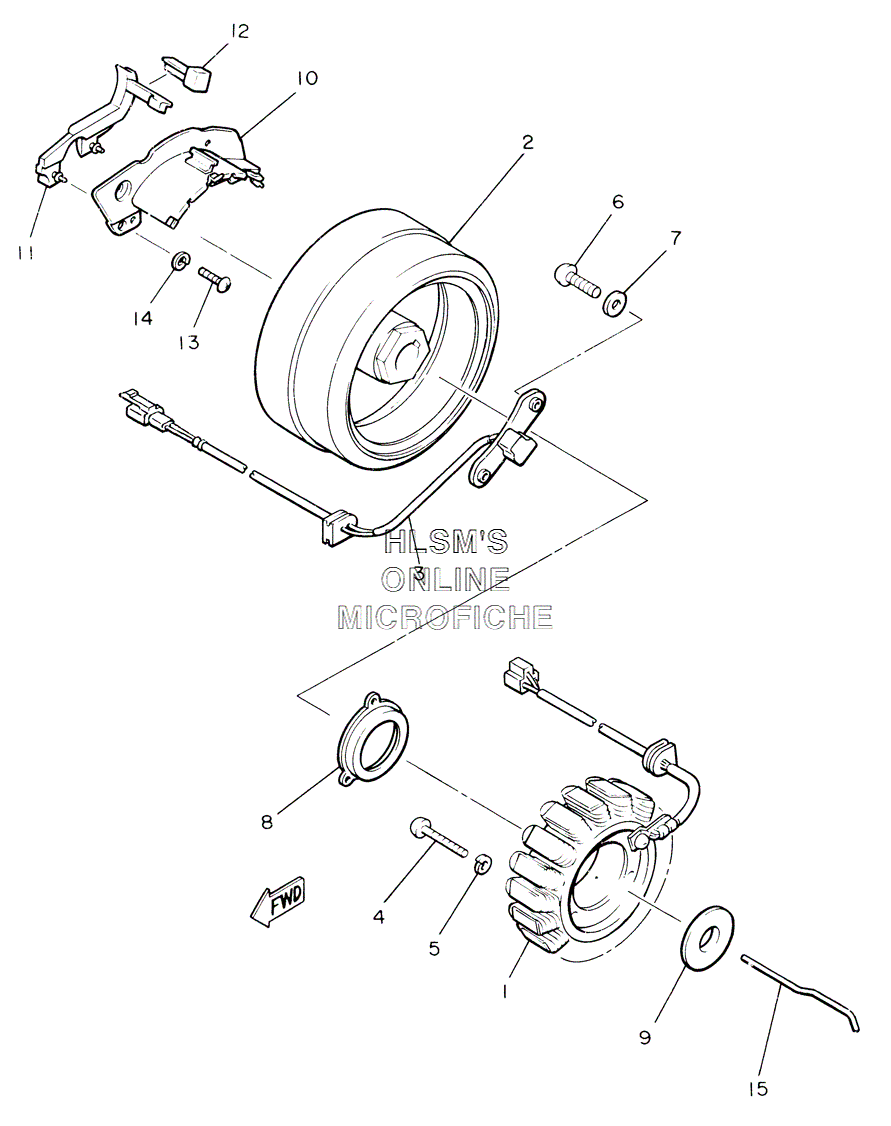

GENERATOR для Yamaha VMX 1200 V-MAX CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
13UF-81410-10-00 STATOR ASSY.STATOR ASSY.
-
23UF-81450-10-00 ROTOR ASSY.ROTOR ASSY.
-
33UF-81670-00-00 PICK-UP ASSY.PICK-UP ASSY.
-
498507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790201-06674-00 WASHER, PLATEWASHER, PLATE
-
859J-15113-00-00 PLATEPLATE
-
959J-15191-00-00 PLATEPLATE
-
101FK-15358-00-00 SEPARATOR, OILSEPARATOR, OIL
-
111FK-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
121FK-15494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
1398507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1559J-11455-00-00 SHAFT 1SHAFT 1
