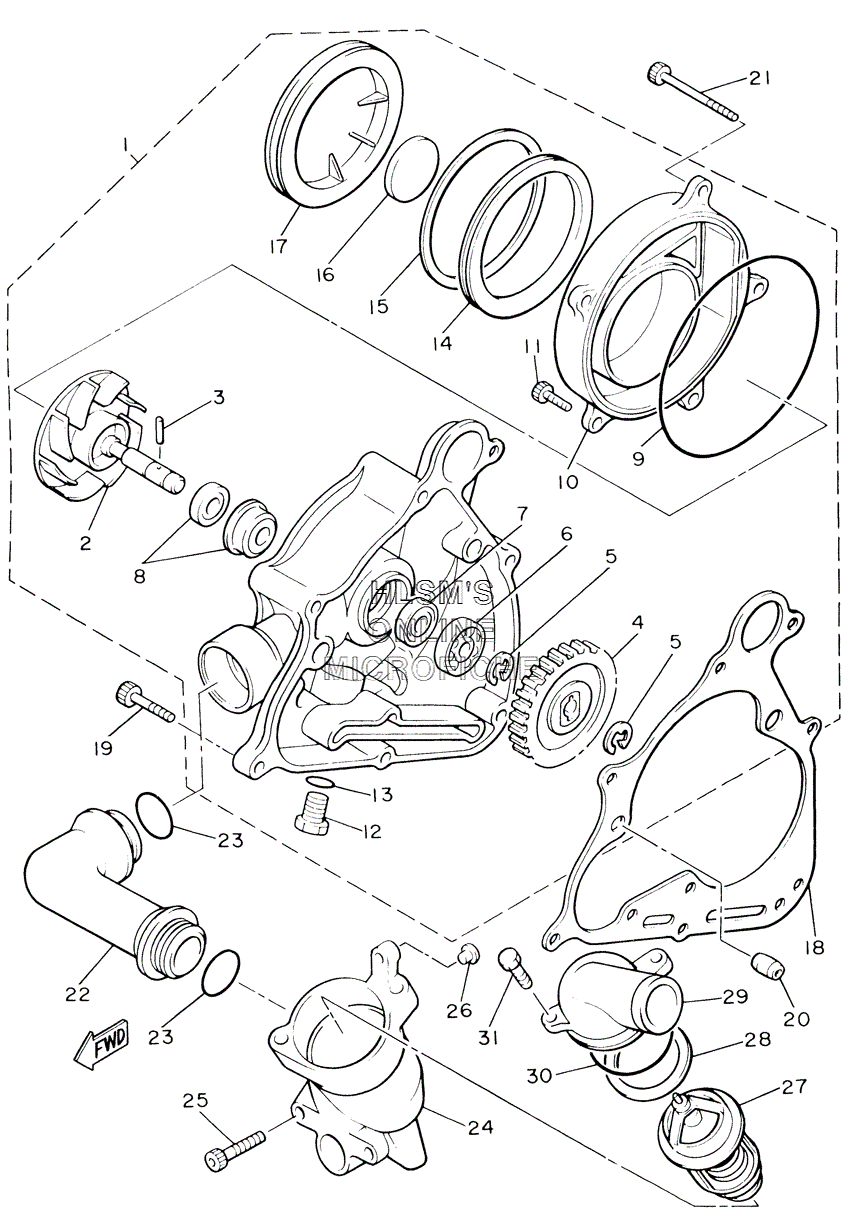

WATER PUMP для Yamaha VMX 1200 V-MAX CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
11FK-12420-20-00 WATER PUMP ASSY.WATER PUMP ASSY.
-
21FK-12450-00-00 ...IMPELLER SHAFT ASSY....IMPELLER SHAFT ASSY.
-
393603-14026-00 ...PIN, DOWEL...PIN, DOWEL
-
426H-12459-00-00 ...GEAR, IMPELLER SHAFT (31T)...GEAR, IMPELLER SHAFT (31T)
-
599009-10400-00 ...CIRCLIP...CIRCLIP
-
693306-00006-00 ...BEARING (B6000)...BEARING (B6000)
-
793101-10090-00 ...OIL SEAL...OIL SEAL
-
811H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
993211-16591-00 ...O-RING...O-RING
-
101FK-12422-10-00 ...COVER, HOUSING...COVER, HOUSING
-
1190110-06239-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1290340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
13214-11198-01-00 ...GASKET...GASKET
-
1426H-15337-01-00 ...DAMPER 4...DAMPER 4
-
1590468-98132-00 ...CLIP...CLIP
-
1626H-15338-00-00 ...DAMPER, ENGINE MOUNT 5...DAMPER, ENGINE MOUNT 5
-
171FK-15428-10-00 ...COVER, CHAIN CASE 2...COVER, CHAIN CASE 2
-
183JP-12449-02-00 GASKET, WATER PUMPGASKET, WATER PUMP
-
1990110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2099530-10114-00 PIN, DOWELPIN, DOWEL
-
2190110-06241-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
221FK-12446-00-00 JOINTJOINT
-
2393210-27194-00 O-RINGO-RING
-
241FK-12417-10-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
2591317-06020-00 BOLTBOLT
-
2690338-06134-00 PLUGPLUG
-
2711H-12410-01-00 THERMOSTAT ASSY.THERMOSTAT ASSY.
-
2811H-12412-01-00 SEAL, THERMOSTATSEAL, THERMOSTAT
-
2926H-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
3093210-45511-00 O-RINGO-RING
-
3190110-06084-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
