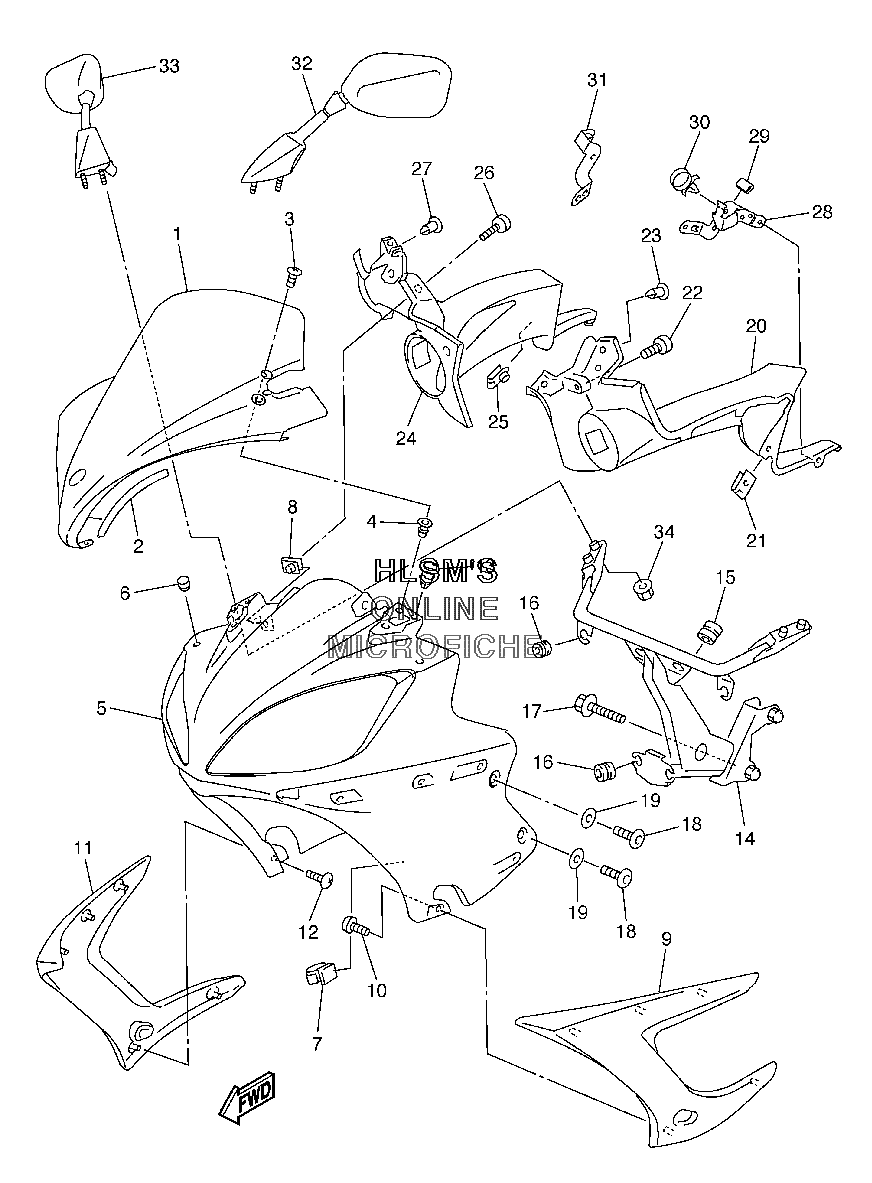

COWLING для Yamaha FZ6 - 2005 года выпуска
-
№АртикулНазвание
-
15VX-28381-30-00 WINDSHIELDWINDSHIELD
-
25VX-28376-00-00 TRIMTRIM
-
390150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
490179-05523-00 NUTNUT
-
55VX-2835G-10-00 BODY, FRONT UPPER 1 FOR BS4BODY, FRONT UPPER 1 FOR BS4
-
55VX-2835G-00-00 BODY, FRONT UPPER 1 FOR DPBMLBODY, FRONT UPPER 1 FOR DPBML
-
61J7-21717-00-00 DAMPERDAMPER
-
790464-54086-00 CLAMPCLAMP
-
890183-05074-00 NUT, SPRINGNUT, SPRING
-
95VX-2830C-00-P1 VISOR, SIDE 1 (DPBML)VISOR, SIDE 1 (DPBML)
-
95VX-2830C-00-P4 VISOR, SIDE 1 (BS4)VISOR, SIDE 1 (BS4)
-
1097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
115VX-2830D-00-P1 VISOR, SIDE 2 (DPBML)VISOR, SIDE 2 (DPBML)
-
115VX-2830D-00-P4 VISOR, SIDE 2 (BS4)VISOR, SIDE 2 (BS4)
-
1297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1390269-05049-00 RIVETRIVET
-
145VX-28356-00-00 STAY 1STAY 1
-
1590480-14585-00 GROMMETGROMMET
-
1690480-14229-00 GROMMETGROMMET
-
1790119-08081-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1990202-06170-00 WASHER, PLATEWASHER, PLATE
-
205VX-2836K-10-00 PANEL, INNER 1 FOR BS4PANEL, INNER 1 FOR BS4
-
205VX-2836K-00-00 PANEL, INNER 1 FOR DPBMLPANEL, INNER 1 FOR DPBML
-
2190183-06053-00 NUT, SPRINGNUT, SPRING
-
2290110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390269-05049-00 RIVETRIVET
-
245VX-2836L-10-00 PANEL, INNER 2 FOR BS4PANEL, INNER 2 FOR BS4
-
245VX-2836L-00-00 PANEL, INNER 2 FOR DPBMLPANEL, INNER 2 FOR DPBML
-
2590183-06053-00 NUT, SPRINGNUT, SPRING
-
2690110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790269-05049-00 RIVETRIVET
-
285VX-2836F-00-00 BRACKET 3BRACKET 3
-
291FK-2171M-00-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
3090464-16006-00 CLAMPCLAMP
-
315VX-2836E-01-00 BRACKET 2BRACKET 2
-
325VX-26280-00-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
335VX-26290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
3495707-06500-00 NUT, FLANGENUT, FLANGE
