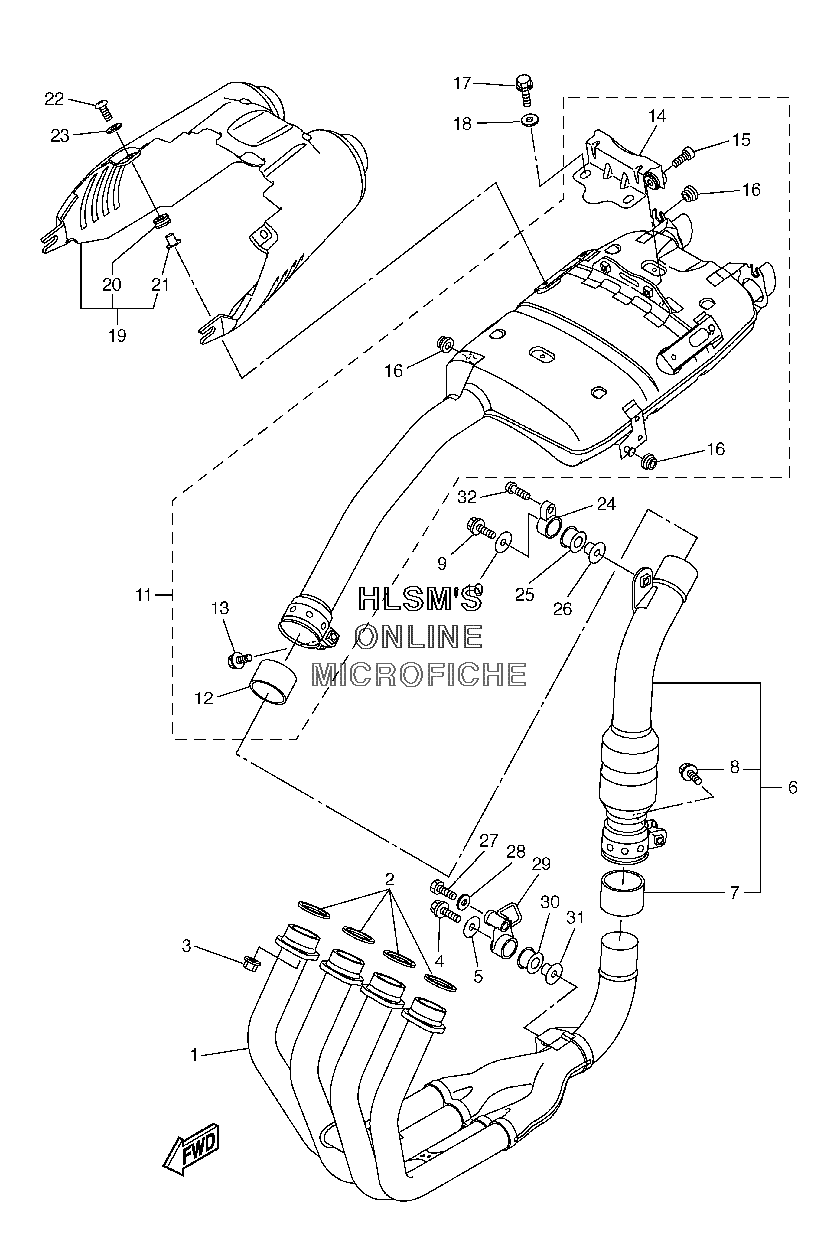

EXHAUST для Yamaha FZ6 - 2005 года выпуска
-
№АртикулНазвание
-
15VX-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
23YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
390179-08410-00 NUTNUT
-
495817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
590201-08612-00 WASHER, PLATEWASHER, PLATE
-
65VX-14740-00-00 CATALYST ASSY.CATALYST ASSY.
-
73XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
895814-08045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08612-00 WASHER, PLATEWASHER, PLATE
-
115VX-14710-00-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
125EB-14714-01-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1395814-08045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
145VX-1467K-00-00 ...BRACKET, SILENCER 3...BRACKET, SILENCER 3
-
1591317-08030-00 ...BOLT...BOLT
-
1690480-10332-00 ...GROMMET...GROMMET
-
1795817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-086A3-00 WASHER, PLATEWASHER, PLATE
-
195VX-14708-10-00 PROTECTOR ASSY.PROTECTOR ASSY.
-
2090480-12006-00 ...GROMMET...GROMMET
-
2190387-061N6-00 ...COLLAR...COLLAR
-
2298907-06020-00 SCREW, BINDSCREW, BIND
-
234FB-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
245VX-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
254XV-27424-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2690387-082W9-00 COLLARCOLLAR
-
2790109-082A1-00 BOLTBOLT
-
2890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
295VX-21446-10-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
304XV-27424-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
3190387-082W9-00 COLLARCOLLAR
-
3292017-08045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
