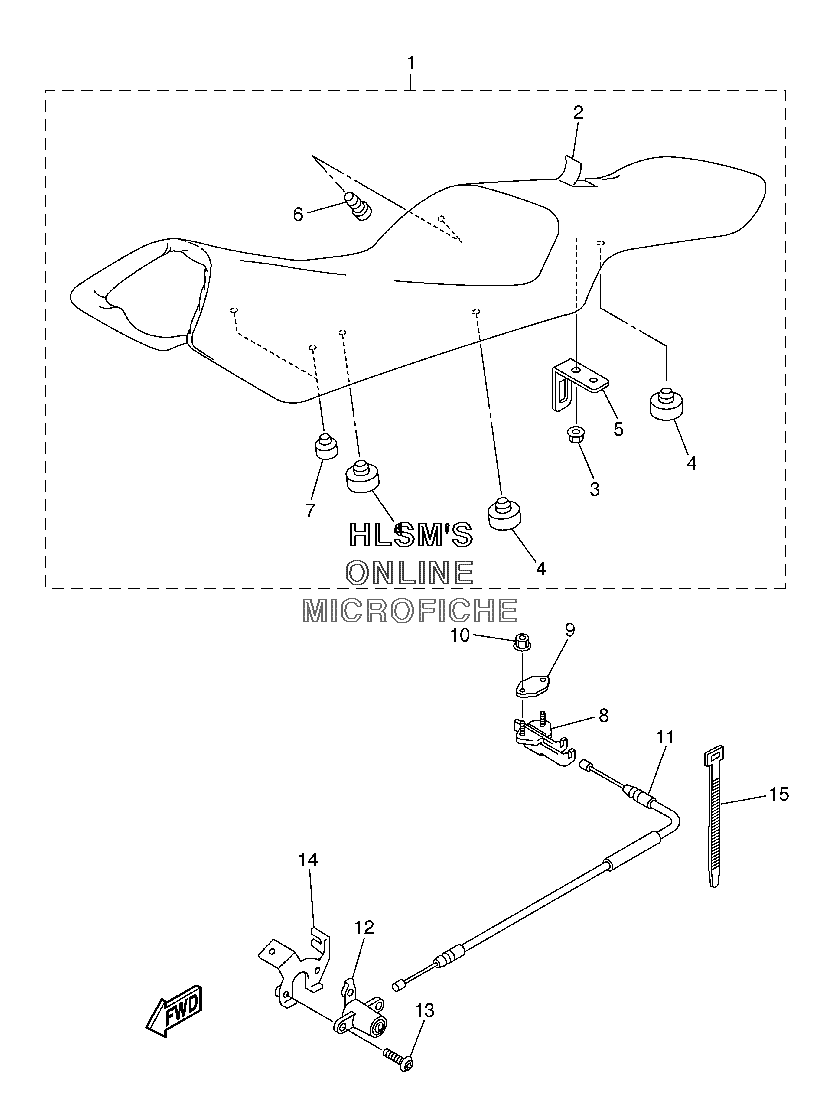

SEAT для Yamaha FZ6 - 2005 года выпуска
-
№АртикулНазвание
-
15VX-24730-01-00 DOUBLE SEAT ASSY.DOUBLE SEAT ASSY.
-
25VX-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
395707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
4371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
54NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
690338-06018-00 ...PLUG...PLUG
-
75VX-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
84BP-24780-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
94BP-24792-00-00 PLATEPLATE
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
115VX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
122TV-W2470-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1390149-06308-00 SCREWSCREW
-
145PW-2117K-00-00 STAY, LOCKSTAY, LOCK
-
1590464-16061-00 CLAMPCLAMP
