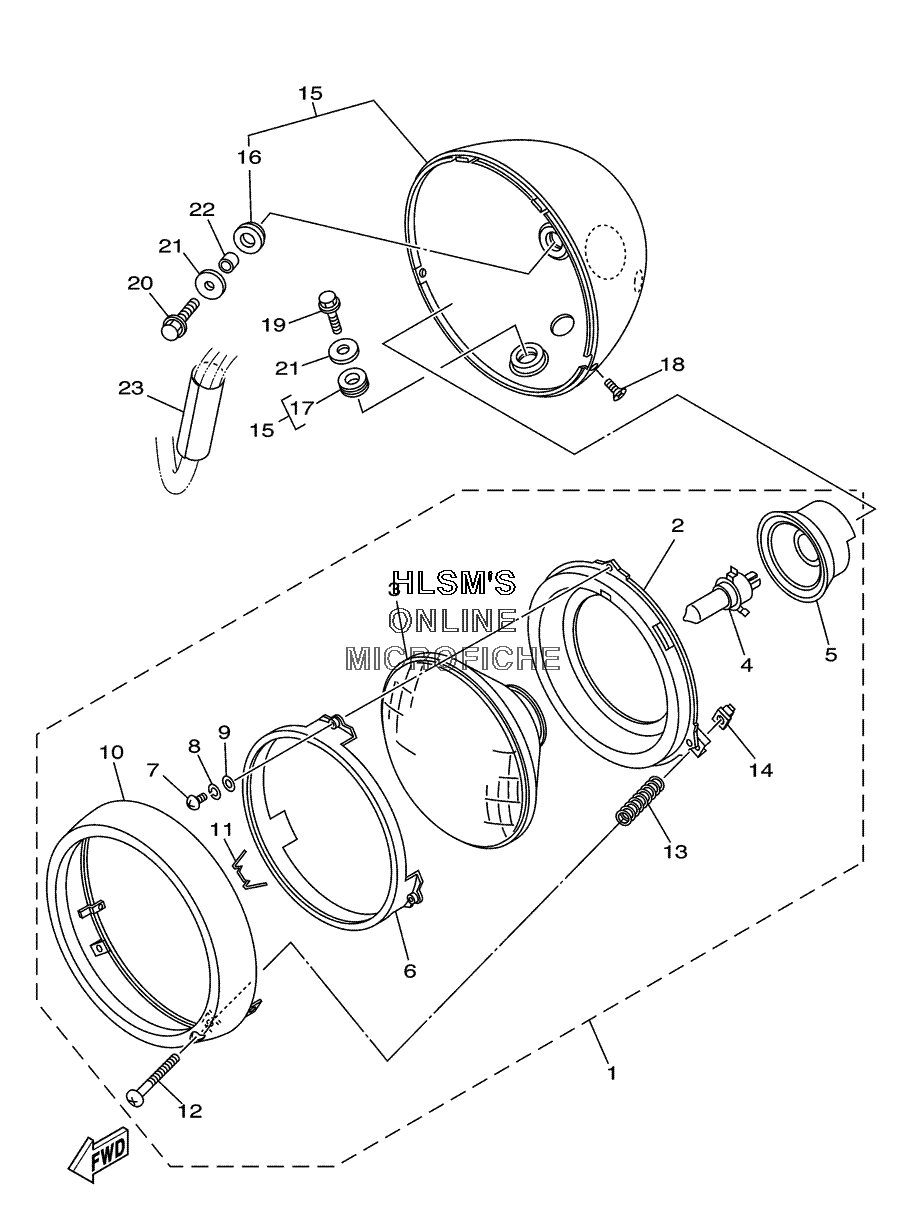

HEADLIGHT для Yamaha ROAD STAR CAST WHEELS - 2005 года выпуска
-
№АртикулНазвание
-
15VN-84310-00-00 HEADLIGHT UNIT ASSY.HEADLIGHT UNIT ASSY.
-
25VN-84394-00-00 ...RING, MOUNTING...RING, MOUNTING
-
34NK-84320-00-00 ...LENS ASSY....LENS ASSY.
-
42F9-84314-00-00 ...BULB (12V-60/55W) HALOGEN...BULB (12V-60/55W) HALOGEN
-
53SX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
62F9-84395-00-00 ...RING, RETAINING...RING, RETAINING
-
798502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
95VN-84344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
105VN-84315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
11290-84124-21-00 ...SPRING, SET...SPRING, SET
-
12341-84331-60-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
135G2-84332-60-00 ...SPRING, SCREW...SPRING, SCREW
-
14198-84334-60-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
154WM-84330-00-00 BODY ASSY.BODY ASSY.
-
1642X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
174WM-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
1890152-05005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1995027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-060A3-00 WASHER, PLATEWASHER, PLATE
-
2290387-0610J-00 COLLARCOLLAR
-
235VN-8412H-00-00 STAY SETTINGSTAY SETTING
