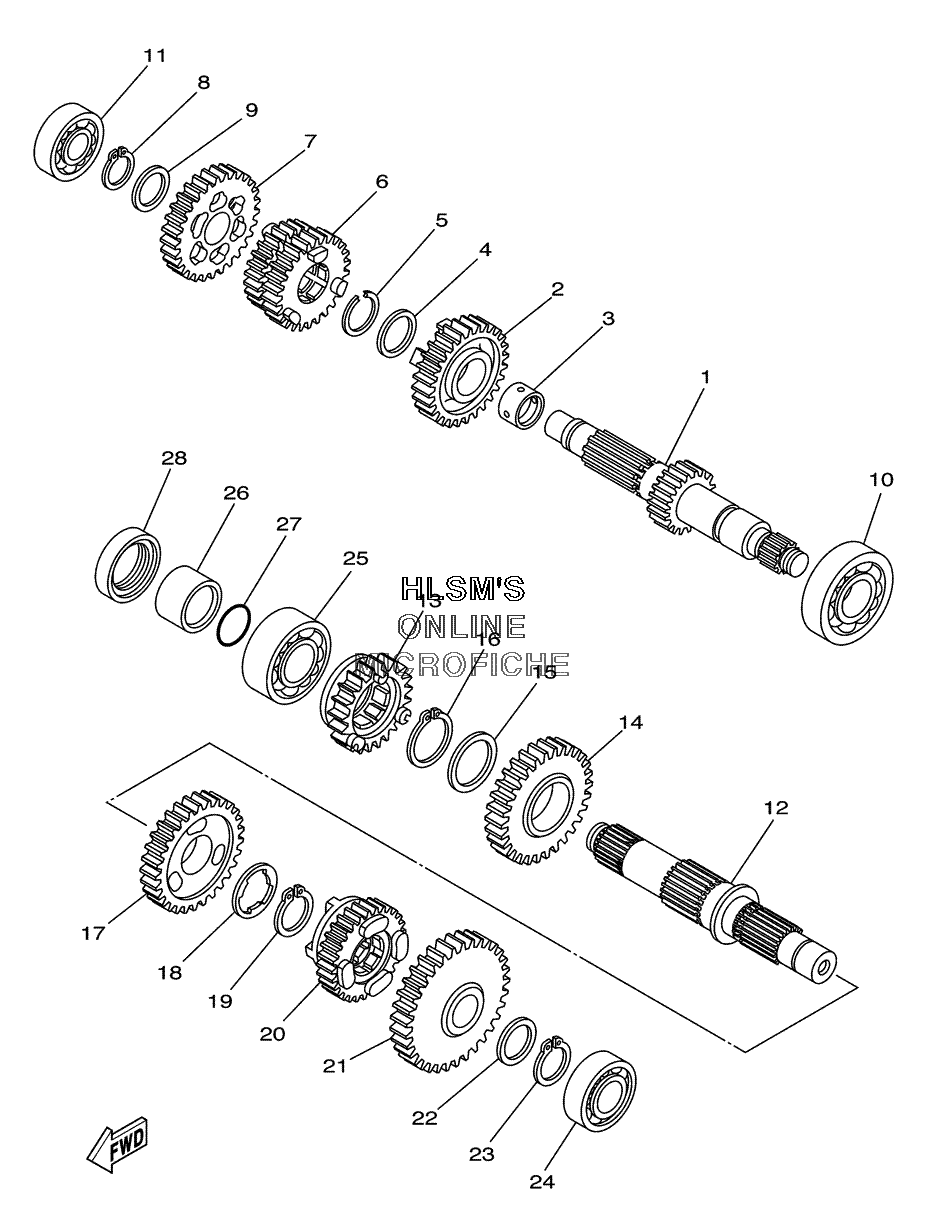

TRANSMISSION для Yamaha ROAD STAR CAST WHEELS - 2005 года выпуска
-
№АртикулНазвание
-
15VN-17411-00-00 AXLE, MAIN (16T)AXLE, MAIN (16T)
-
25VN-17141-00-00 GEAR, 4TH PINION (32T)GEAR, 4TH PINION (32T)
-
390387-281T8-00 COLLARCOLLAR
-
490209-25013-00 WASHERWASHER
-
593440-28062-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
65PX-17121-00-00 GEAR, 2ND PINION (25T/19T)GEAR, 2ND PINION (25T/19T)
-
75VN-17151-00-00 GEAR, 5TH PINION (28T)GEAR, 5TH PINION (28T)
-
893410-23056-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
990201-232K5-00 WASHER, PLATEWASHER, PLATE
-
1093306-37806-00 BEARINGBEARING
-
1193306-30441-00 BEARINGBEARING
-
124WM-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
135VN-17251-00-00 GEAR, 5TH WHEEL (21T)GEAR, 5TH WHEEL (21T)
-
145VN-17221-00-00 GEAR, 2ND WHEEL (30T)GEAR, 2ND WHEEL (30T)
-
1590209-32231-00 WASHERWASHER
-
1693440-34025-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
175VN-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
1890209-27192-00 WASHERWASHER
-
1993440-30077-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
205VN-17241-00-00 GEAR, 4TH WHEEL (29T)GEAR, 4TH WHEEL (29T)
-
215PX-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
2290201-256K6-00 WASHER, PLATE (0.9T)WASHER, PLATE (0.9T)
-
2393410-25017-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
2493306-20550-00 BEARING (B6205DU8)BEARING (B6205DU8)
-
2593305-20607-00 BEARINGBEARING
-
2690387-3015P-00 COLLARCOLLAR
-
2793210-30660-00 O-RINGO-RING
-
2893103-38184-00 OIL SEALOIL SEAL
