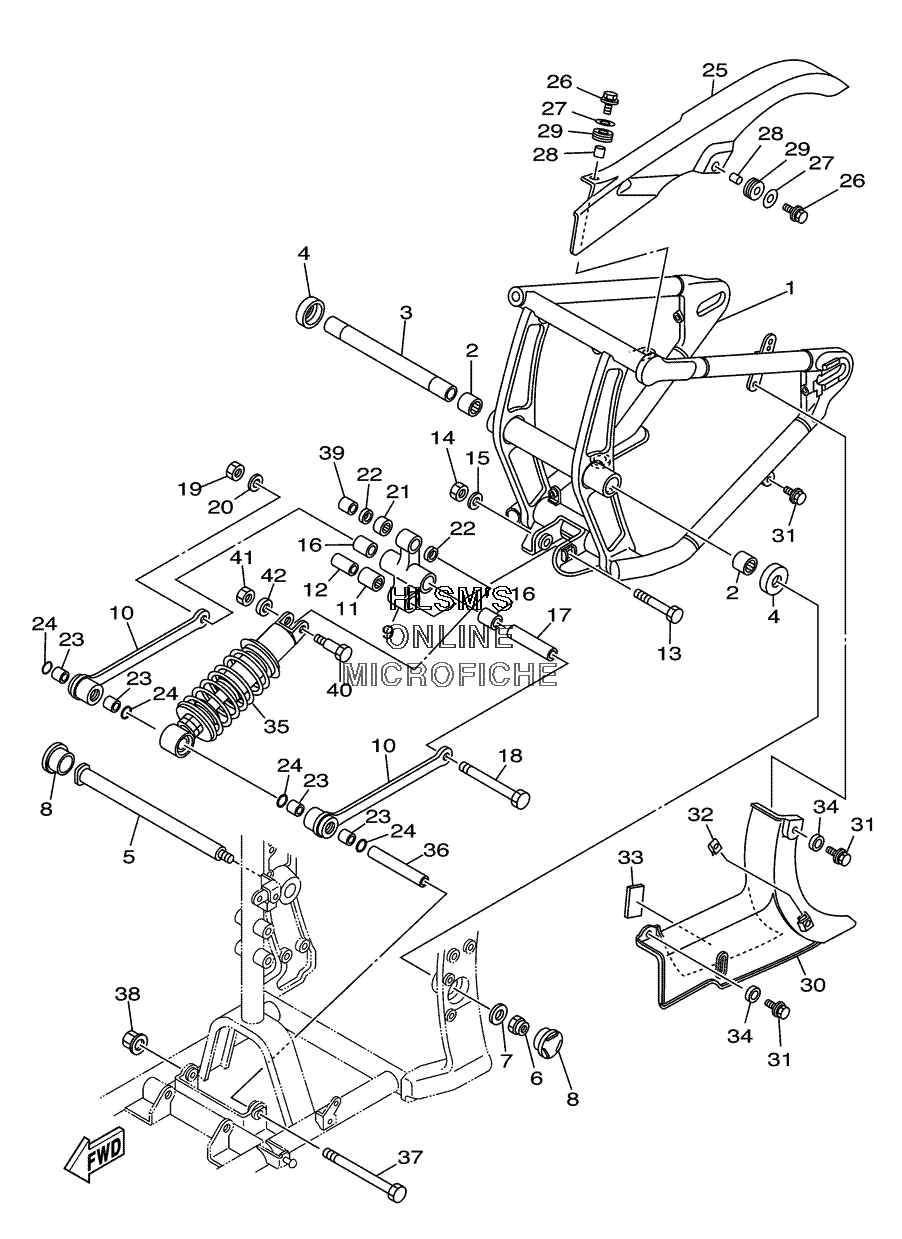

SUSPENSION - REAR ARM для Yamaha ROAD STAR CAST WHEELS - 2005 года выпуска
-
№АртикулНазвание
-
15VN-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
293317-42550-00 BEARING, CYL.#17BEARING, CYL.#17
-
34WM-22184-00-00 BUSHBUSH
-
45JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
53GM-25381-A0-00 AXLE, WHEELAXLE, WHEEL
-
690185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790201-186M4-00 WASHER, PLATEWASHER, PLATE
-
84KM-2219X-00-00 COVERCOVER
-
94WM-2217A-00-00 ARM, RELAYARM, RELAY
-
104WM-2217M-10-00 ARM 1ARM 1
-
1193317-42060-00 BEARING, CYL.#17BEARING, CYL.#17
-
1290387-122J6-00 COLLARCOLLAR
-
1390101-12002-00 BOLTBOLT
-
1495617-12100-00 NUT, UNUT, U
-
1590201-127J6-00 WASHER, PLATEWASHER, PLATE
-
1693317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12673-00 BOLTBOLT
-
1995617-12100-00 NUT, UNUT, U
-
2090201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390384-18157-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2493210-18397-00 O-RINGO-RING
-
255JA-22311-00-00 CASE, CHAINCASE, CHAIN
-
2695024-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2790201-06070-00 WASHER, PLATEWASHER, PLATE
-
2890387-064T3-00 COLLARCOLLAR
-
2990480-14323-00 GROMMETGROMMET
-
305VN-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
3190119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3322F-2139X-00-00 DAMPERDAMPER
-
3490387-06069-00 COLLARCOLLAR
-
354WM-22210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
3690387-1214E-00 COLLARCOLLAR
-
3790101-12695-00 BOLTBOLT
-
3895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3990387-127W0-00 COLLARCOLLAR
-
4090101-10659-00 BOLTBOLT
-
4195617-10100-00 NUT, UNUT, U
-
4290201-101J1-00 WASHER, PLATEWASHER, PLATE
