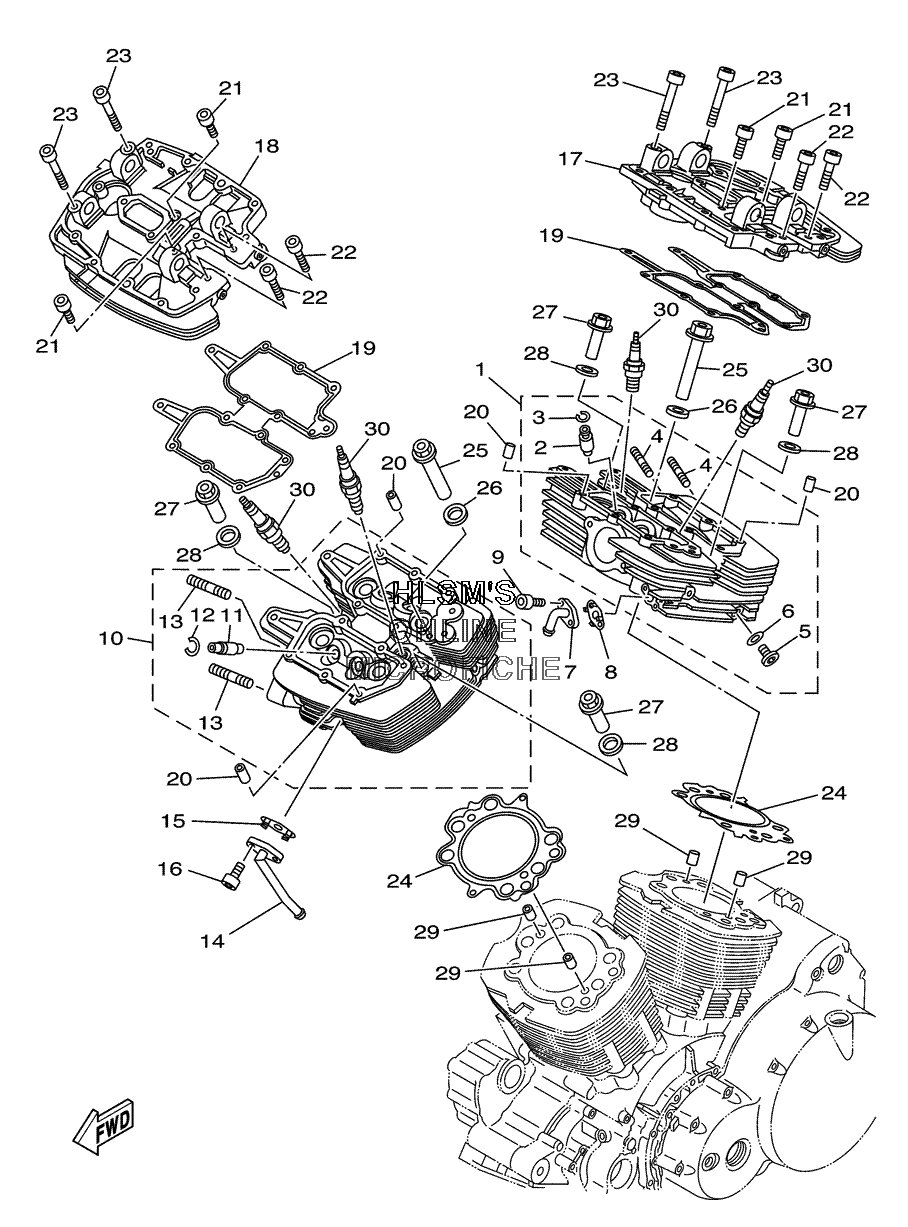

CYLINDER HEAD для Yamaha ROAD STAR MDNT SILVERADO - 2005 года выпуска
-
№АртикулНазвание
-
15VN-11101-00-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
24WM-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
393440-12052-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
495617-08625-00 ...BOLT, STUD...BOLT, STUD
-
590340-12112-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
690201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
75VN-14873-00-00 PIPE 3PIPE 3
-
85PX-14815-00-00 GASKETGASKET
-
991314-06016-00 BOLTBOLT
-
105VN-11101-10-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
114WM-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
1293440-12052-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
1395617-08625-00 ...BOLT, STUD...BOLT, STUD
-
145VN-14874-00-00 PIPE 4PIPE 4
-
155PX-14815-00-00 GASKETGASKET
-
1691314-06016-00 BOLTBOLT
-
175VN-11131-00-00 HEAD, CYLINDER 3HEAD, CYLINDER 3
-
185VN-11141-00-00 HEAD, CYLINDER 4HEAD, CYLINDER 4
-
195VN-11182-00-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
2091808-16023-00 PIN, DOWELPIN, DOWEL
-
2190109-065F8-00 BOLTBOLT
-
2290109-061F7-00 BOLTBOLT
-
2390110-08033-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
245PX-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
255PX-11171-00-00 NUT, HOLDINGNUT, HOLDING
-
265VN-11175-00-00 WASHER, HOLDING 1WASHER, HOLDING 1
-
274WM-11172-00-00 NUT, HOLDINGNUT, HOLDING
-
284WM-11176-00-00 WASHER, HOLDINGWASHER, HOLDING
-
2990387-062T5-00 COLLARCOLLAR
-
3094701-00262-00 PLUG, SPARK (NGK DPR7EA)PLUG, SPARK (NGK DPR7EA)
