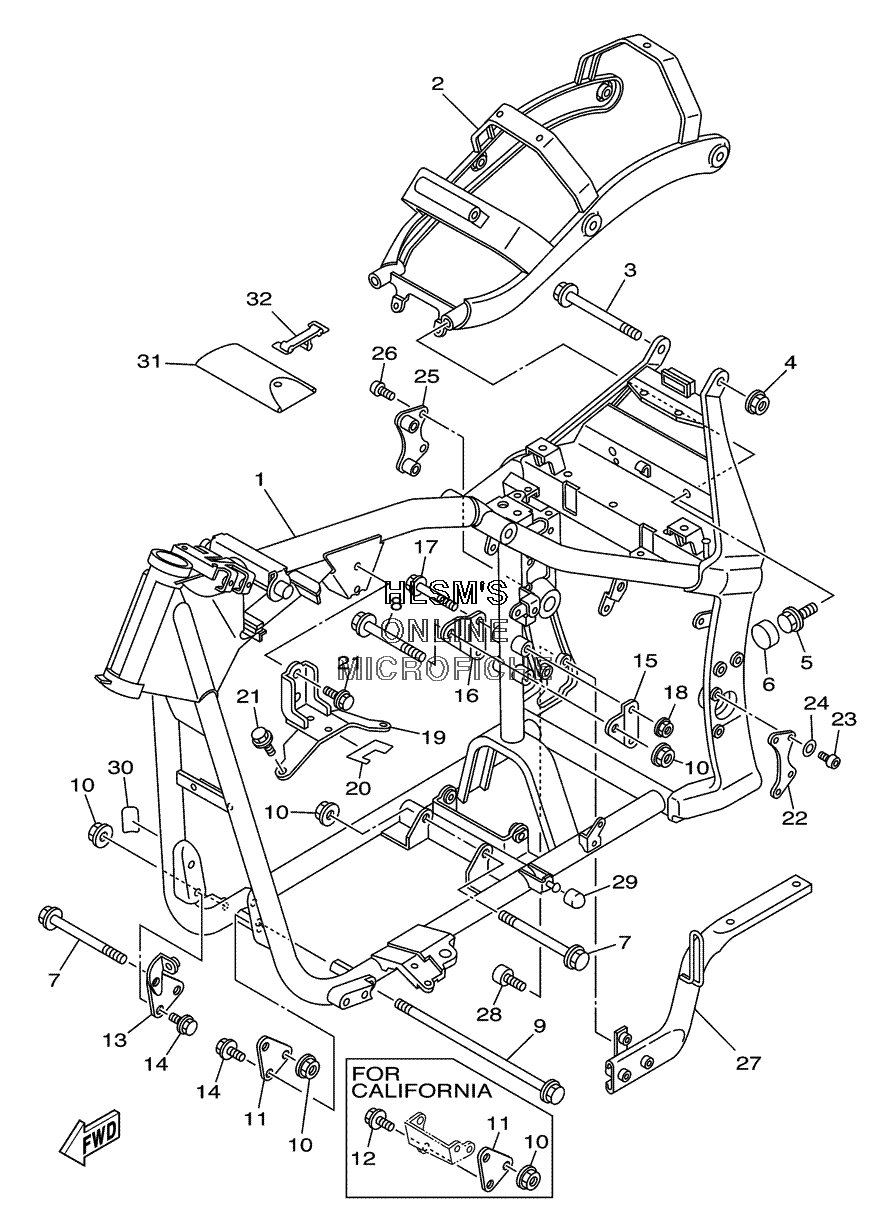

FRAME для Yamaha ROAD STAR MDNT SILVERADO - 2005 года выпуска
-
№АртикулНазвание
-
15VN-21110-00-00 FRAME COMP.FRAME COMP.
-
25VN-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390105-12016-00 BOLT, FLANGEBOLT, FLANGE
-
490185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
595827-10035-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
64WM-21399-00-00 CAP, TOOL BOXCAP, TOOL BOX
-
790105-12208-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890105-12309-00 BOLT, FLANGEBOLT, FLANGE
-
990105-126A6-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
114WM-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1295827-10020-00 BOLT, FLANGEBOLT, FLANGE
-
135VN-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1495827-10016-00 BOLT, FLANGEBOLT, FLANGE
-
154WM-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
164WM-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1790105-10170-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
195VN-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
205VN-2139B-00-00 SEALSEAL
-
2195827-10025-00 BOLT, FLANGEBOLT, FLANGE
-
225VN-2137F-00-00 STAY 1STAY 1
-
2390111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2490201-11013-00 WASHER, PLATEWASHER, PLATE
-
255GA-2137G-00-00 STAY 2STAY 2
-
2690111-10003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
275MB-21445-00-00 STAY, MUFFLER 1STAY, MUFFLER 1
-
2890110-10191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
293VR-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
305VN-21268-00-00 SEALSEAL
-
315VN-28100-00-00 TOOL KITTOOL KIT
-
3246X-21376-00-00 BAND, TOOLBAND, TOOL
