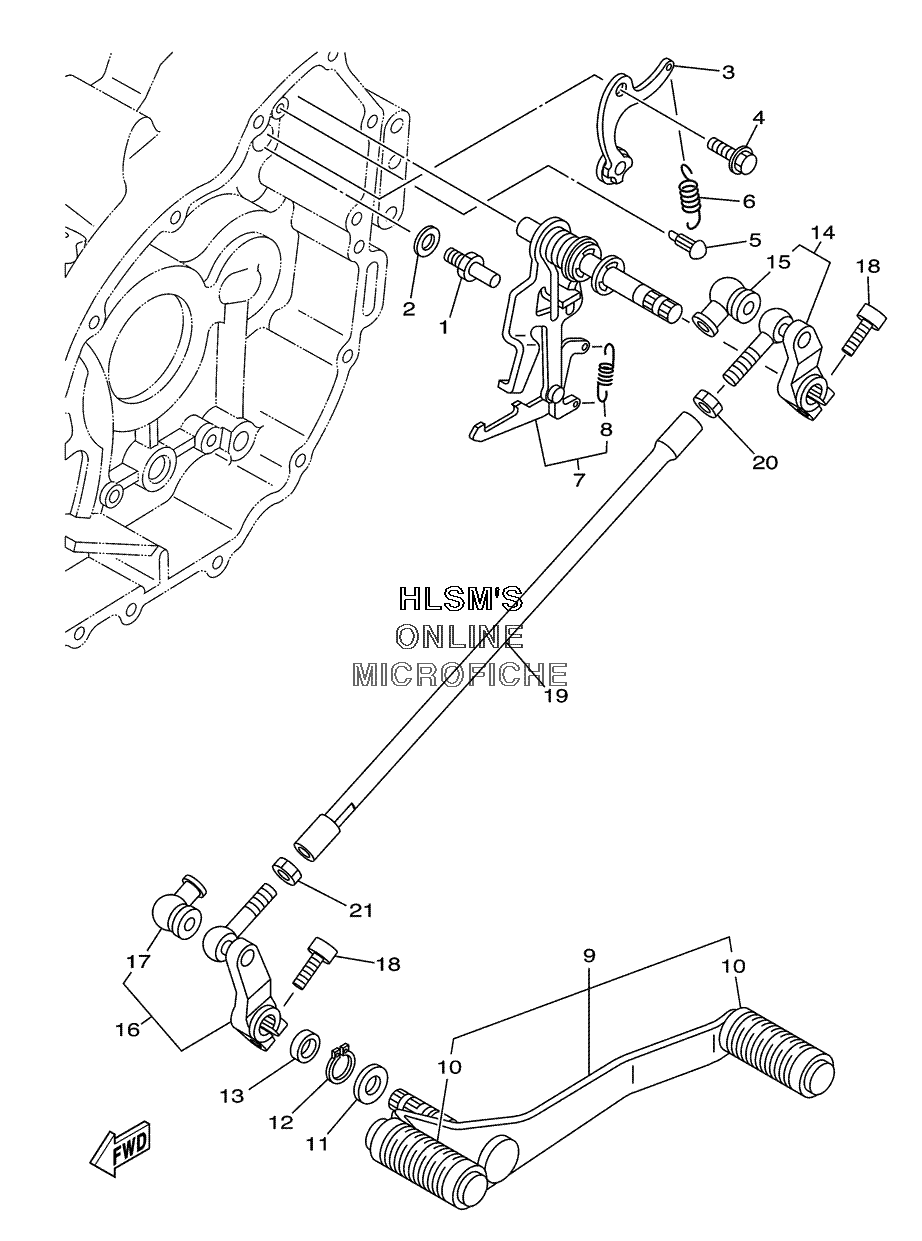

SHIFT SHAFT для Yamaha ROAD STAR MDNT SILVERADO - 2005 года выпуска
-
№АртикулНазвание
-
190109-08049-00 BOLTBOLT
-
290201-08085-00 WASHER, PLATEWASHER, PLATE
-
326H-18140-02-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
490109-06048-00 BOLTBOLT
-
5132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
690506-16006-00 SPRING, TENSIONSPRING, TENSION
-
74WM-18101-01-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
890506-08227-00 ...SPRING, TENSION...SPRING, TENSION
-
94WM-18110-01-00 SHIFT PEDAL ASSY.SHIFT PEDAL ASSY.
-
104NK-18113-10-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1190201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1299001-10600-00 CIRCLIPCIRCLIP
-
134WM-18154-00-00 COVER, DUSTCOVER, DUST
-
145VN-18130-00-00 SHIFT SHAFT ASSY.SHIFT SHAFT ASSY.
-
152H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
165VN-18150-00-00 SHIFT LEVER ASSY.SHIFT LEVER ASSY.
-
172H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1891314-06020-00 BOLTBOLT
-
194WM-18115-00-00 ROD, SHIFTROD, SHIFT
-
2095304-08700-00 NUTNUT
-
2190170-08358-00 NUTNUT
