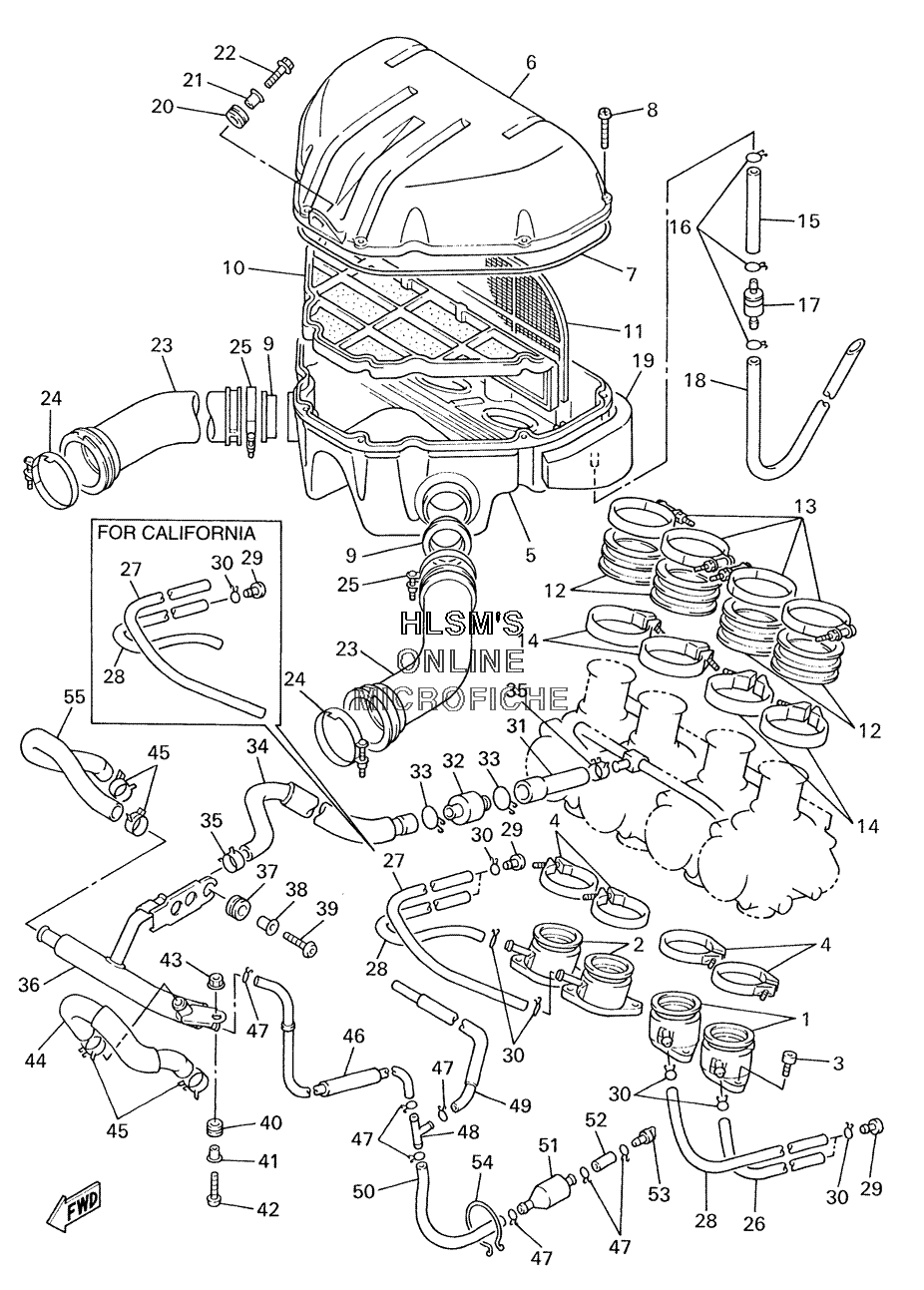

AIR CLEANER W/ INTAKE для Yamaha YZF600R - 2005 года выпуска
-
№АртикулНазвание
-
14JH-13586-02-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
24JH-13596-02-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
391317-06020-00 BOLTBOLT
-
490450-52074-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
54WE-14411-00-00 CASE, AIR CLEANER 1 (CALIF. ONLY)CASE, AIR CLEANER 1 (CALIF. ONLY)
-
54TV-14411-00-00 CASE, AIR CLEANER 1 (EXCEPT CALIF.)CASE, AIR CLEANER 1 (EXCEPT CALIF.)
-
64TV-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
74KM-14452-00-00 SEALSEAL
-
898507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
94TV-1441J-00-00 PIPE, SILENCERPIPE, SILENCER
-
104TV-14468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
114TV-1444A-00-00 NET, FLAME ARRESTERNET, FLAME ARRESTER
-
124TV-14453-00-00 JOINT, AIR CLEANERJOINT, AIR CLEANER
-
134TV-14455-00-00 BANDBAND
-
1490450-60085-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
1590445-11452-00 HOSEHOSE
-
1690467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
174X7-2149Y-00-00 FILTER ASSY.FILTER ASSY.
-
1890445-075G7-00 HOSEHOSE
-
195AH-14409-00-00 DAMPERDAMPER
-
2090480-12314-00 GROMMETGROMMET
-
2190387-065J6-00 COLLARCOLLAR
-
2290119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
234TV-1446F-00-00 JOINT, SURGE TANK 1JOINT, SURGE TANK 1
-
244TV-13575-00-00 BANDBAND
-
2590460-59211-00 CLAMP, HOSECLAMP, HOSE
-
2690445-09488-00 HOSEHOSE
-
2790445-09496-00 HOSEHOSE
-
2890445-09757-00 HOSEHOSE
-
2990338-05194-00 PLUGPLUG
-
3090467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
314TV-14485-01-00 PIPE, JOINTPIPE, JOINT
-
323GM-14467-00-00 SEALSEAL
-
3390467-20030-00 CLIPCLIP
-
344TV-14197-00-00 PIPEPIPE
-
3590467-19160-00 CLIP, SCISSORCLIP, SCISSOR
-
364TV-14466-00-00 PIPEPIPE
-
3790480-15363-00 GROMMETGROMMET
-
3890387-07391-00 COLLARCOLLAR
-
3990110-06087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090480-12237-00 GROMMETGROMMET
-
4190387-087L0-00 COLLARCOLLAR
-
4292017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4395707-06500-00 NUT, FLANGENUT, FLANGE
-
444TV-14148-00-00 PIPEPIPE
-
4590467-20154-00 CLIPCLIP
-
464TV-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
4790467-11106-00 CLIPCLIP
-
4890413-08009-00 WAY 3WAY 3
-
4990445-110H9-00 HOSE (L390)HOSE (L390)
-
5090445-114J7-00 HOSEHOSE
-
514TV-14226-00-00 CUP, DRAINCUP, DRAIN
-
5290445-11262-00 HOSEHOSE
-
534TV-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
5490464-44109-00 CLAMPCLAMP
-
554TV-14149-00-00 PIPEPIPE
