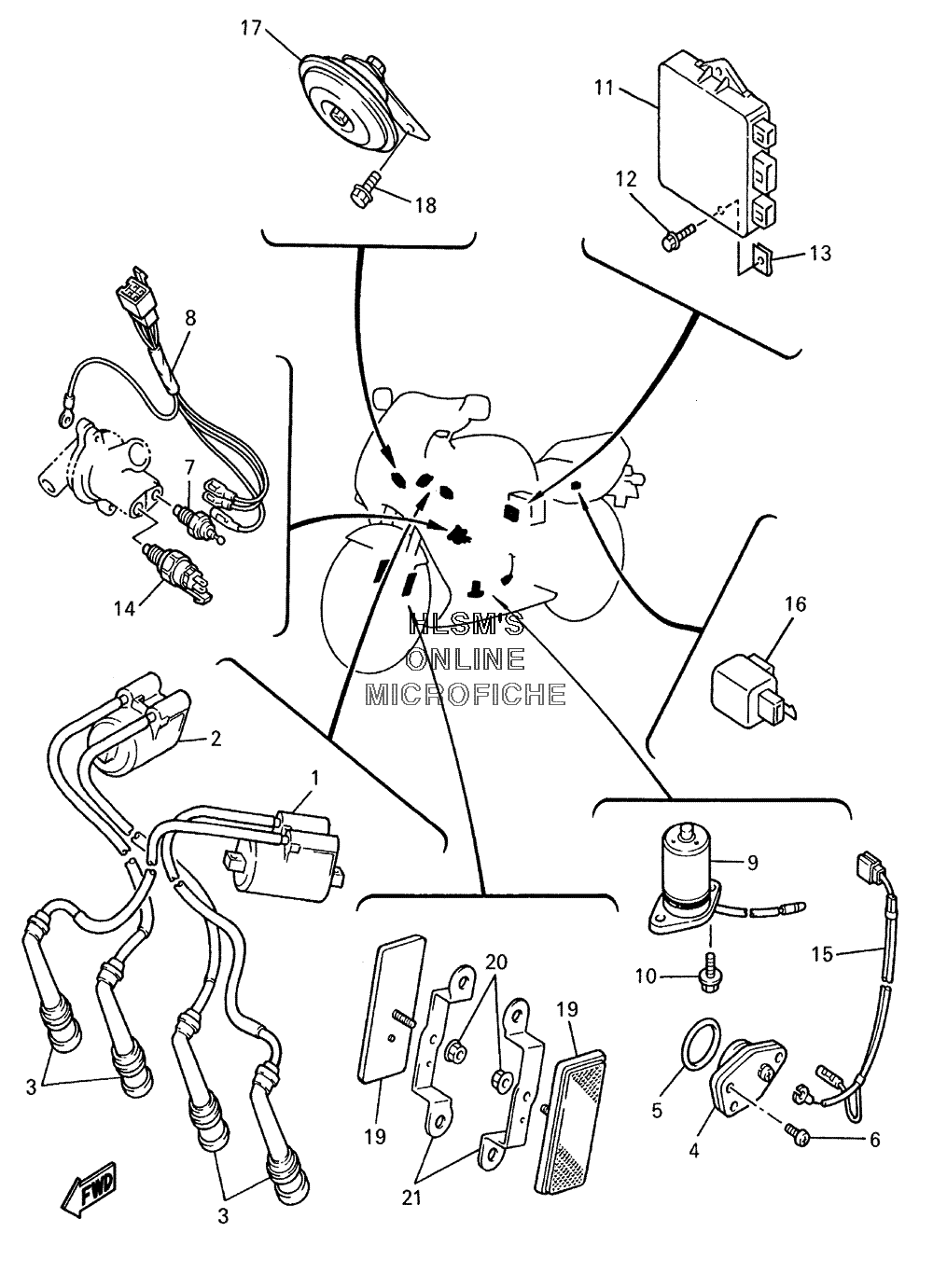

ELECTRICAL для Yamaha YZF600R - 2005 года выпуска
-
№АртикулНазвание
-
14TV-82310-01-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
24FM-82320-01-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
34TV-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
41AE-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
593210-29196-00 O-RINGO-RING
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
711H-83591-00-00 THERMO UNITTHERMO UNIT
-
83TJ-82583-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
94JH-85720-02-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
1095027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
114TV-82305-50-00 IGNITOR UNIT ASSY. (CALIF. ONLY)IGNITOR UNIT ASSY. (CALIF. ONLY)
-
114TV-82305-40-00 IGNITOR UNIT ASSY. (EXCEPT CALIF.)IGNITOR UNIT ASSY. (EXCEPT CALIF.)
-
1295027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1390183-06023-00 NUT, SPRINGNUT, SPRING
-
143LN-82560-01-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
151WG-82541-00-00 WIRE, LEADWIRE, LEAD
-
164MY-83350-01-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
174TH-83371-00-00 HORNHORN
-
1895807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1911H-85110-01-00 FRONT REFLECTOR ASSY.FRONT REFLECTOR ASSY.
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
-
214SV-85112-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
