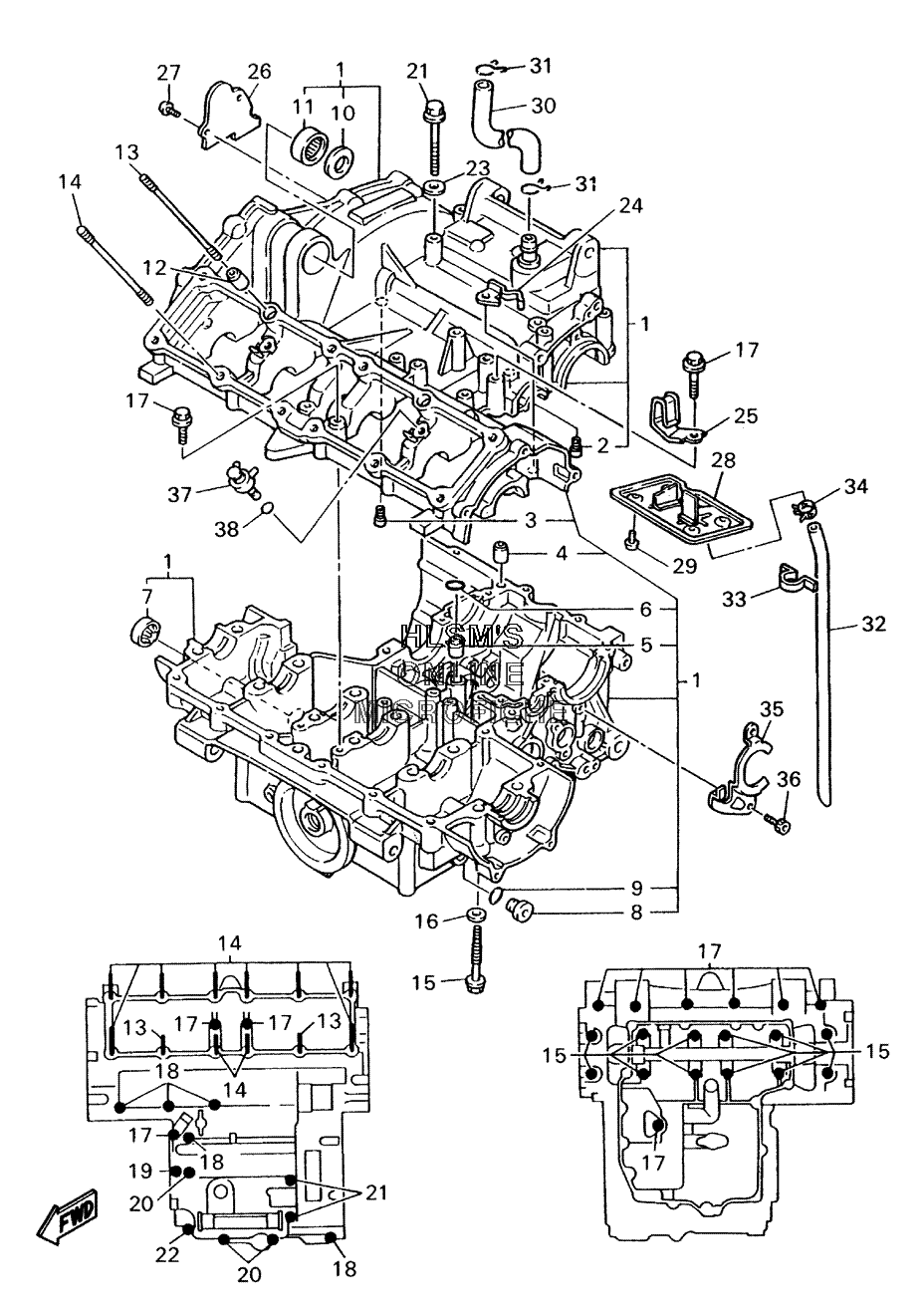

CRANKCASE для Yamaha YZF600R - 2005 года выпуска
-
№АртикулНазвание
-
14JH-15100-03-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
211H-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
326H-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
499530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
54JH-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
693210-12152-00 ...O-RING...O-RING
-
74H7-15361-00-00 ...GAUGE, LEVEL...GAUGE, LEVEL
-
836Y-15189-00-00 ...PLUG...PLUG
-
993210-16325-00 ...O-RING...O-RING
-
1090201-237K5-00 ...WASHER, PLATE...WASHER, PLATE
-
1193315-32516-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
1293612-16254-00 PIN, DOWELPIN, DOWEL
-
1390116-09583-00 BOLT, STUDBOLT, STUD
-
1490116-09584-00 BOLT, STUDBOLT, STUD
-
1590105-08630-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1690201-087K3-00 WASHER, PLATEWASHER, PLATE
-
1795817-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1895817-06050-00 BOLT, FLANGEBOLT, FLANGE
-
1995817-06070-00 BOLT, FLANGEBOLT, FLANGE
-
2095817-06080-00 BOLT, FLANGEBOLT, FLANGE
-
2195817-06090-00 BOLT, FLANGEBOLT, FLANGE
-
2295817-08070-00 BOLT, FLANGEBOLT, FLANGE
-
2390430-06166-00 GASKETGASKET
-
2490465-10307-00 CLAMPCLAMP
-
2590465-10308-00 CLAMPCLAMP
-
264JH-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2798507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
285RT-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
2998507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
301WG-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3190467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
3290445-116E9-00 HOSEHOSE
-
3390465-06289-00 CLAMPCLAMP
-
3490467-10038-00 CLIP, SCISSORCLIP, SCISSOR
-
354JH-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
3691317-06012-00 BOLTBOLT
-
375RT-15105-00-00 NOZZLE ASSY.NOZZLE ASSY.
-
3893210-06422-00 O-RINGO-RING
