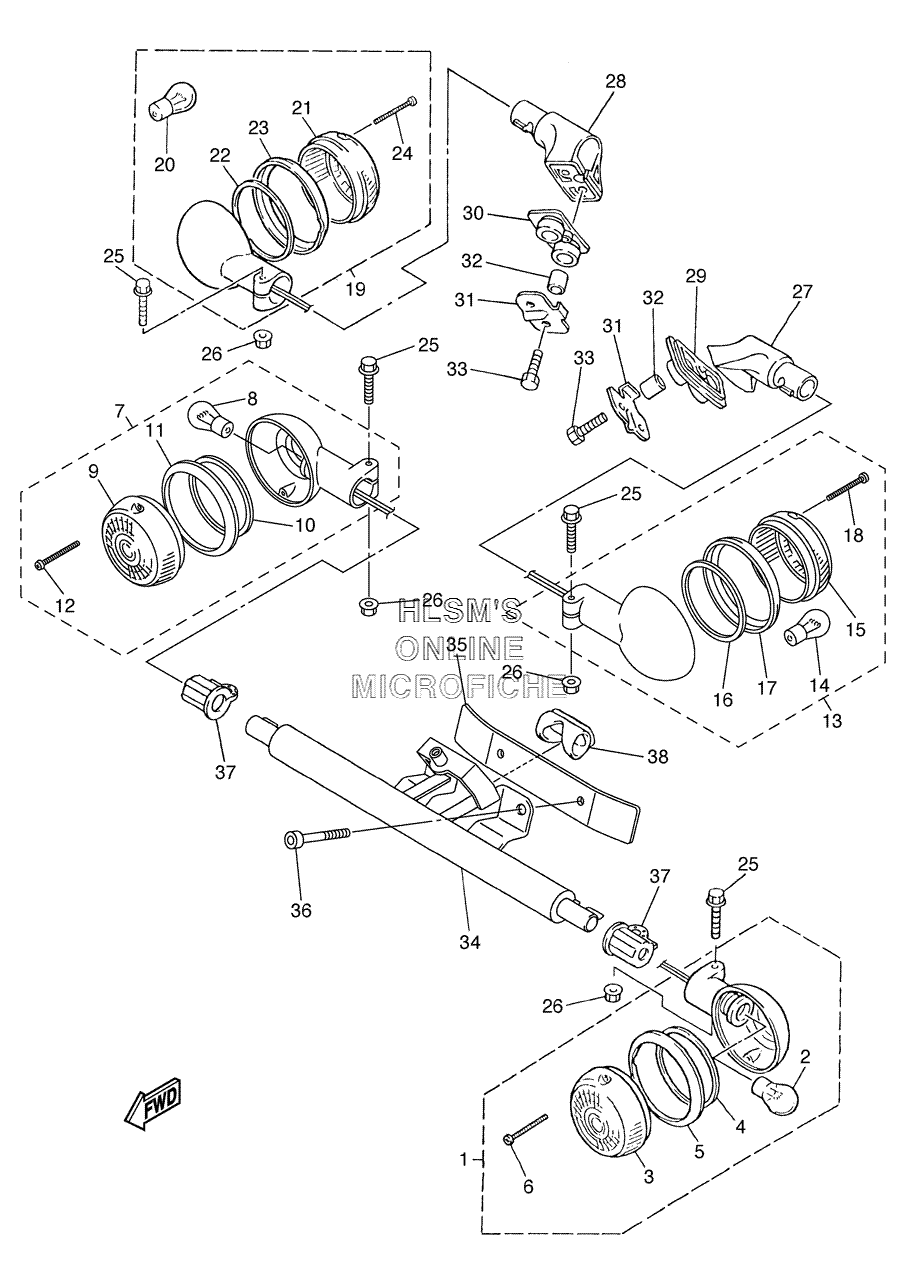

FLASHER LIGHT для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска
-
№АртикулНазвание
-
11D6-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
35VN-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
41D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
51D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
71D6-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85VN-83311-00-00 ...BULB, FLASHER (12V-23/8W)...BULB, FLASHER (12V-23/8W)
-
95VN-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
101D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
111D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1257M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
131D6-83330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
145VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
151D6-83312-20-00 ...LENS, FLASHER...LENS, FLASHER
-
161D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
171D6-83363-10-00 ...LENS, RIM...LENS, RIM
-
1857M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
191D6-83340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
205VN-83311-10-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
211D6-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
221D6-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
231D6-83363-00-00 ...LENS, RIM...LENS, RIM
-
2457M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
2595024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2690179-06017-00 NUTNUT
-
274YE-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
284YE-83328-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
294YE-83314-00-00 BASE, FLASHER 1BASE, FLASHER 1
-
304YE-83324-00-00 BASE, FLASHER 2BASE, FLASHER 2
-
314YE-8334F-00-00 WASHER, SPECIAL 8WASHER, SPECIAL 8
-
3290387-064M9-00 COLLARCOLLAR
-
3397007-06020-00 BOLTBOLT
-
341D6-2317V-00-00 STAY 8STAY 8
-
351D6-2317U-00-00 STAY, 7STAY, 7
-
3691314-08055-00 BOLTBOLT
-
375VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
384NK-83345-00-00 PLUG, BLINDPLUG, BLIND
