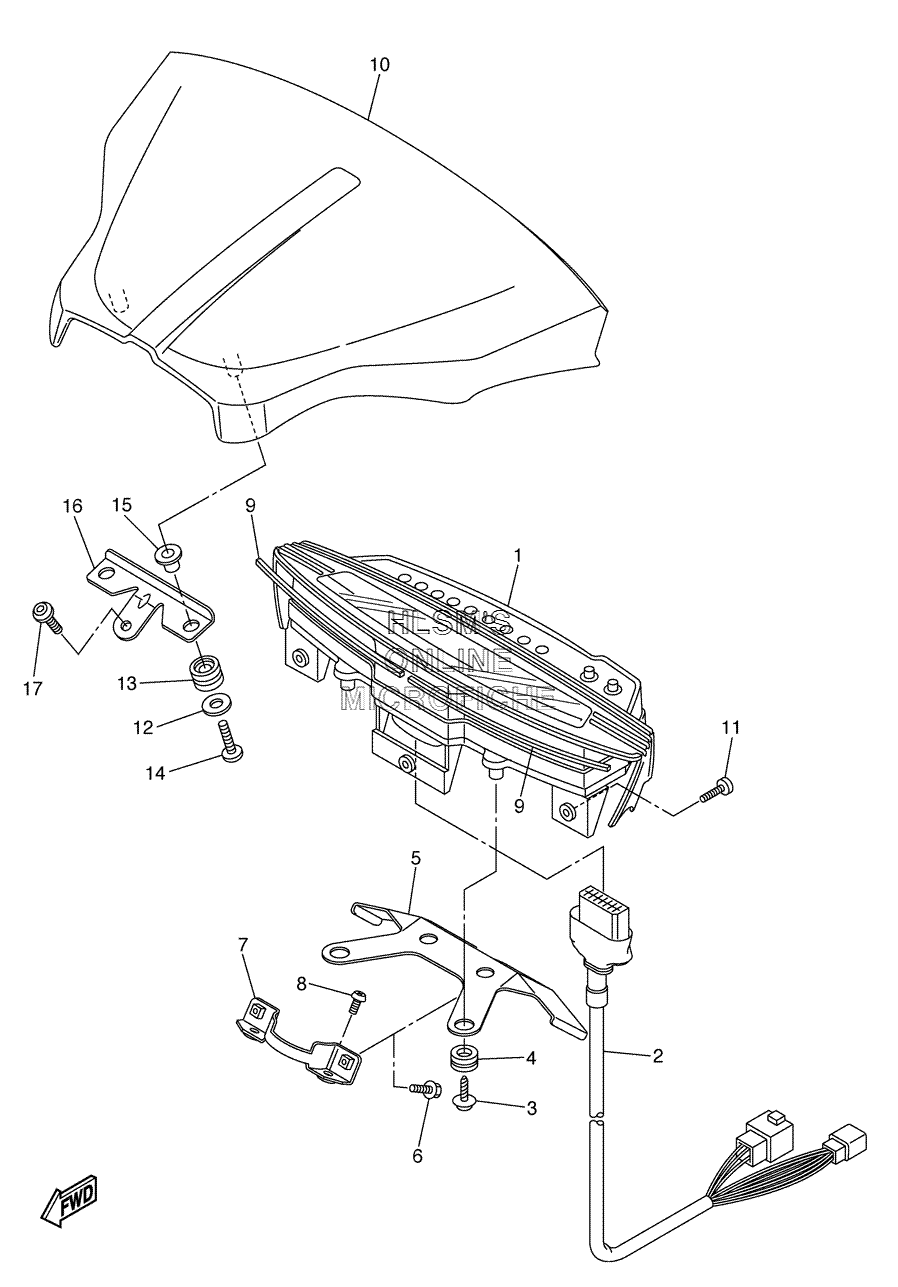

INSTRUMENT PANEL для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска
-
№АртикулНазвание
-
11D6-83500-00-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
21D6-83553-00-00 WIRE, LEADWIRE, LEAD
-
390164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
45J0-83513-00-00 DAMPERDAMPER
-
51D6-8355X-00-00 BRACKET, METER 1BRACKET, METER 1
-
695024-06010-00 BOLT, FLANGEBOLT, FLANGE
-
71D6-83519-00-00 BRACKET, METERBRACKET, METER
-
892017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
91D6-83592-00-00 DAMPERDAMPER
-
101D6-83559-00-00 COVER, METERCOVER, METER
-
1190154-05064-00 SCREW, BINDINGSCREW, BINDING
-
1290201-05032-00 WASHER, PLATEWASHER, PLATE
-
134WM-24339-00-00 GROMMETGROMMET
-
1490154-05052-00 SCREW, BINDINGSCREW, BINDING
-
1590387-050T5-00 COLLARCOLLAR
-
161D6-8354H-00-00 PLATE, BRIDGEPLATE, BRIDGE
-
1790149-06298-00 SCREWSCREW
