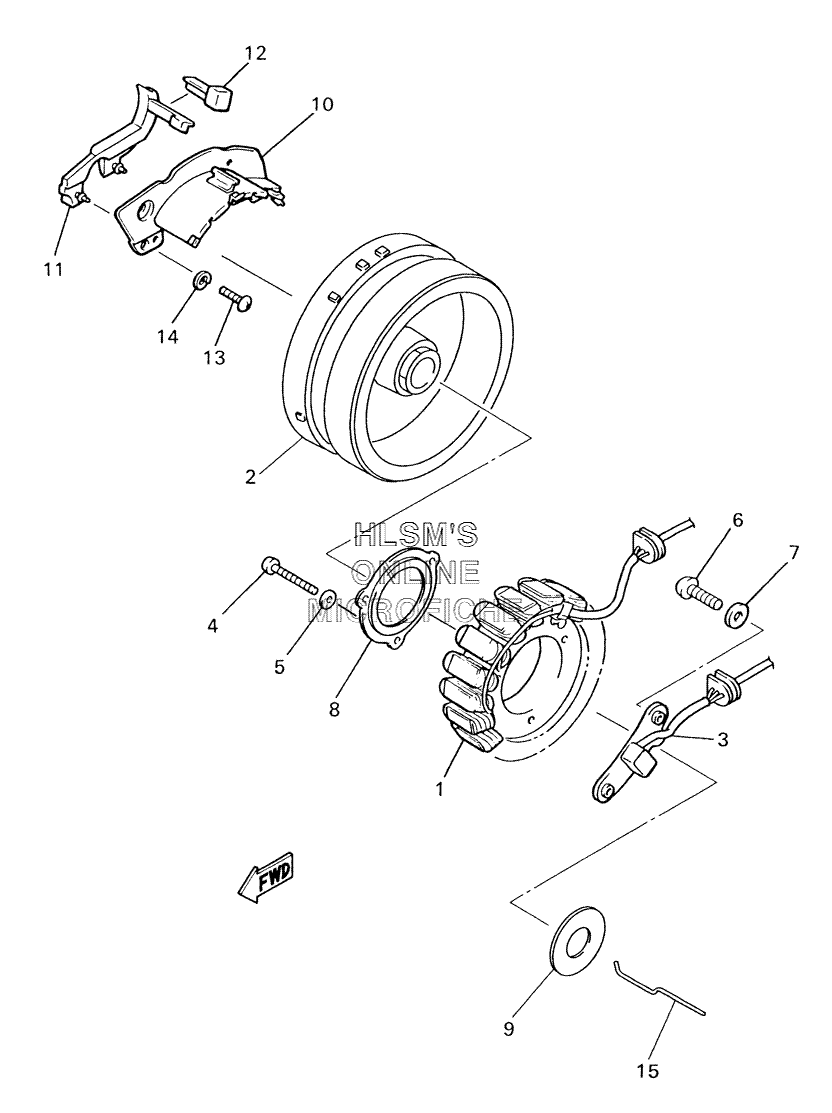

GENERATOR для Yamaha ROYAL STAR TOUR DELUXE - 2006 года выпуска
-
№АртикулНазвание
-
14XY-81410-01-00 STATOR ASSYSTATOR ASSY
-
24XY-81450-00-00 ROTOR ASSYROTOR ASSY
-
31D6-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
498507-06035-00 BOLT, SMALL FLANGEBOLT, SMALL FLANGE
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790201-06674-00 WASHER, PLATEWASHER, PLATE
-
84NK-15113-00-00 PLATEPLATE
-
959J-15191-00-00 PLATEPLATE
-
101FK-15358-00-00 SEPARATOR, OILSEPARATOR, OIL
-
111FK-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
121FK-15494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
1398507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1559J-11455-00-00 SHAFT 1SHAFT 1
