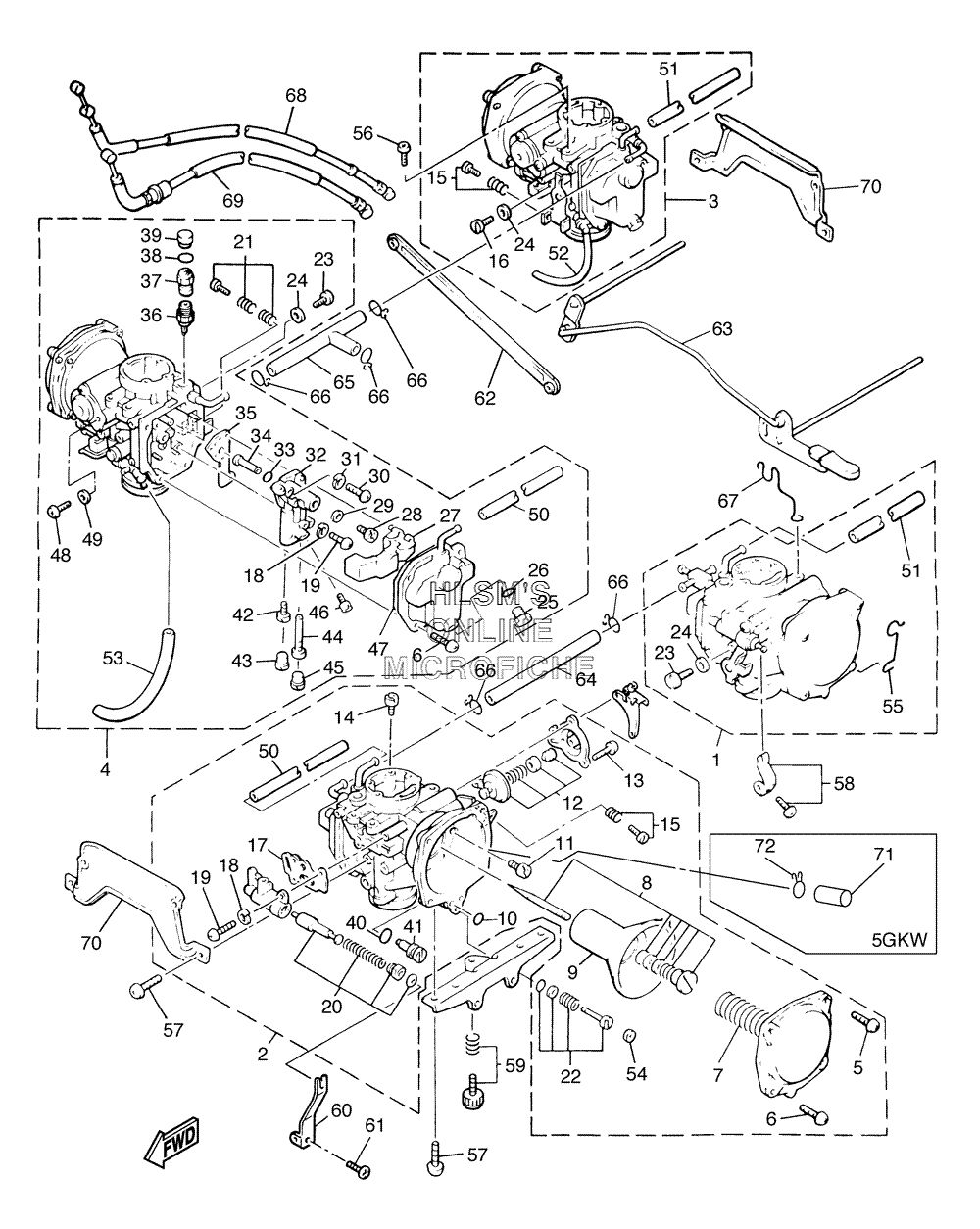

CARBURETOR для Yamaha V-MAX - 2006 года выпуска
-
№АртикулНазвание
-
12WF-14901-02-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
22WF-14902-02-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
32WF-14903-02-00 CARBURETOR ASSY 3CARBURETOR ASSY 3
-
42WF-14904-02-00 CARBURETOR ASSY 4CARBURETOR ASSY 4
-
590157-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
697801-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
71FK-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
82WF-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
91FK-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
1093210-03119-00 ...O-RING...O-RING
-
113G2-14231-34-00 ...JET, PILOT AIR (#170)...JET, PILOT AIR (#170)
-
1226H-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
1397801-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
143G2-14231-20-00 ...JET, MAIN (#100)...JET, MAIN (#100)
-
1531H-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
162F1-14991-00-00 ...SCREW...SCREW
-
173JB-14536-00-00 ...GASKET...GASKET
-
1892901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1998511-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
201GR-1410A-00-00 ...STARTER SET...STARTER SET
-
2126H-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
2212R-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
23341-14991-00-00 ...SCREW...SCREW
-
2426H-14952-22-00 ...WASHER...WASHER
-
2522U-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
2622U-14561-00-00 ...O-RING...O-RING
-
271FK-14985-00-00 ...FLOAT...FLOAT
-
2822U-14565-00-00 ...SCREW...SCREW
-
29137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
3098511-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3192901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
3226H-1411A-00-00 ...BLOCK JET ASSY...BLOCK JET ASSY
-
3322U-14147-00-00 ...O-RING...O-RING
-
3426H-14941-90-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
353JB-14199-00-00 ...GASKET...GASKET
-
361FK-14190-15-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
371J7-14994-00-00 ...NET, FILTER...NET, FILTER
-
381FK-14147-00-00 ...O-RING...O-RING
-
3941R-14118-01-00 ...CAP...CAP
-
40214-14147-00-00 ...O-RING...O-RING
-
412L1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
424G0-14142-37-00 ...JET, PILOT (#37.5)...JET, PILOT (#37.5)
-
4322V-14968-00-00 ...CAP...CAP
-
4426H-1414G-00-00 ...PIPE, MAIN BREED...PIPE, MAIN BREED
-
4522U-14968-00-00 ...CAP...CAP
-
463G2-14231-81-00 ...JET, MAIN (#152.5)...JET, MAIN (#152.5)
-
4722V-14147-00-00 ...O-RING...O-RING
-
4898511-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4992901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
501GR-14197-01-00 ...PIPE...PIPE
-
511FK-14197-01-00 ...HOSE...HOSE
-
5241R-14193-00-00 ...HOSE...HOSE
-
5341U-14193-00-00 ...HOSE...HOSE
-
543F9-14118-00-00 ...CAP...CAP
-
551JH-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
5697801-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5797801-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5822U-1490M-00-00 STARTER LEVER SET, 2STARTER LEVER SET, 2
-
5926H-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
601FK-14905-00-00 LEVER, STARTERLEVER, STARTER
-
6111H-14991-00-00 SCREWSCREW
-
6226H-14504-00-00 ROD SETROD SET
-
631FK-1490L-00-00 STARTER LEVER SET, 1STARTER LEVER SET, 1
-
6431H-14987-00-00 HOSEHOSE
-
6526H-14987-00-00 HOSEHOSE
-
6690467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
6726H-14139-00-00 CLIP, PIPECLIP, PIPE
-
681FK-2631J-00-00 CABLE, THROTTLE 4CABLE, THROTTLE 4
-
691FK-26313-01-00 CABLE, THROTTLE 3CABLE, THROTTLE 3
-
7026H-14291-00-00 BRACKET 1BRACKET 1
-
715GK-1491A-00-00 CAPCAP
-
7255X-14937-00-00 CLIPCLIP
