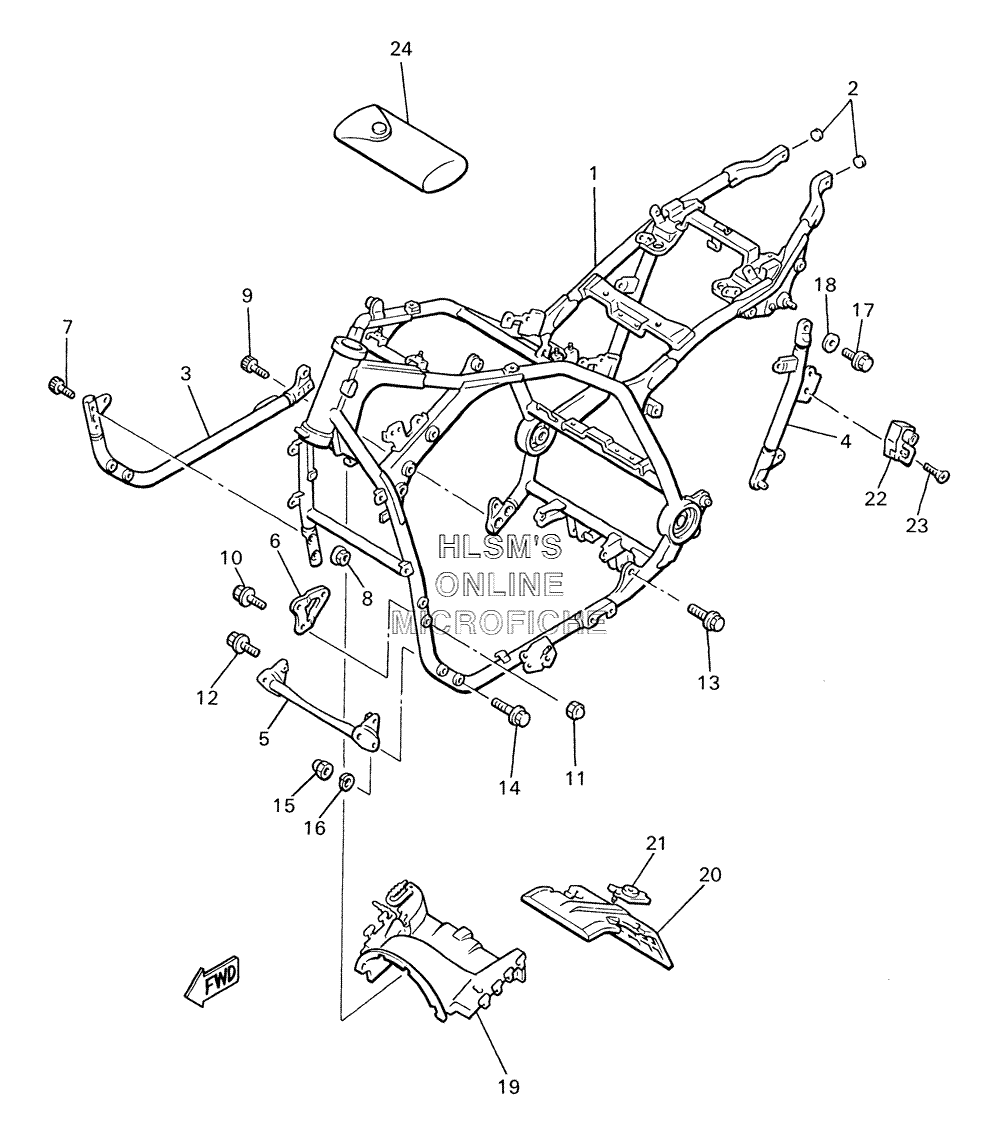

FRAME для Yamaha V-MAX - 2006 года выпуска
-
№АртикулНазвание
-
12EN-21110-02-P0 FRAME COMP. (MATT BLACK)FRAME COMP. (MATT BLACK)
-
21AA-2143A-00-00 CAPCAP
-
31FK-21140-00-P0 DOWN TUBE COMP. (MATT BLACK)DOWN TUBE COMP. (MATT BLACK)
-
43UF-21105-00-P0 BACK STAY SUB COMP. 1 (MATT BLACK)BACK STAY SUB COMP. 1 (MATT BLACK)
-
51FK-2141V-10-00 CROSS BAR COMPLETECROSS BAR COMPLETE
-
61FK-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
790110-10161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890179-10247-00 NUTNUT
-
990110-10092-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090105-081A0-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1190176-10033-00 NUT, CROWNNUT, CROWN
-
1290105-10376-00 BOLT, FLANGEBOLT, FLANGE
-
1390105-12252-00 BOLT, FLANGEBOLT, FLANGE
-
1495827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1590176-08040-00 NUT, CROWNNUT, CROWN
-
1692907-08100-00 WASHER, SPRINGWASHER, SPRING
-
1790105-08066-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890201-08326-00 WASHER, PLATEWASHER, PLATE
-
191FK-2117F-01-00 COVERCOVER
-
201FK-2117M-00-00 COVER 2COVER 2
-
211FK-2117N-01-00 COVER 3COVER 3
-
224R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
2390149-06154-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
241FK-28100-01-00 TOOL KITTOOL KIT
