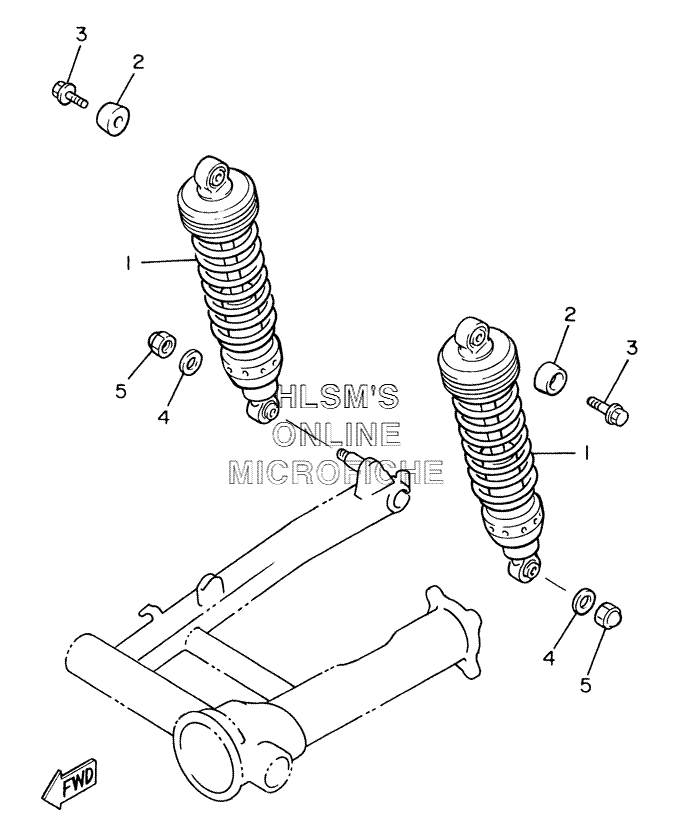

SUSPENSION - REAR SHOCK ABSORBER для Yamaha V-MAX - 2006 года выпуска
-
№АртикулНазвание
-
13JP-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
242X-22243-00-00 WASHER 1WASHER 1
-
395024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490201-100A1-00 WASHER, PLATEWASHER, PLATE
-
590176-10073-00 NUT, CROWNNUT, CROWN
