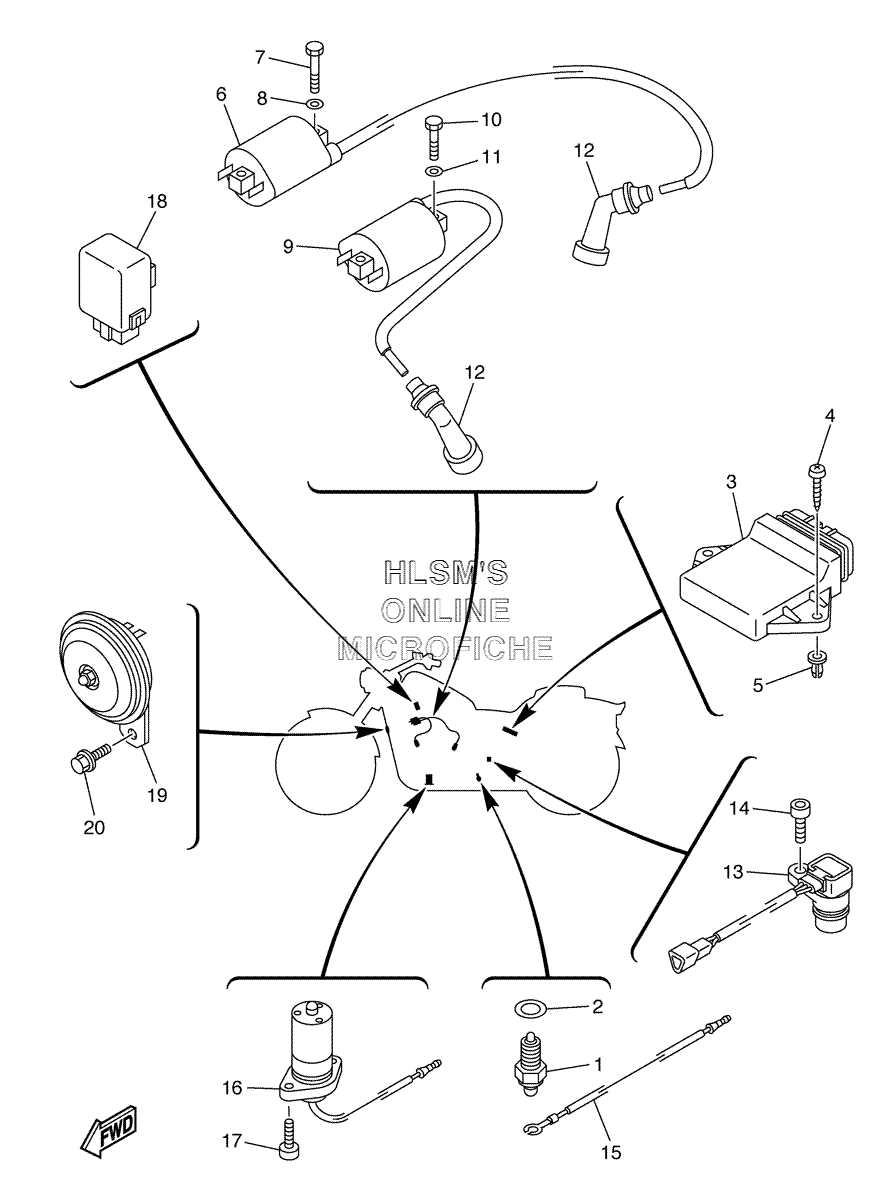

ELECTRICAL для Yamaha V STAR 1100 CLASSIC - 2006 года выпуска
-
№АртикулНазвание
-
14KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
290430-10148-00 GASKETGASKET
-
35KS-82305-30-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
497707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
590338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
65EL-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
797007-05020-00 BOLTBOLT
-
892907-05600-00 WASHER, PLATEWASHER, PLATE
-
95EL-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1097007-05020-00 BOLTBOLT
-
1192907-05600-00 WASHER, PLATEWASHER, PLATE
-
125EL-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
135EL-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1491317-06012-00 BOLTBOLT
-
155EL-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
165EL-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1791317-06016-00 BOLTBOLT
-
185EL-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
195YS-83371-00-00 HORNHORN
-
2090105-082A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
